Terminal Block GE Fanuc IC694TBS132

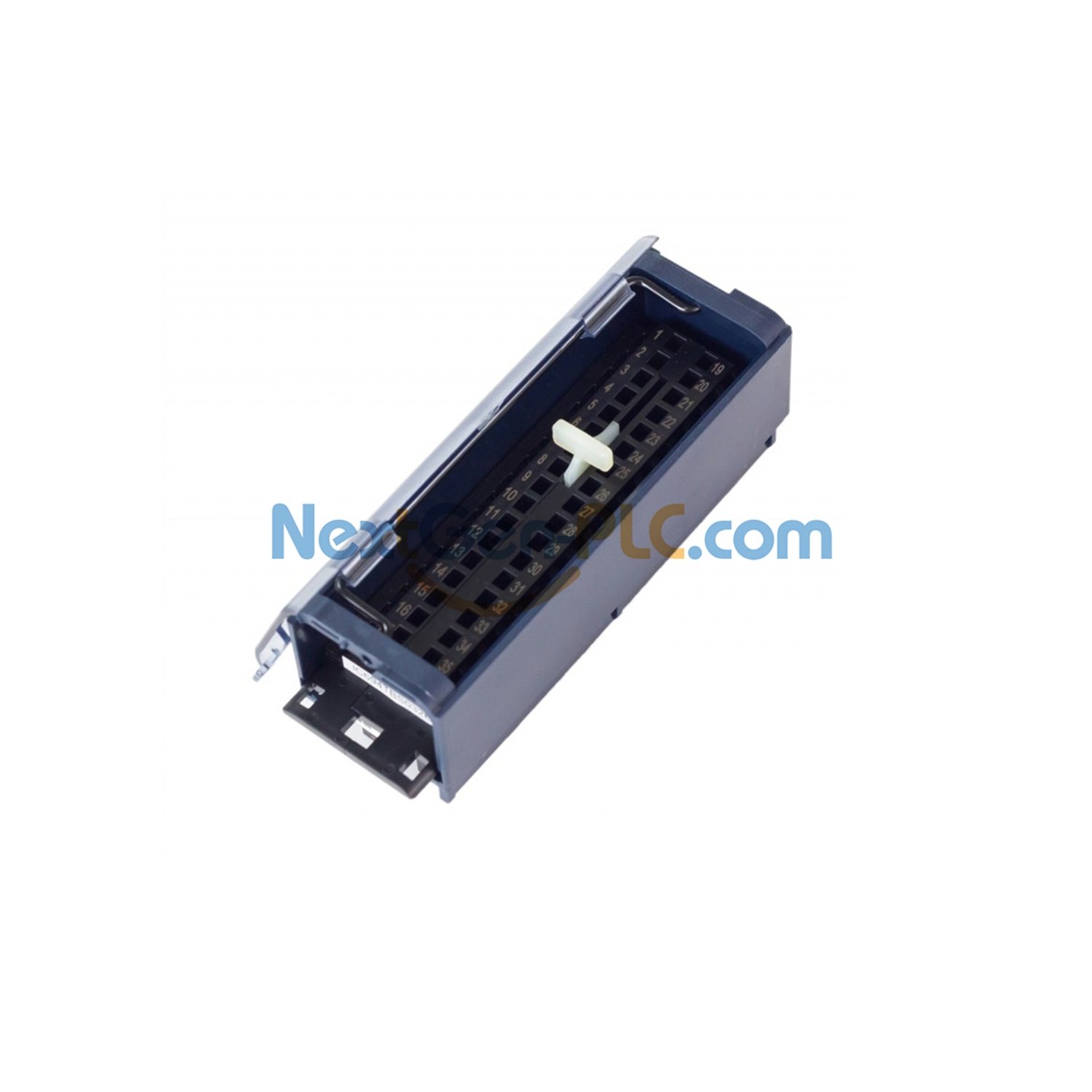

GE Fanuc IC694TBS132 RX3i Extended Spring-Style Terminal Block

Product Overview

The IC694TBS132 is an extended spring-style terminal block for RX3i PACSystems.

It features 36 pins for field wiring connections.

The block supports wire gauges from 14–28 AWG.

Wire strip length is 0.310 inches.

The extended outer cover depth is 13 mm to accommodate larger wires.

Compact design saves panel space and allows easy installation.

The terminal door protects connections from accidental contact.

Compatible with RX3i mid-range controllers and industrial automation modules.

Technical Specifications

Brand: GE Fanuc

Series: RX3i PACSystem

Part Number: IC694TBS132

Product Type: Extended Spring-Style Terminal Block

Number of Pins: 36

Wire Gauge: 14–28 AWG

Wire Strip Length: 0.310 inches

Outer Cover Depth: 13 mm
