Series 90-70 Module GE Fanuc IC697MDL740

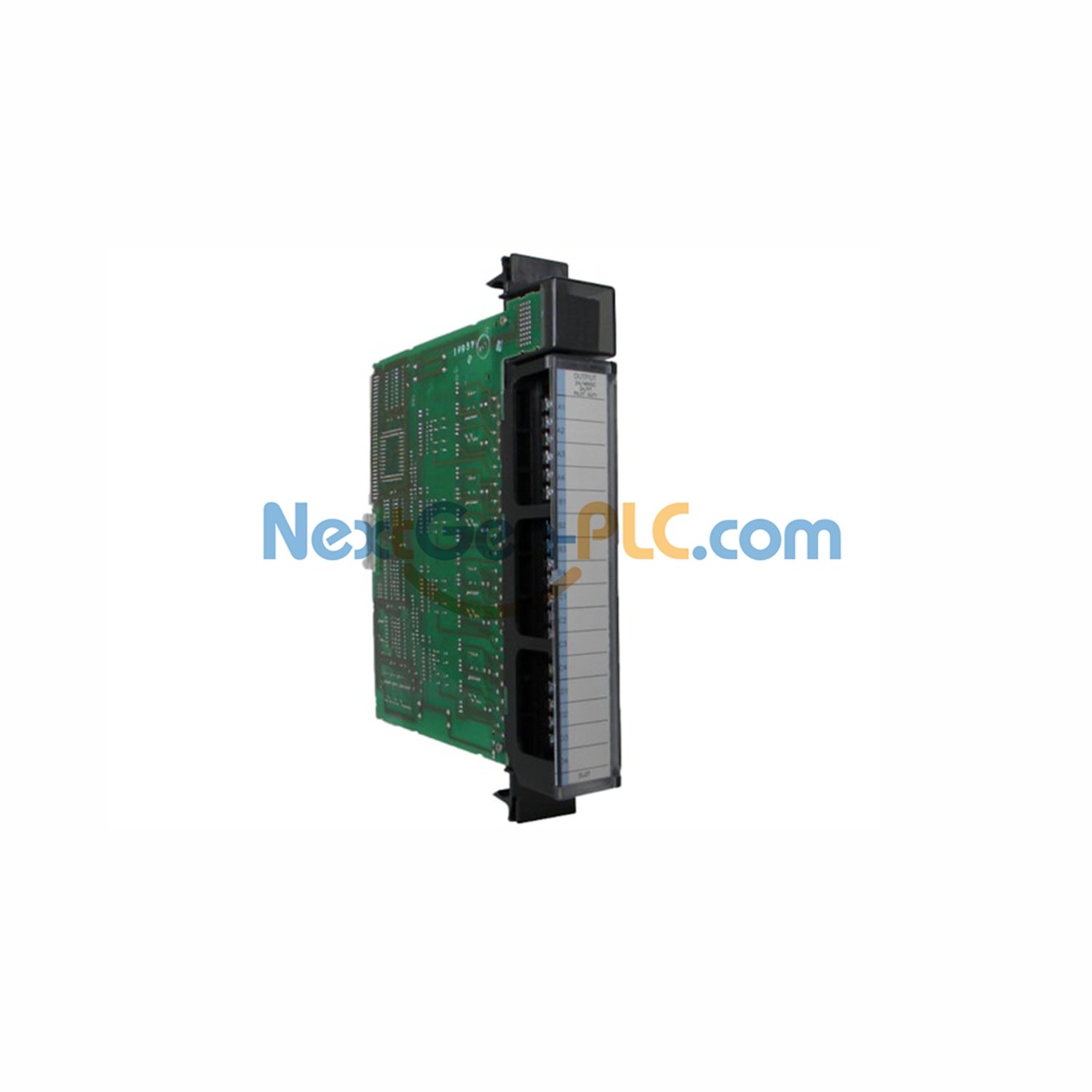

GE Fanuc IC697MDL740 Series 90-70 Discrete Output Module with 16 Outputs

Technical Specifications

Rated Voltage: 24 to 48 Volts DC

Output Current: 2 Amps per point, 4 Amps per group

Output Voltage Range: 20 to 60 Volts DC

Required Current: 0.15 Amps

Number of Outputs: 16

Isolation Voltage: 1500 Volts

Maximum Inrush Current: 20 Amps for 20 milliseconds

Response Time-On: 2 milliseconds

Response Time-Off: 2 milliseconds

Maximum Output Voltage Drop: 0.8 Volts / 0.4 Ohms
