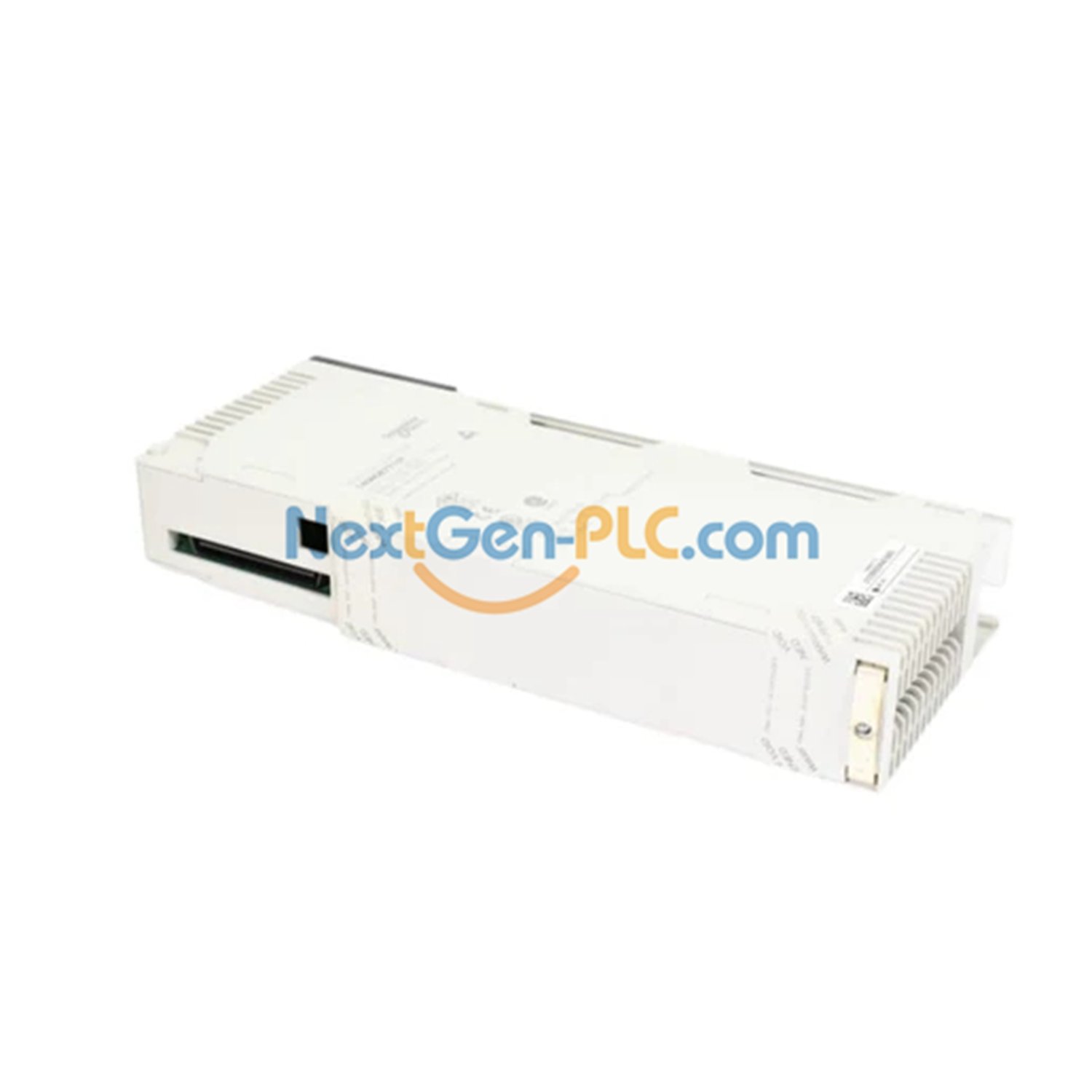

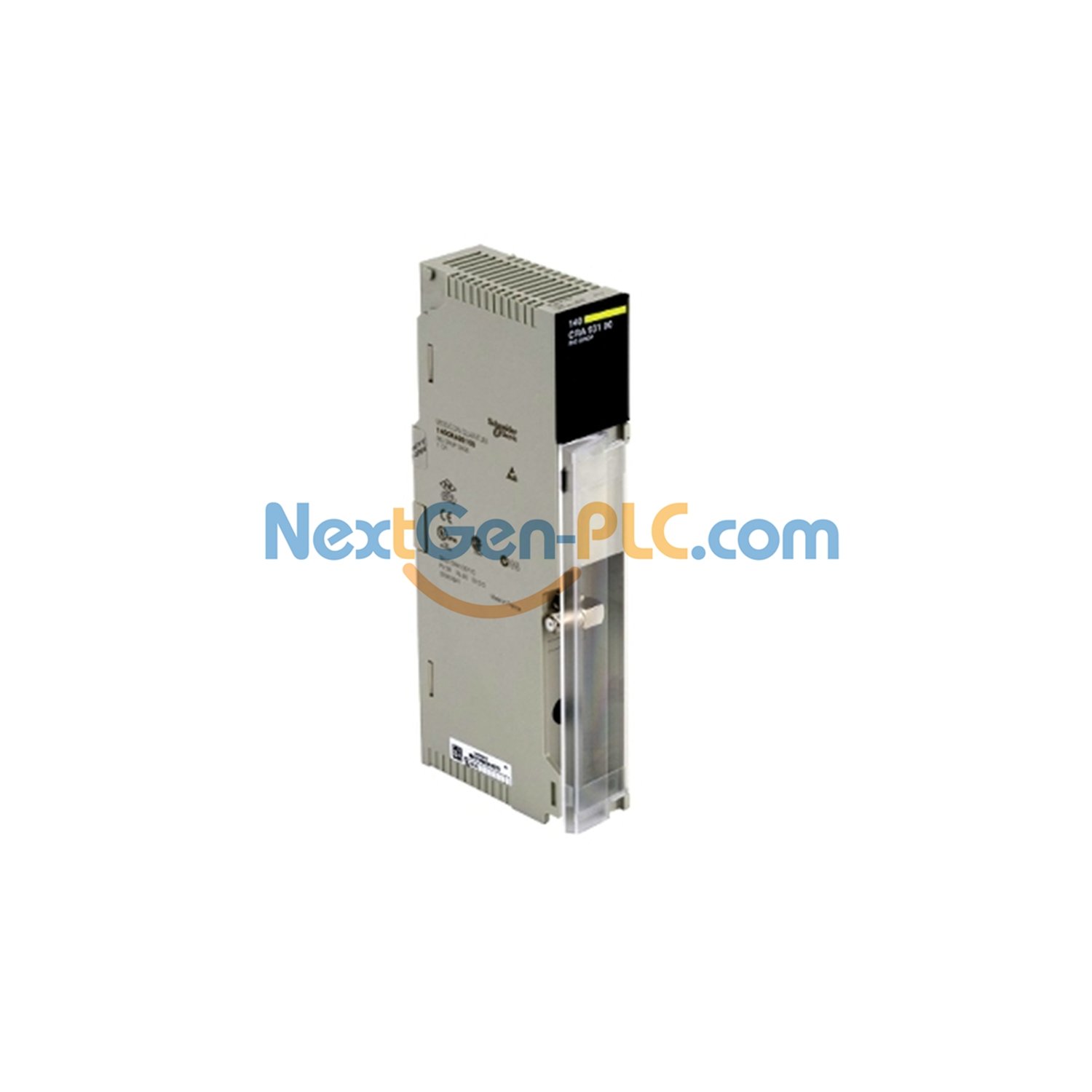

Schneider Electric 140CRA93200 Redundant RIO Drop Adaptor Module

The Schneider Electric 140CRA93200 is a redundant RIO drop adaptor module. It works with the Modicon Quantum automation platform. This unit connects remote I/O stations to the main processor using two cables. The redundant design ensures continuous operation if one cable fails. The 140CRA93200 provides reliable communication for critical industrial applications.

Main Specifications

• Product range: Modicon Quantum automation platform
• Product type: RIO drop adaptor module with redundant cable
• Product compatibility: Quantum systems only
• GTIN: 3595861133785
• Category: US1PC2118155
• Discount schedule: PC21

Communication and Performance

• Transmission rate: 1544 Mbit/s for fast data transfer
• Dynamic range: 35 dB for reliable signal quality
• Supports up to 27 I/O expansion modules per drop
• Uses 75 Ohm coaxial cable for network connection
• Isolation voltage: 500 V DC between coaxial center and ground

Connector and Power Details

• Two elbowed female F-type connectors with redundant cable support
• Power dissipation: 3.8 W for both channels
• Bus current requirement: 750 mA for both channels
• Diagnostics during power up and runtime operation
• Executive checksum and RAM address/data verification

Environmental Specifications

• Operating temperature: 32 to 140 °F (0 to 60 °C)
• Storage temperature: -40 to 185 °F (-40 to 85 °C)
• Relative humidity: 95% without condensation
• Operating altitude: up to 16404 feet (5000 meters)
• Resistance to electrostatic discharge: 4 kV contact, 8 kV air
• Resistance to electromagnetic fields: 9.1 V/m (10 V/m) at 80-1000 MHz

Certifications and Standards

• UL 508 certified for industrial control equipment
• CUL certification for Canadian market compliance
• CSA C22.2 No 142 standard compliance
• IEC 801-2 and IEC 801-3 immunity standards
• Designed for reliable performance in industrial environments

Package Dimensions and Weight

• Package type: PCE (single unit)
• Units per package: 1
• Package height: 1.97 inches (5.000 cm)
• Package width: 6.50 inches (16.500 cm)
• Package length: 12.40 inches (31.500 cm)
• Package weight: 19.224 oz (545.000 g)

Frequently Asked Questions

• What is the 140CRA93200 used for? It connects remote I/O stations to a Quantum PLC with cable redundancy for higher reliability.
• How is this different from the 140CRA93101? This model has two connectors for redundant cables. The 140CRA93101 has one connector for a single cable.
• What cable type does it need? It requires 75 Ohm coaxial cable for the S908 network connection.
• How many I/O modules can it support? It supports up to 27 I/O expansion modules per remote drop.
• What is the operating temperature range? It operates from 0 to 60°C (32 to 140°F).
• Does it work in high humidity areas? Yes, it works at up to 95% humidity without condensation.
• Is this module certified for safety? Yes, it meets UL 508, CUL, and CSA standards.
