RX3i DC Voltage Output Module – GE Fanuc IC694MDL732

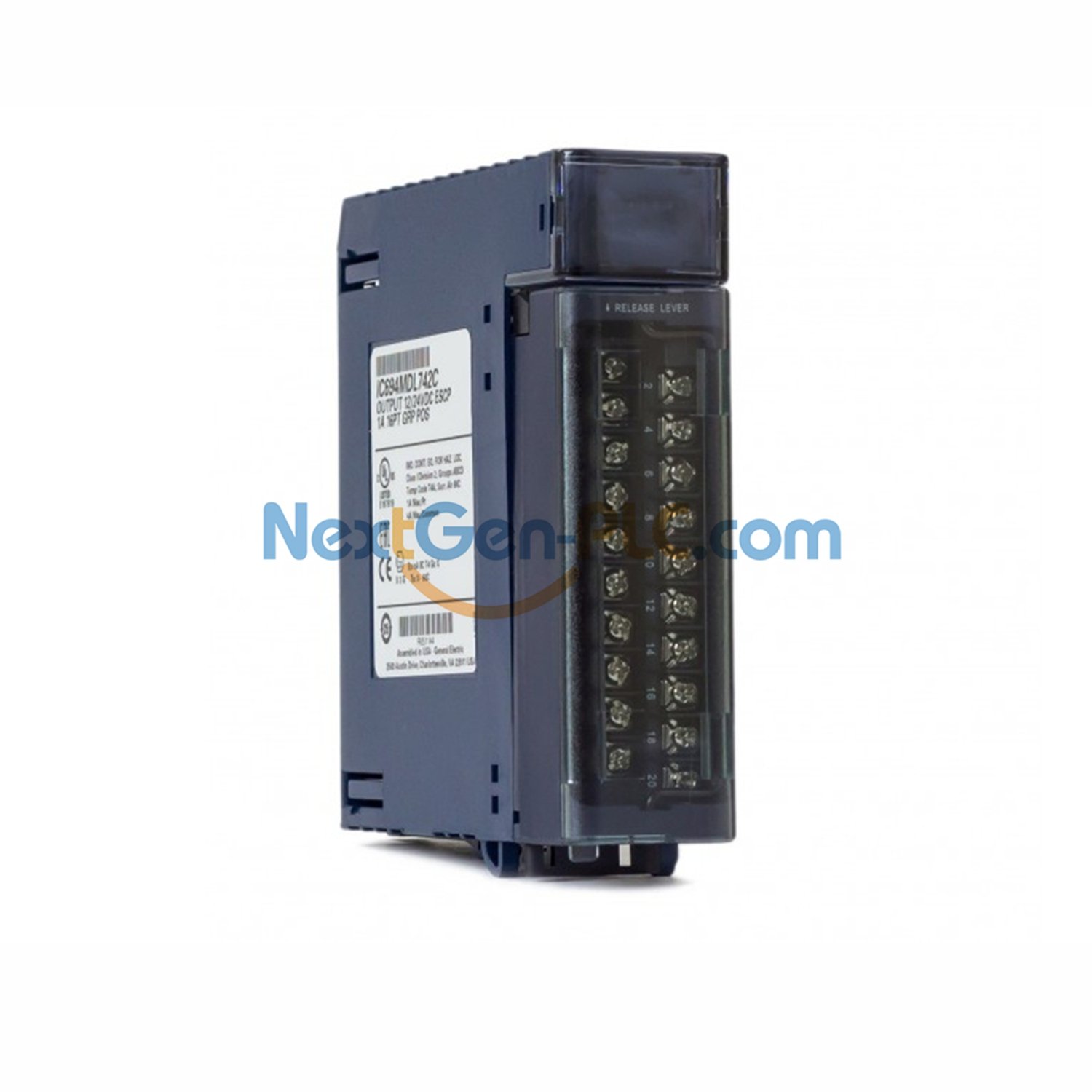

GE Fanuc Automation IC694MDL732 Output Module

The IC694MDL732 is a positive-logic output module from the RX3i PacSystem series. It has 8 outputs and supports hot-swapping.

Key Features

Outputs: 8 outputs in a single group

Voltage: 12-24 VDC rated

Output Current: 0.5 A per point, 2 A max per common

Response Time: 2 ms max

Isolation: 250 V AC continuous, 1500 V AC for 1 min

Inrush Current: 4.78 A for 10 ms

Power Consumption: 50 mA

LED Indicators: Show status of each output

Fuses: Not included

Warranty: 1 year

Overview

This module can source current from the user common or positive bus. It installs in any RX3i rack slot. External power is needed to drive field devices. Its hot-swap feature allows easy installation or removal.

Installation Notes

Connect outputs between the negative bus and the module. Check load current carefully as no fuses are included. The blue label shows that it is a low-voltage module. Hot-swappable design simplifies replacement.
