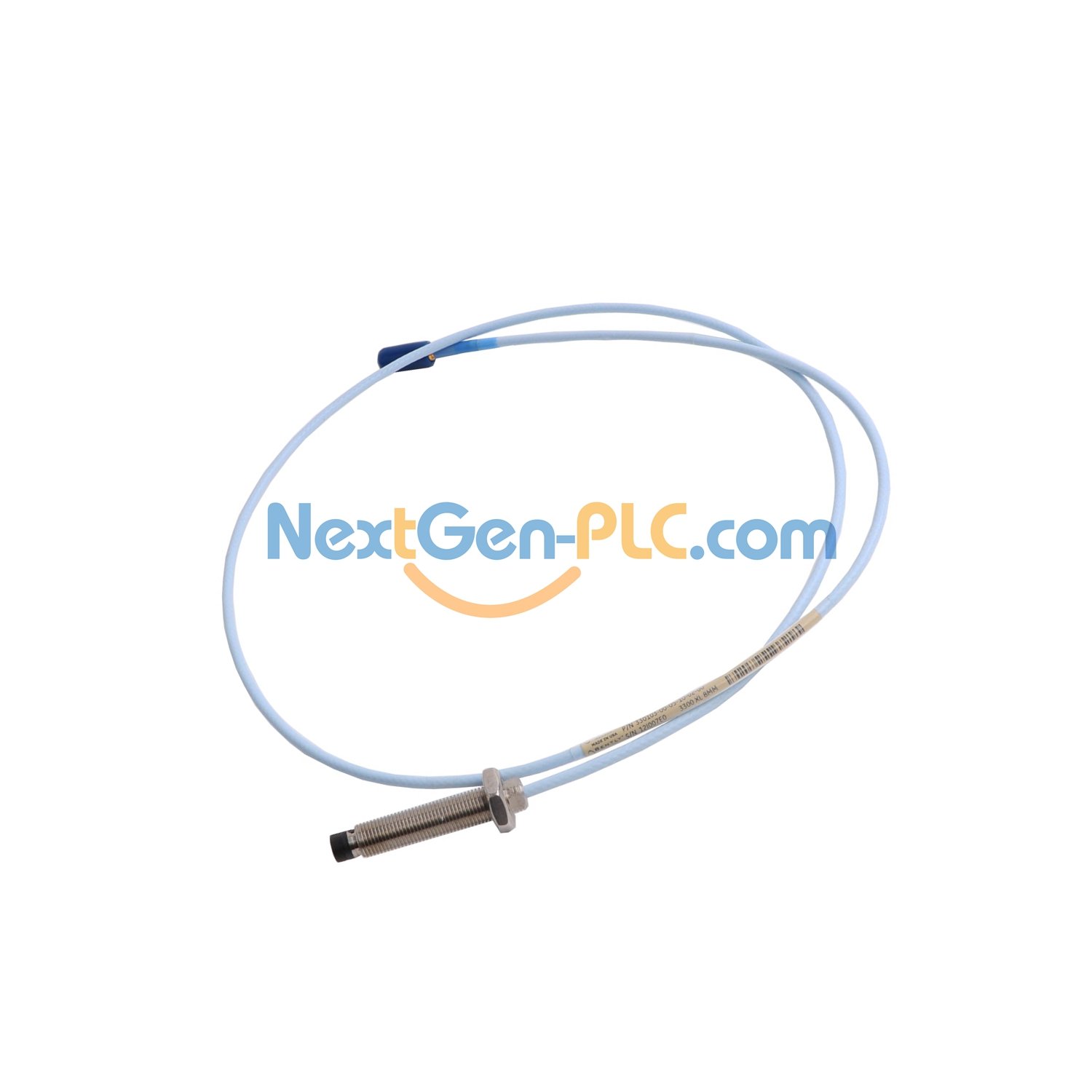

Bently Nevada 330709-000-060-50-02-00 Probe – Long-Range Machine Monitoring
What It Does
This probe checks machine parts like shafts or gears from a distance. Built tough, it works in very hot or cold spots. Great for factories, power plants, and big machines that need long cables.
Key Details
Brand: Bently Nevada (Made in USA)
Model: 330709-000-060-50-02-00
Type: 3300 XL 11mm Proximity Probe
Thread: M16 x 1.5 (no armor)
Lengths:
No threads: 0mm
Case: 60mm (shorter case, easy to fit)
Total: 5m (16.4ft) – works only with 5m Proximitor sensors
Cable: 75Ω triaxial, FEP-insulated (tough material)
Resistance: 7.2 ± 0.8 ohms (5m cable)
Connector: Mini ClickLoc (easy to connect)
Use Tips
Target Size: Flat parts need at least 30.5mm (1.2in) wide. Shafts need at least 152mm (6in) thick.
Temp: Works from -52°C to 177°C (-62°F to 351°F). Avoid temps below -34°C (30°F) to keep it safe.
Install Steps
Tighten Case: Use 63.3 N•m (560 in•lb) force.
Connector: Finger-tight (max 0.565 N•m / 5 in•lb).
Bend: Don’t fold smaller than 25.4mm (1in) radius.
Screw In: Go up to 24mm deep.
What’s in the Box
1x 330709-000-060-50-02-00 probe
1x 5m triaxial cable (with ClickLoc)
1x quick start guide (simple steps)
1x material note (PPS tip, 304 stainless case)
Warranty
1-year warranty covers issues from making. No coverage for damage from wrong use.
Real-World Examples
Big Factories: Checks 160mm shafts 5m away, cuts stops by 30%.
Power Plants: Tracks compressors in 170°C heat with 5m cable.
Pump Stations: Monitors 35mm flat parts, saves 25% repair time.
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
