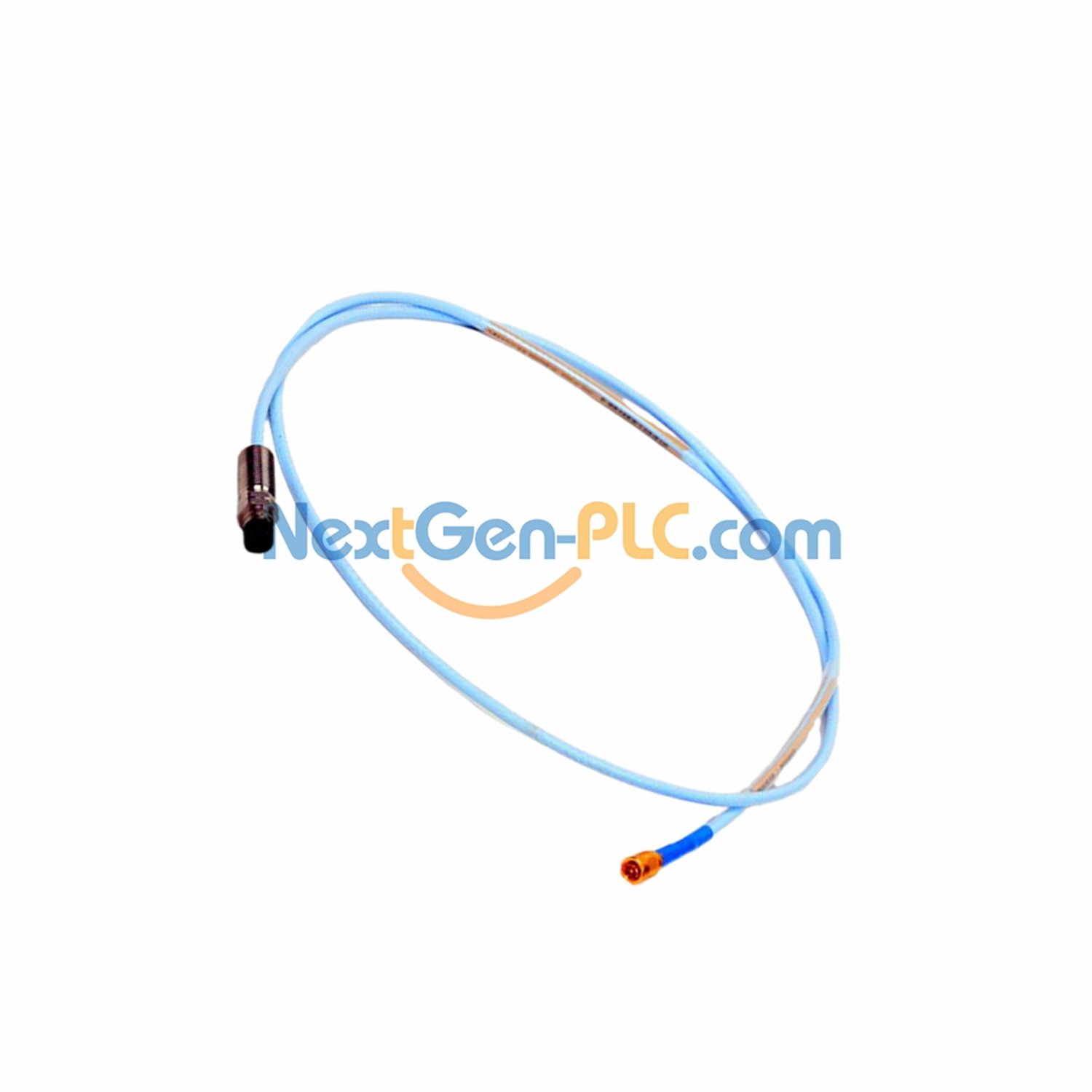

Bently Nevada 3300 XL 8 mm Proximity Probe | Model: 330103-00-11-10-02-CN

What It Is

A small sensor for checking machine vibration. Made with tough plastic and stainless steel, it works well in rough factory areas. Comes with local safety certs.

Model Numbers Explained

330103: Base 8 mm probe (M10×1 thread, no armor)
00: No extra unthreaded part (0 mm)
11: Body length → 110 mm
10: Total length → 1.0 m (3.3 ft)
02: Connector → Small ClickLoc, standard cable
CN: Local safety certs

Key Facts

Measure range: Checks 2 mm (80 mils) – from 0.25 mm to 2.3 mm (10–90 mils)
Best gap: -9 Vdc (~1.27 mm / 50 mils) – best for vibration checks
Resistance: 7.59 ± 0.50 Ω (1.0m probe) – steady signal
Materials: Tough plastic tip + rust-proof stainless steel body
Weight: 323 g/m (11.4 oz) – light but strong
Temp range:
Regular: -52°C to +177°C (-62°F to +350°F)
Extended tip: -52°C to +218°C (-62°F to +425°F)
Cable/connector: -51°C to +260°C (-60°F to +500°F)
Humidity: Stays accurate in 93% humidity (56 days max) – <3% change

How to Install

Thread: M10×1 (tighten up to 15 mm) – fits most machines
Wiring: Use 0.2–1.5 mm² (16–24 AWG) shielded cable. Max 305m (1,000ft) to monitor. Long wires? Check signal graphs.
Seal: Uses a Viton O-ring. Not tested before shipping – ask Bently for tests if needed.

Safety Certs

IA (Safe for spark areas): Class I Zone 0; Class 1 Groups A-D, II E-G, III (with extra parts)
nA/ec (No sparks): Class I Zone 2; Class 1 Division 2 Groups A-D (with safe circuits)
Local certs: CN – meets local rules

What’s Inside

Probe body (110 mm case)
Small ClickLoc connector (standard cable)
User manual (easy setup guide)
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
