New 5mm Proximity Probe Bently Nevada – 330171-00-30-10-02-00

Bently Nevada 5mm Proximity Probe: Precision Vibration Monitoring

Product Overview

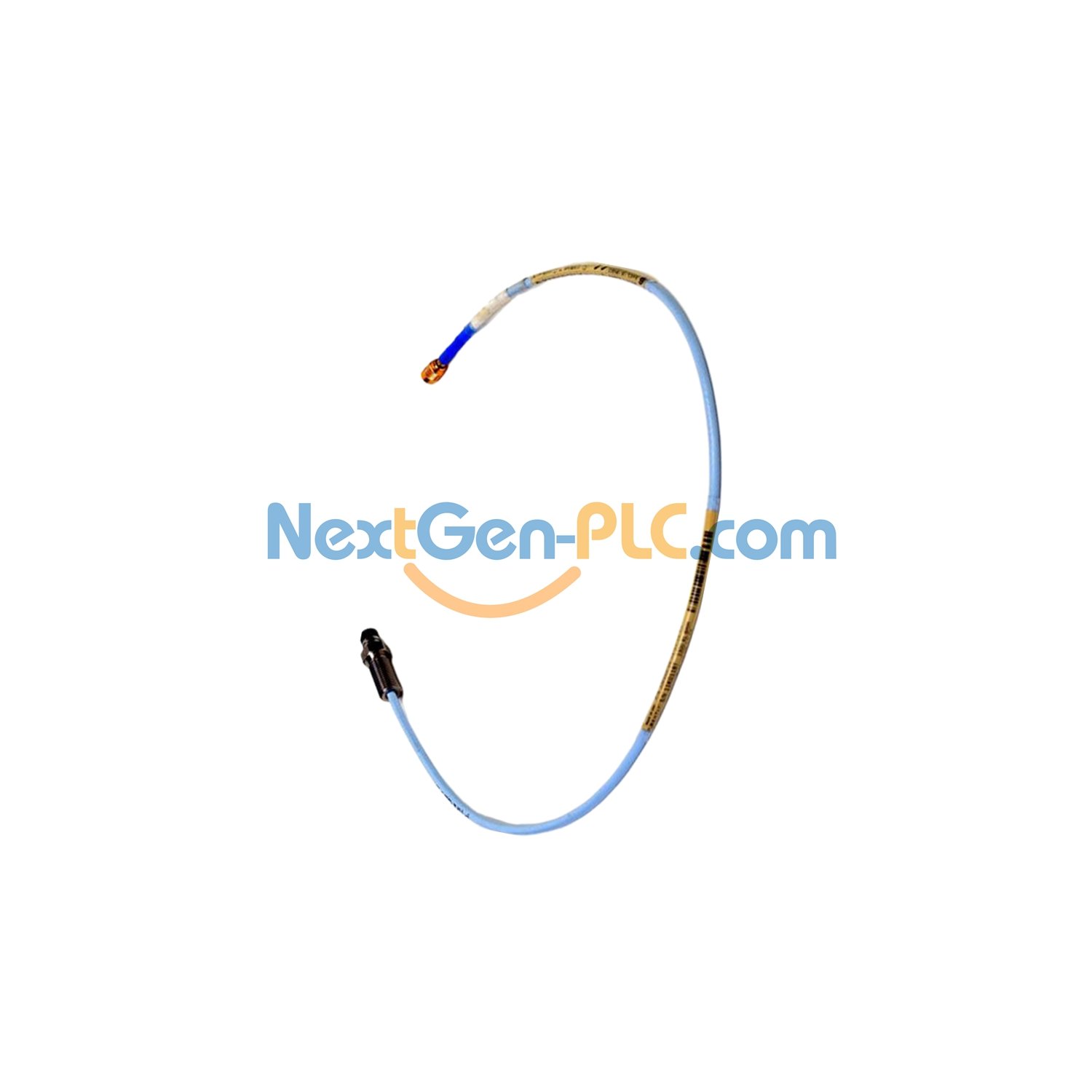

Industrial-grade 330171-00-30-10-02-00 proximity transducer with 5mm sensing tip. Features 1/4-28 UNF threading and operates in extreme conditions from -35°C to +177°C. Ideal for vibration monitoring in turbines, compressors, and rotating machinery.

Key Specifications

• Brand: Bently Nevada
• Full Model: 330171-00-30-10-02-00
• Probe Length: 1.0 meter (3.3 ft)
• Temperature Range: -35°C to +177°C (-31°F to +351°F)
• Power Supply: -17.5 to -26 VDC
• Output Resistance: 50 Ω
• Thread Engagement: Max 0.375 in
• Accuracy: <2mV/V supply sensitivity

Technical Details

Construction: PPS probe tip with 304 stainless steel casing
Cable: 75Ω triaxial FEP insulation
Connector: Miniature coaxial ClickLoc
Torque Specs: Install at 5.1 N·m (45 in-lb) – Max 7.3 N·m (65 in-lb)
Bend Radius: Minimum 25.4mm (1.0 in)

Installation Notes

Use #3 or larger tap drill for 1/4-28 mounting holes. Ensure proper thread engagement not exceeding 0.375 in. Avoid exposure below -34°C to prevent seal damage.

Compatibility & Certifications

Works with Bently Nevada 3300 monitoring systems. Certificate of Origin (COO) available upon request. Agency approvals not required.

Package Contents

• 1x Proximity probe
• Product documentation
• Optional COO (when selected)

Warranty

1-year manufacturer warranty against defects

Industrial Applications

• Gas turbine vibration monitoring
• Compressor bearing health analysis
• Power generation equipment diagnostics
• Rotating machinery protection systems

Download PDF file here:3300 5 mm Transducer System Datasheet – 172036
