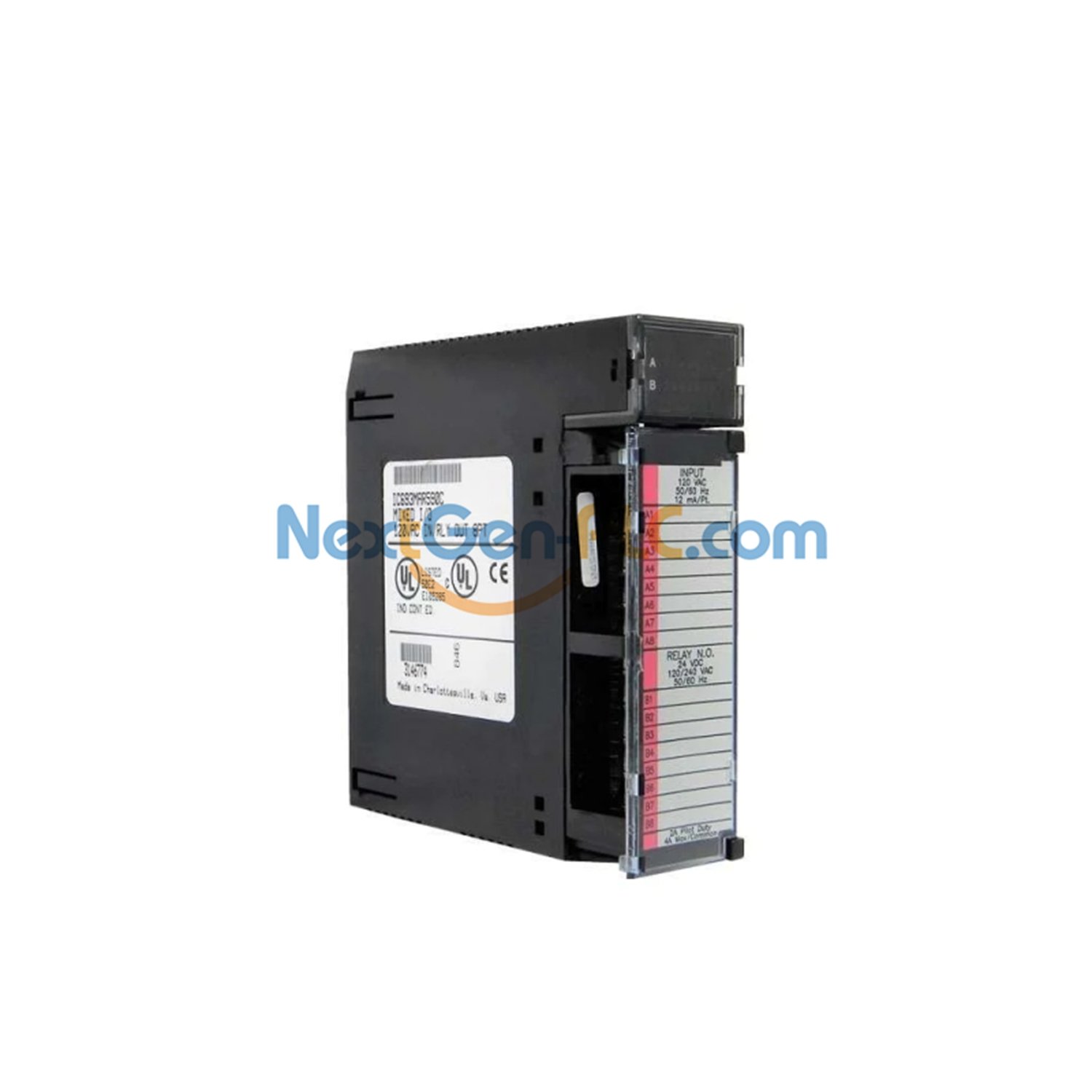

IC693MAR590 GE Fanuc Output Module

GE Fanuc IC693MAR590 Series 90-30 Input/Relay Output Module

Main Highlights

Engineers value the IC693MAR590 because it simplifies system integration. With LED indicators for quick diagnostics, flexible baseplate support, and protective design, it ensures smooth operation in industrial environments.

• Input voltage: 0–132 VAC
• Output voltage: 5–30 VDC / 5–250 VAC
• Isolation: 1500 V RMS (field to logic), 500 V RMS (inputs)
• Load capacity: Up to 2 Amps, 5 Amps inrush
• Response time: 15 ms typical

Detailed Specifications

General Information

• Brand: GE Fanuc
• Series: Series 90-30
• Part number: IC693MAR590
• Channels: 8 inputs / 8 outputs

Electrical Ratings

• Rated input voltage: 0–132 Volts AC
• Rated output voltage: 5–30 VDC / 5–250 VAC
• On-state voltage: 74–132 VAC
• Off-state voltage: 0–20 VAC

Performance

• On-state current: 6 mA
• Off-state current: 2.2 mA (30 ms)
• Response time: 30 ms ON / 45 ms OFF

Power & Isolation

• Isolation: 1500 V RMS field–logic / 500 V RMS inputs
• Consumption: 80 mA at 5 VDC, 70 mA at 24 VDC relay

Applications

The IC693MAR590 module is commonly used for controlling switches, push buttons, pilot lights, and limit switches. Its mix of inputs and relay outputs makes it suitable for machine control, process automation, and industrial relay logic applications.

FAQ

Q: How many channels are available on the IC693MAR590?
A: It includes 8 inputs and 8 relay outputs for flexible control.

Q: What is the maximum supported load?
A: Each relay output supports up to 2 Amps with 5 Amps inrush current.

Q: What kind of electrical isolation is provided?
A: 1500 V RMS between field and logic, and 500 V RMS between inputs.

Q: Is this module compatible with different baseplates?
A: Yes, it supports both 5-slot and 10-slot baseplates within the Series 90-30 system.

Q: Do you provide stock and shipping services?
A: Yes, we have brand-new original modules in stock, ship within 5 days via DHL, and support 30-day returns.
