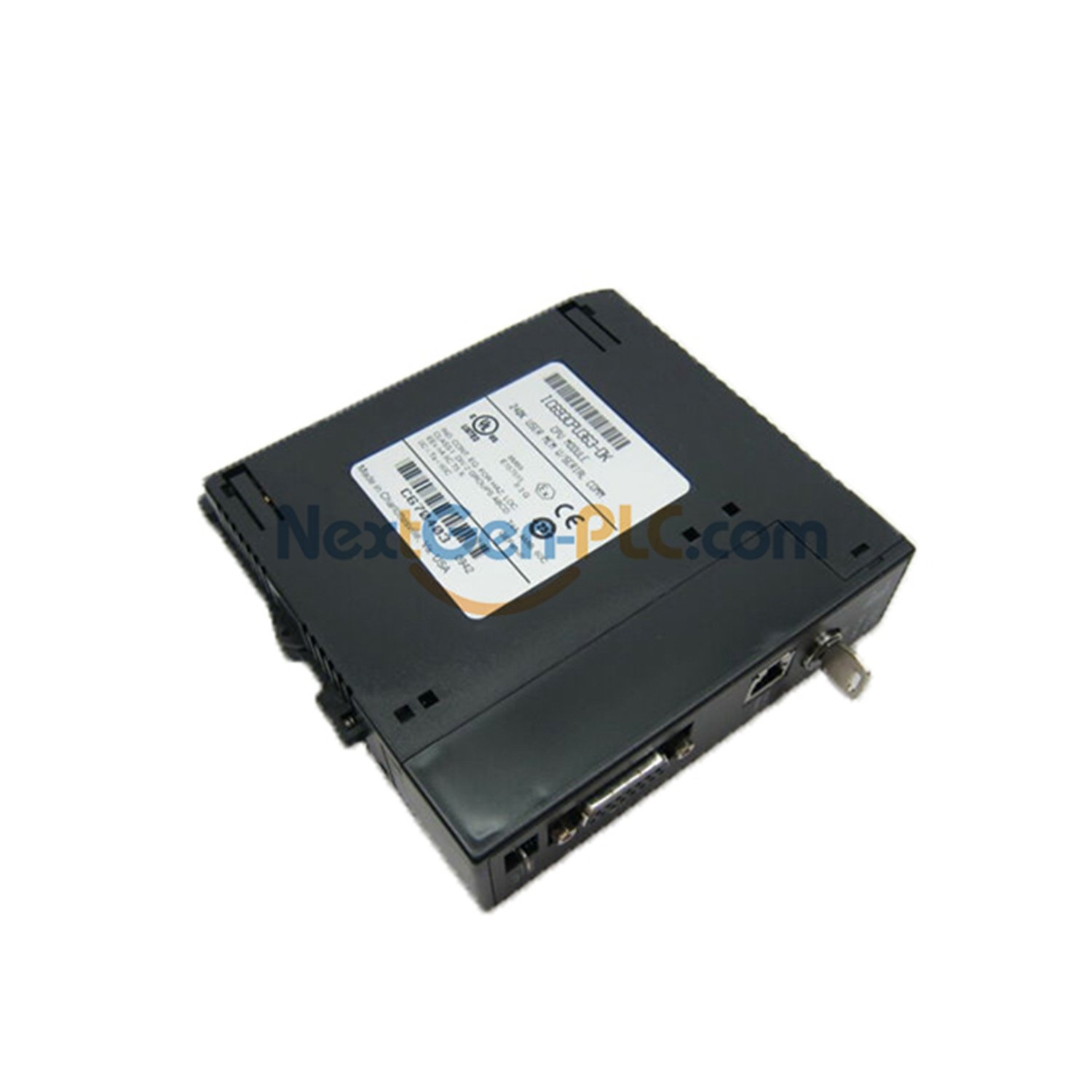

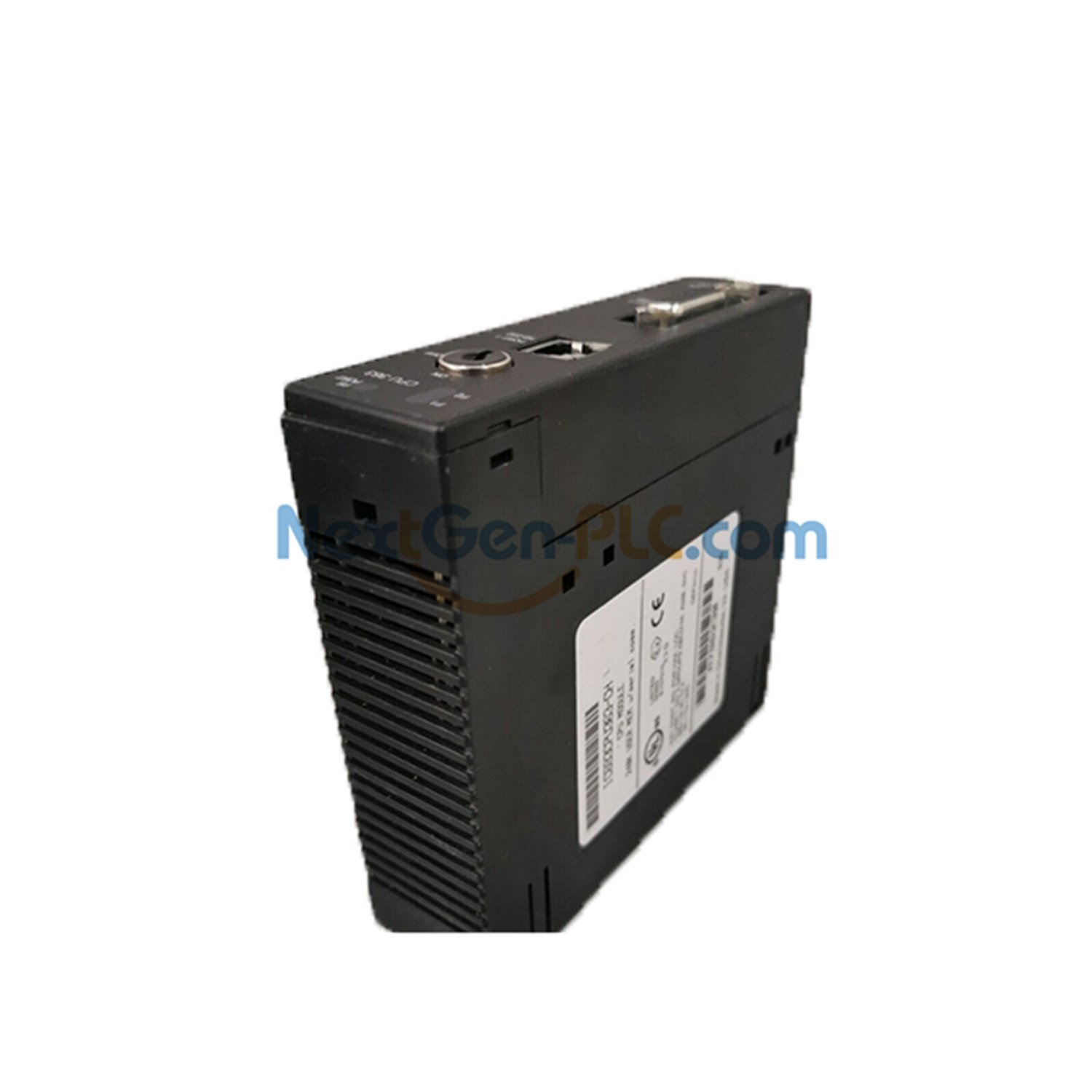

GE Fanuc IC693CPU363 Series 90-30 CPU Module — PLC Processor
Product Overview
The GE Fanuc IC693CPU363 is a CPU for Series 90-30 PLCs.
It has an 80386EX processor with 25 MHz clock speed.
Scan rate is 0.22 ms per 1K of Boolean logic.
The module includes 240K Bytes of user memory.
It features three serial ports supporting RS232 and RS485 standards.
Main Specifications
| Parameter | Value |
|---|---|
| Processor | 80386EX, 25 MHz |
| User Memory | 240K Bytes |
| Scan Rate | 0.22 ms per 1K logic |
| Current Draw | 890 mA at +5 VDC |
| I/O Capacity | 2048 inputs, 2048 outputs |
| Serial Ports | 3 (RS232 / RS485) |
| Register Memory | 240 KB |
| Timers and Counters | More than 2000 |
| Operating Temp | 0 to 60 °C (32 to 140 °F) |
| Storage Temp | -40 to 85 °C (-40 to 185 °F) |
Additional Details
Brand: GE Fanuc
Series: Series 90-30
Model: IC693CPU363
Memory Type: RAM and Flash
Slots Supported: Up to 8 baseplates
