IC200NDD010 GE Fanuc IC200NDR010

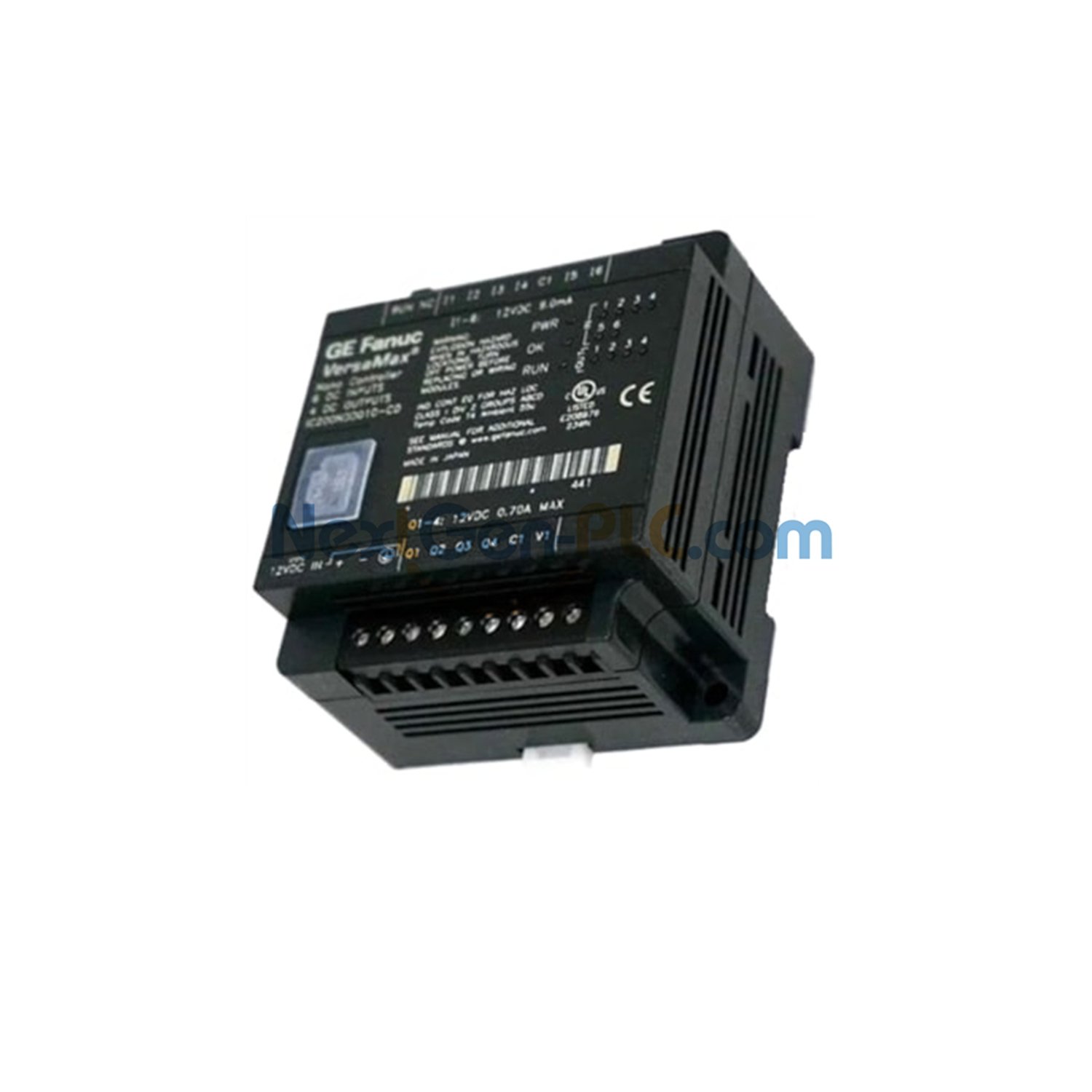

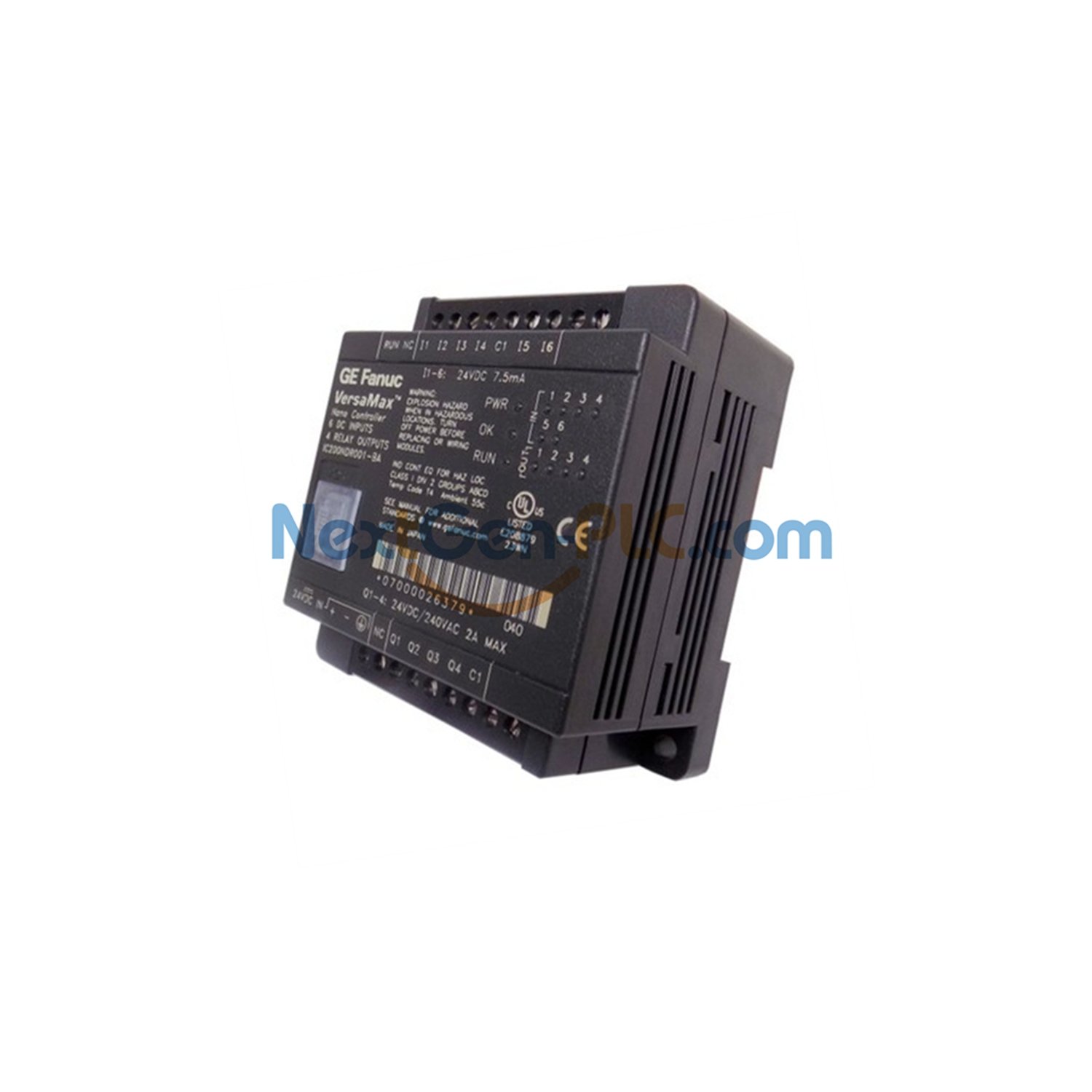

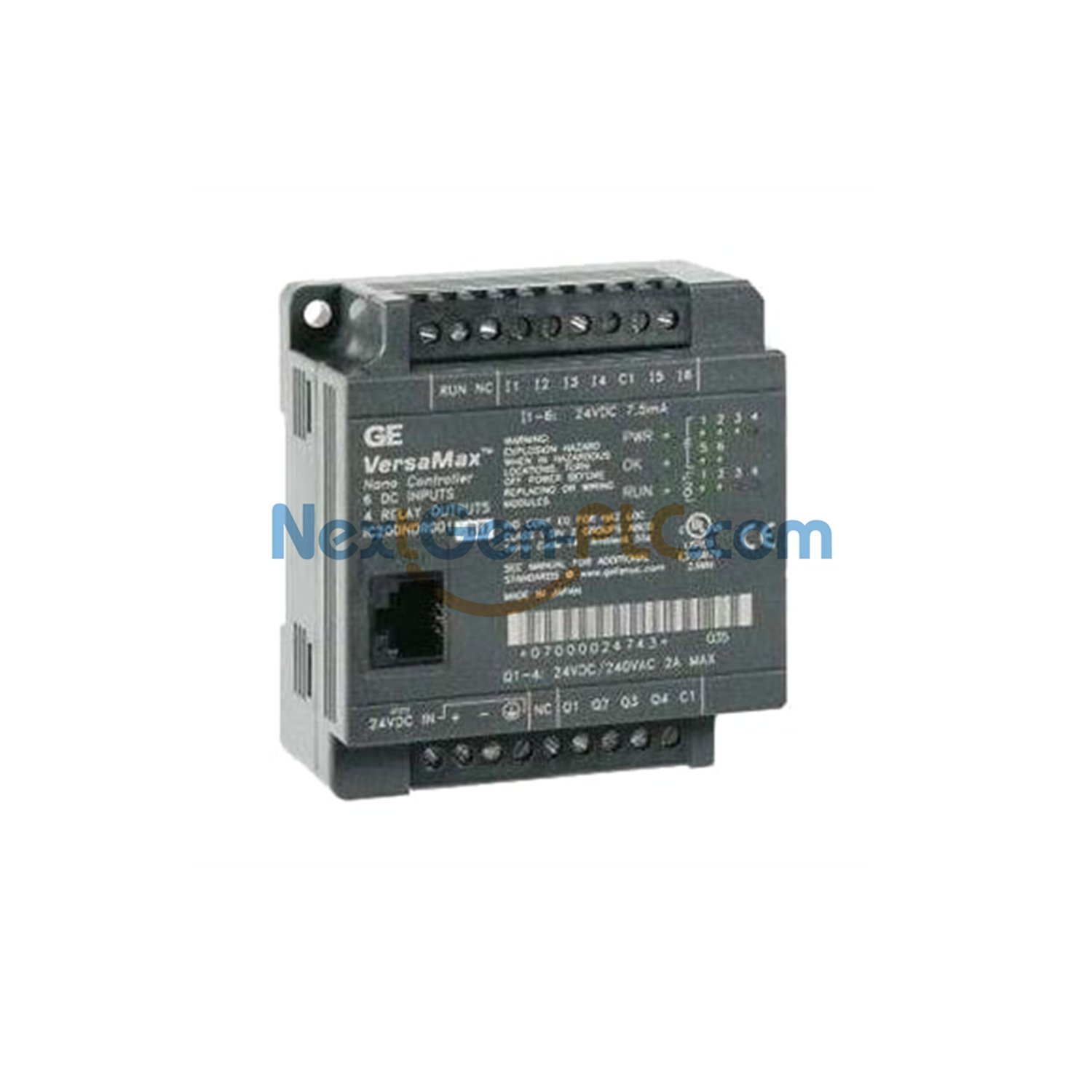

GE Fanuc IC200NDR010 Versamax Nano PLC

The IC200NDR010 is a 10-point PLC from GE Fanuc. This Versamax series device is perfect for small control tasks. It needs 12 Volts DC power to run. It uses only 9 milliamps of current. This makes it an efficient choice.

Key Features

This compact PLC packs useful features for automation:

• Power Supply: 12 VDC
• Operating Current: 9 mA
• Discrete Inputs: 6
• Discrete Outputs: 4
• Total Local I/O: 10 points
• Max System I/O: 2048 points
• Serial Ports: 2 (RS-232 and RS-485)
• Operating Temp: 0 to 55°C
• Safety Ratings: CE, cULus listed

Power and Outputs

The IC200NDR010 runs on a low 12 VDC supply. Its outputs are open by default. They can control devices from 5 to 30 VDC or 5 to 250 VAC. This gives you flexible control options.

Communication and Expansion

This module has two serial ports. You get both RS-232 and RS-485 for network links. It can handle high-speed data. Even though it’s small, it can control a large system with up to 2048 I/O points.

Programming and Operation

You can program the IC200NDR010 with ladder logic or function charts. It has a real-time clock with a backup battery. This battery also protects the RAM. The front panel has clear LED lights for power, run status, and all I/O points.

Frequently Asked Questions

What is the voltage for this PLC?

The IC200NDR010 requires a 12 VDC power source.

How many inputs and outputs does it have?

It provides 6 discrete inputs and 4 discrete outputs locally.

What communication ports are included?

It comes with two serial ports: RS-232 and RS-485.
