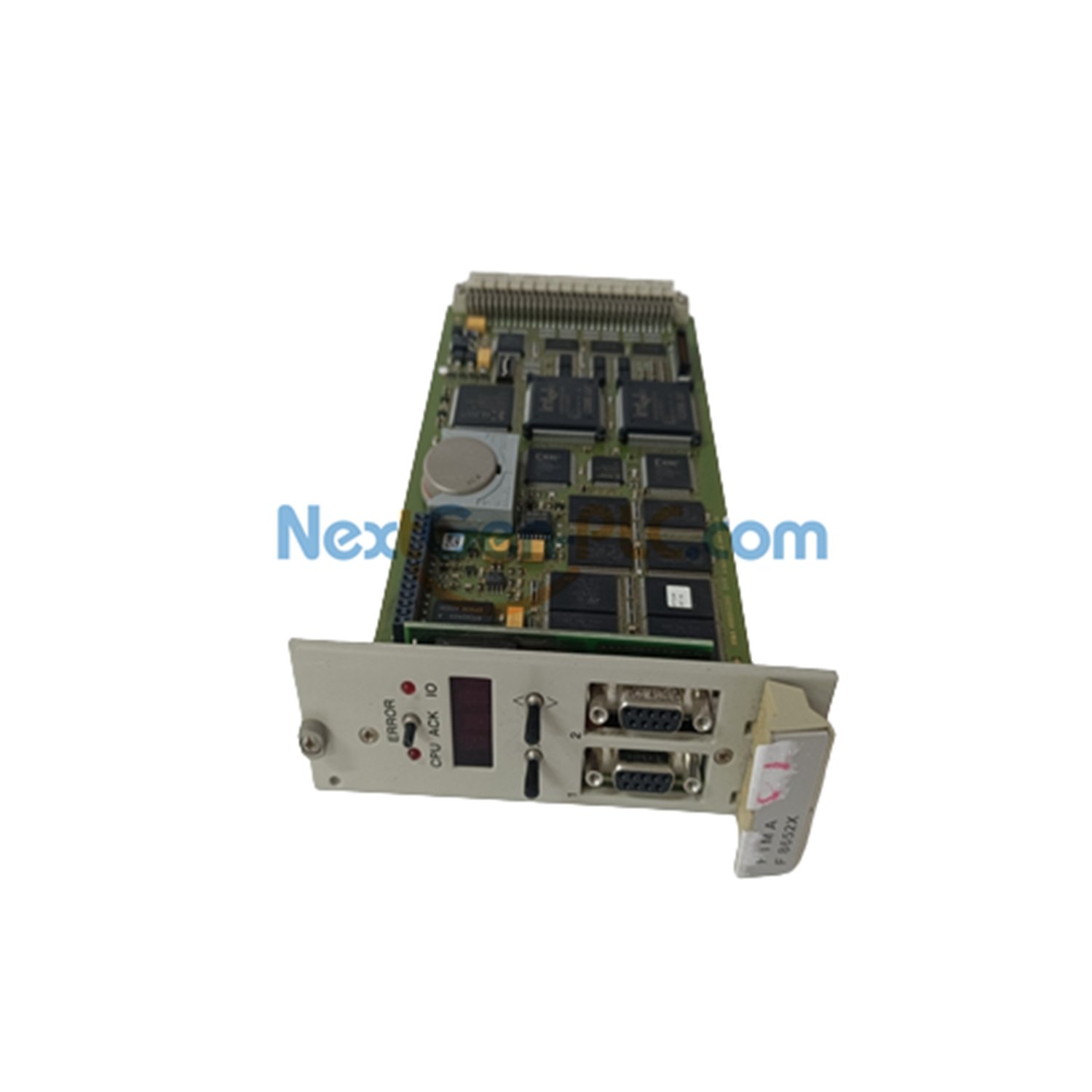

HIMA – F8650X Central Module

Technical Specifications

• Brand: HIMA
• Model: F8650X
• Category: Central Safety Module / PLC CPU
• Safety Certification: SIL 3 (IEC 61508)
• Compatible Systems: PES H51q-MS, -HS, -HRS Series
• Processor: Dual Intel 386EX 32-bit microprocessors
• Clock Frequency: 25 MHz

Frequently Asked Questions (FAQ)

• Q: How do I connect the F8650X to an Ethernet network?
  A: You need the F8627X communication module. The F8650X connects to it via the backplane bus.
• Q: What do the diagnostic LEDs on the module indicate?
  A: The “CPU” LED signals central unit faults. The “IO” LED shows input/output module issues.
• Q: Are the pins 3 and 8 important for the RS-485 interface?
  A: Yes, pins 3 (RxD/TxD-A) and 8 (RxD/TxD-B) are key for data. Never forget pin 5 for Data Ground (DGND).
• Q: Is this a brand new unit?
  A: Yes, we supply only new, factory-original units. We have the F8650X in stock ready for dispatch.
• Q: What are your shipping and return policies?
  A: We process and ship orders within 5 business days. We use common carriers like DHL, FedEx, and UPS. For your confidence, we offer a 30-day return policy.
