GE Fanuc PC Interface Module IC660ELB906

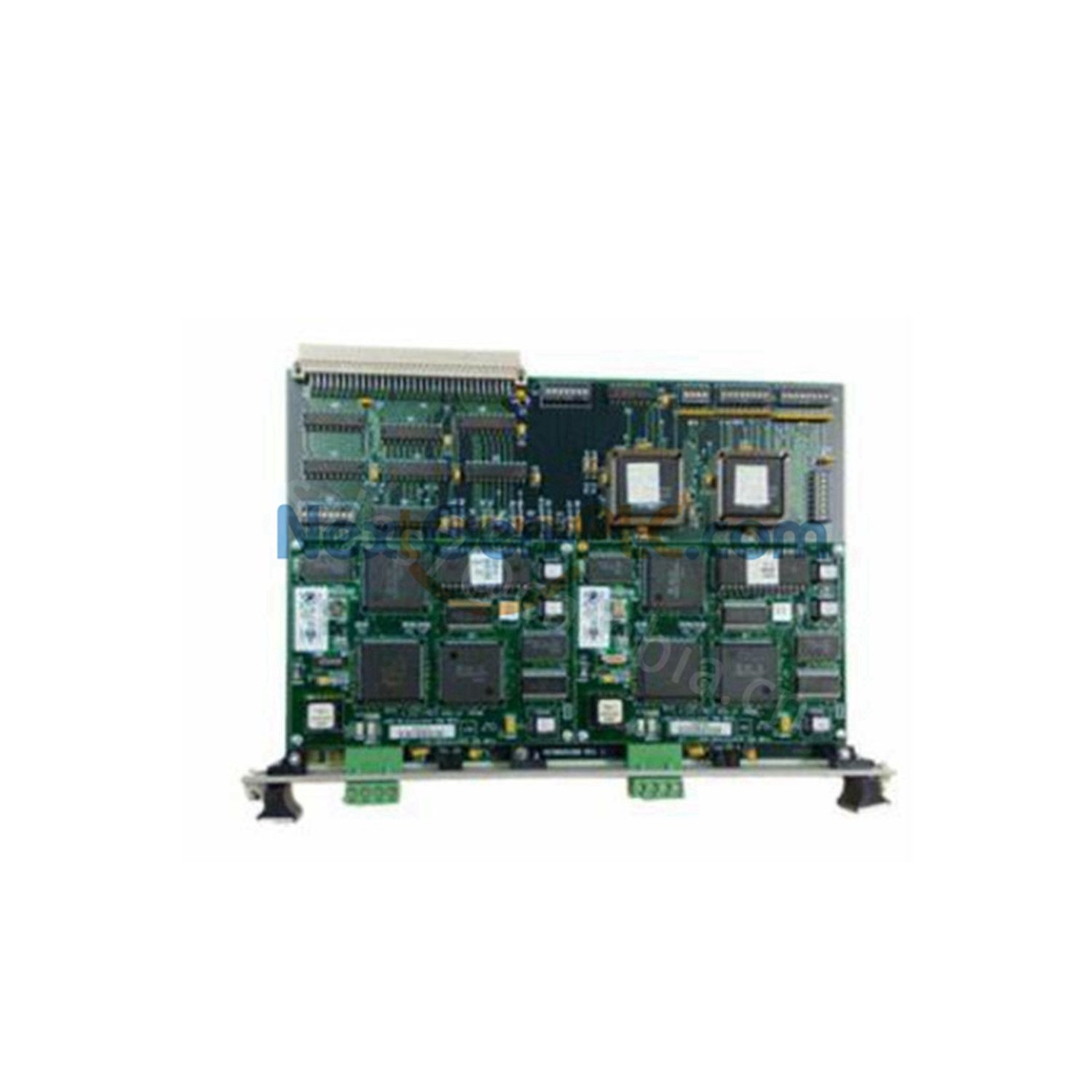

GE Fanuc IC660ELB906 Genius I/O PC Interface Module (PCIM)

Technical Specifications

• Brand: GE Fanuc
• Model: IC660ELB906
• Series: Genius I/O
• Product Type: PC Interface Module (PCIM)
• Host Interface: ISA Compatible for IBM PC/AT/XT backplanes.
• Board Type: Designed for an XT-type slot with an AT type board.
• Power Requirement: 5 Volts DC at 400 milliamps.
• Bus Loading: 1 LS TTL load per input line.
• Drive Capability: 10 LS TTL loads per output line.
• Operating Temperature: 0 to 60 degrees Celsius ambient range.
• Weight: Approximately 3 pounds.
• Status Indicators: Includes 2 LEDs for each daughterboard.
• Configuration: Features an external hand-held monitor connection.

Core Module Functionality

• The IC660ELB906 combines a motherboard and a daughterboard.
• It provides a low-cost tap on the Genius I/O twisted pair network.
• The module is optimized for integration with the IBM personal computer bus.
• A software driver offers high-level bus access for user-developed applications.
• An onboard DIP switch allows easy configuration of the network data rate.

Daughterboard Features

• The daughterboard serves as a general-purpose I/O controller.
• It can manage initialization and faults for up to 30 Genius bus devices.
• It maintains current images of the I/O data for each controlled device.
• The board handles protocol and enables non-time-critical network access.
• It can communicate with other bus controllers using background messages.

Motherboard Features

• The motherboard interfaces the daughterboard to an IBM-compatible host.
• It buffers all necessary communication signals to the host computer bus.
• It provides crucial control and monitoring functions.
• Features include low supply voltage detection and power-up RESET sequencing.
• It performs host system address decoding and interrupt control.
• A built-in watchdog timer monitors system operation for faults.
• This safety timer can be disabled by the user with a jumper setting.

Application and System Integration

• This PCIM is designed for user-developed microprocessor system integration.
• A PC equipped with this module can control field stations and Genius I/O blocks.
• Proper setup requires entering station module and I/O data info into the host.
• The module’s design emphasizes extensive diagnostics and high noise immunity.
• It is a key component for building reliable industrial automation systems.

Frequently Asked Questions (FAQ)

• Q: What is the condition of the IC660ELB906 module?
  A: We supply only new and original GE Fanuc units.
• Q: Is this module in stock and ready to ship?
  A: Yes, the IC660ELB906 is available in stock.
• Q: What type of computer slot does it need?
  A: It is designed for installation in an XT-type slot (ISA compatible).
• Q: What is the operating voltage?
  A: It requires 5 Volts DC power at 400mA.
• Q: How many devices can it control on the Genius bus?
  A: The daughterboard can manage up to 30 bus devices.
• Q: What is your shipping and return policy?
  A: We ship within 5 days via DHL/FedEx/UPS and offer a 30-day return policy.
