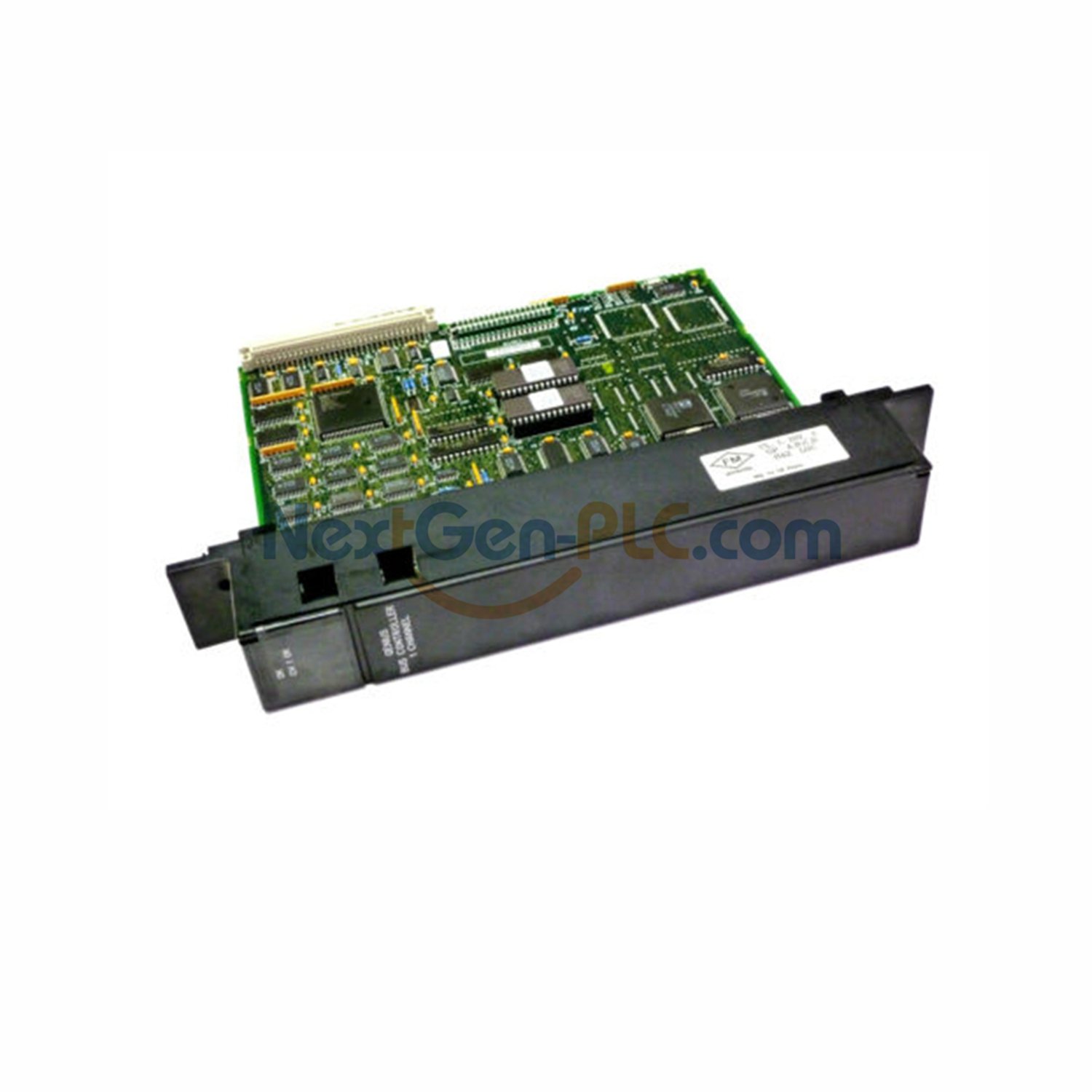

GE Fanuc IC697MDL240 – Input Module

GE Fanuc IC697MDL240 Series 90-70 120VAC Discrete Input Module

Product Overview

GE Fanuc makes the IC697MDL240 for Series 90-70 PLC systems.

The module has 16 isolated inputs rated at 120 V AC.

The input filter delay is 20 ms.

The module draws 0.25 A from the 5 V backplane bus.

Top LEDs show each point status for fast troubleshooting.

It supports 2-wire and 3-wire proximity switches.

Typical on-state current is 10 mA.

Off-state leakage current can reach 4 mA.

Configuration & Compatibility

Program the module with Series 90-70 software via SNP or Ethernet.

The software runs on Windows NT or Windows 95 for legacy systems.

Fit the mechanical key during initial setup to ensure correct swaps.
