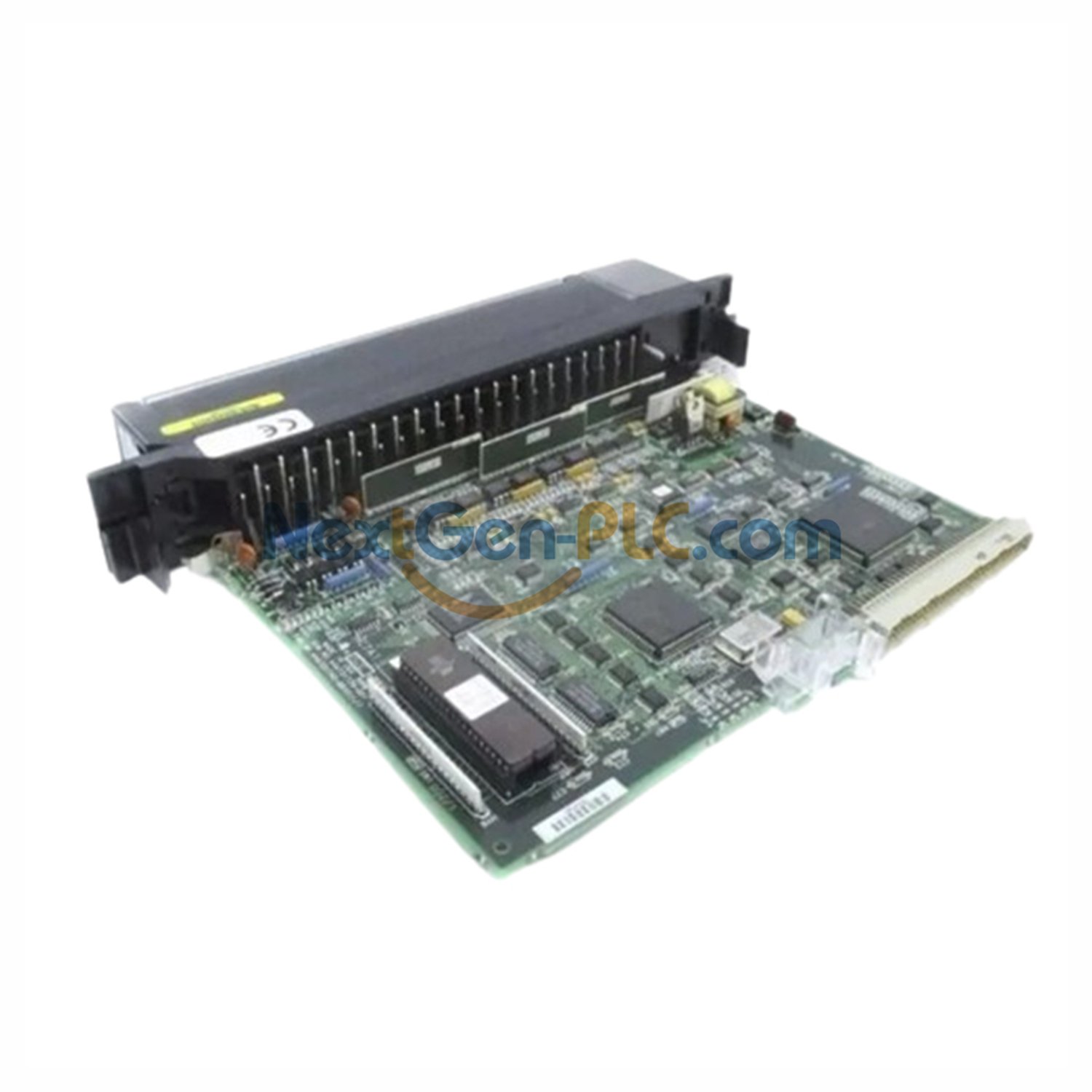

GE Fanuc IC697HSC700 HSC Module

GE Fanuc IC697HSC700 High-Speed Counter Module (Series 90-70)

Key Advantages

Handles 12 high-speed single-ended or differential inputs

Four positive logic outputs for direct control

Processes up to 200 kHz standard signals and 800 kHz in Quad B mode

LED indicators for quick diagnostics

Short-circuit protected outputs and robust electrical isolation

Single-slot design, easy to install and configure

Supports Series 90-70 CPU and IC697 I/O modules

Frequently Asked Questions

Q: What voltage does the IC697HSC700 accept?
A: Inputs can operate at 5 VDC or 10-30 VDC.

Q: How many outputs does it provide?
A: Four positive logic outputs at 10-30 VDC, 20 mA each.

Q: Does it require a cooling fan?
A: No, the module typically does not need additional cooling.

Q: Which software is compatible for configuration?
A: Logicmaster 90-70 v5.0x+, VersaPro, and Proficy Machine Edition Logic Developer PLC Professional Edition.
