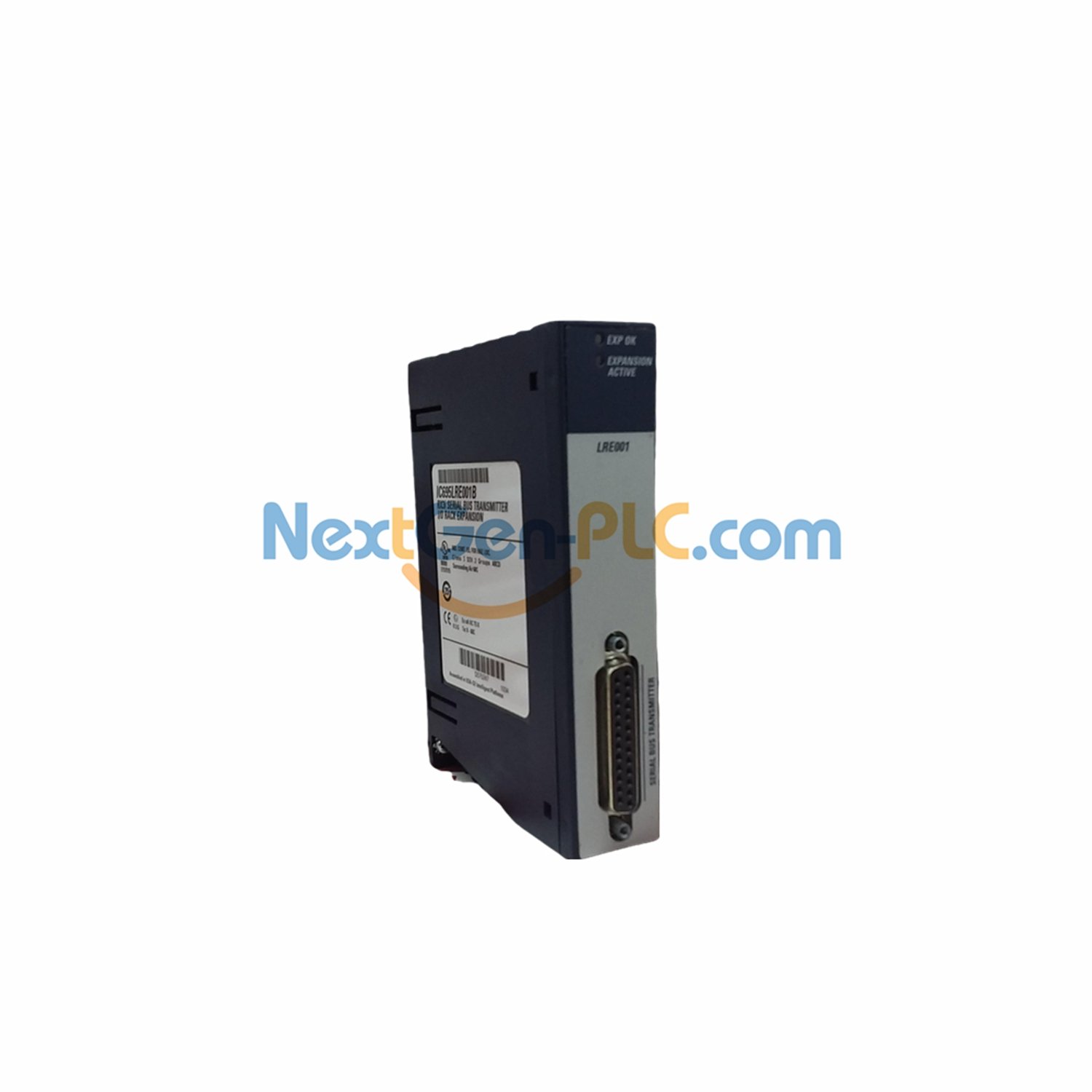

GE Fanuc IC695LRE001 RX3i Serial Bus Transmitter Module
Product Overview
The IC695LRE001 connects remote and expansion backplanes to RX3i.
It converts backplane signals to serial expansion levels.
The module uses RS-232 at 500 kbps.
It fits one RX3i slot for compact installation.
Two LEDs show power and link status.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | GE Fanuc / GE Intelligent Platforms |
| Series | RX3i PACSystem |
| Part Number | IC695LRE001 |
| Module Type | Serial Bus Transmitter |
| Slots | 1 (single slot) |
| Communication | RS-232 |
| Data Rate | 500 kbps |
| Max Cable Length | 50 ft (expansion backplane) |
| Remote Expansion Cable | 700 ft |
| Electrical Isolation | Non-isolated differential |
| LED Indicators | 2 (Expansion OK, Expansion Active) |
| Current Required | 132 mA @ 5 VDC; 0 mA @ 3.3 VDC |
Key Features
- Connects remote and expansion backplanes to RX3i
- RS-232 link at 500 kbps
- Single-slot design for tight panels
- Supports 50 ft expansion cable
- Supports 700 ft remote backplane cable
- Two LEDs for quick status checks
- Low power draw: 132 mA @ 5 VDC
- Reliable signal translation for expansion backplanes
