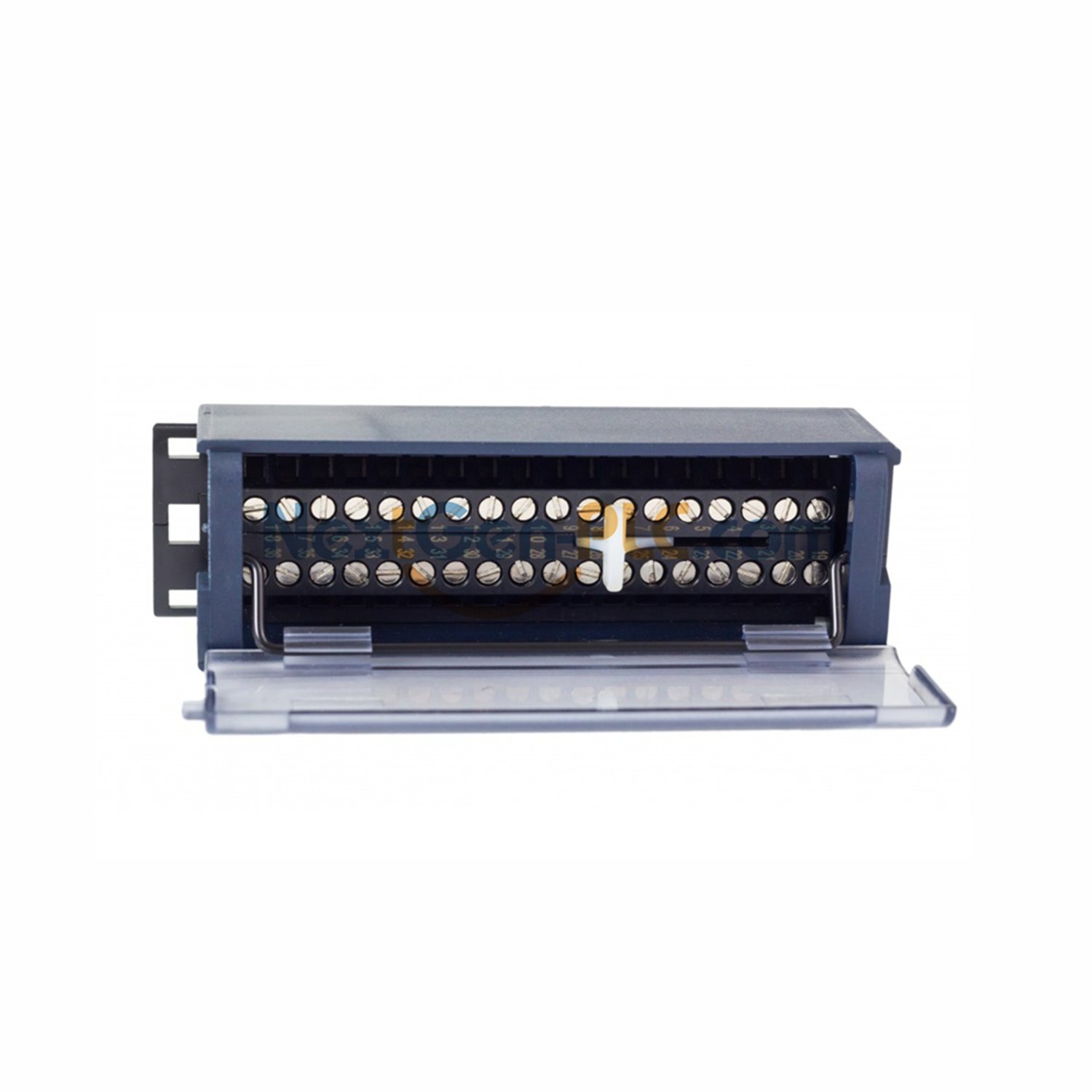

GE Fanuc IC694TBB132 Box Style Terminal Block

GE Fanuc IC694TBB132 PACSystem RX3i High-Density Terminal Block

Product Overview

The IC694TBB132 is a high-density terminal block for PACSystem RX3i.

It supports 32 input I/O modules and Series 90-30 equivalents.

It has 36 screw terminals for solid or stranded wire.

Wire size: #14–26 AWG. Strip length: 0.310 in (7.87 mm).

Tightening torque: 7 lb-in per terminal.

Technical Specifications

Number of Terminals: 36

Terminal Type: Screw-type

Compatible Modules: PACSystem RX3i, Series 90-30 equivalents

Wire Size: #14–26 AWG, solid or stranded

Wire Strip Length: 0.310 in (7.87 mm)

Tightening Torque: 7 lb-in
