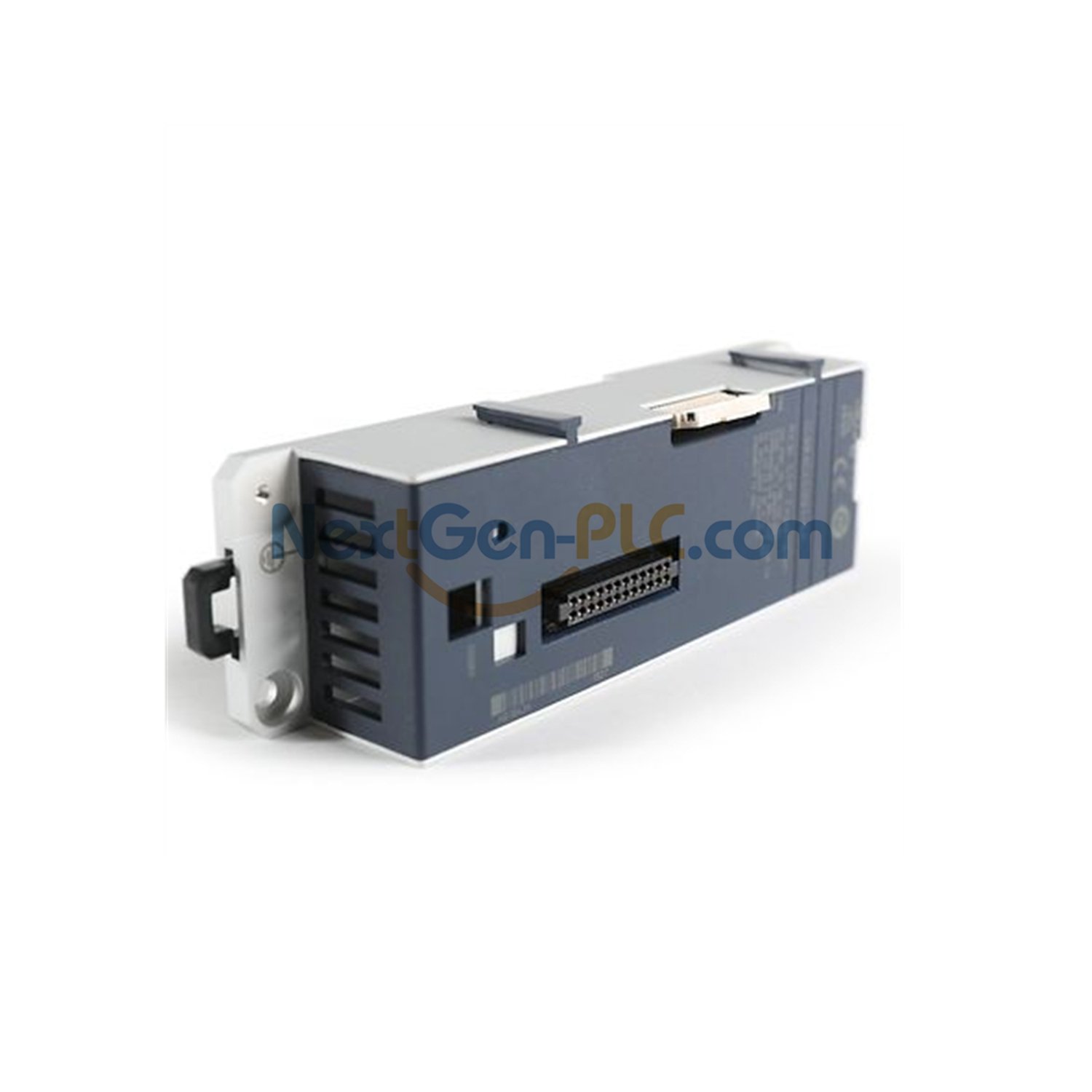

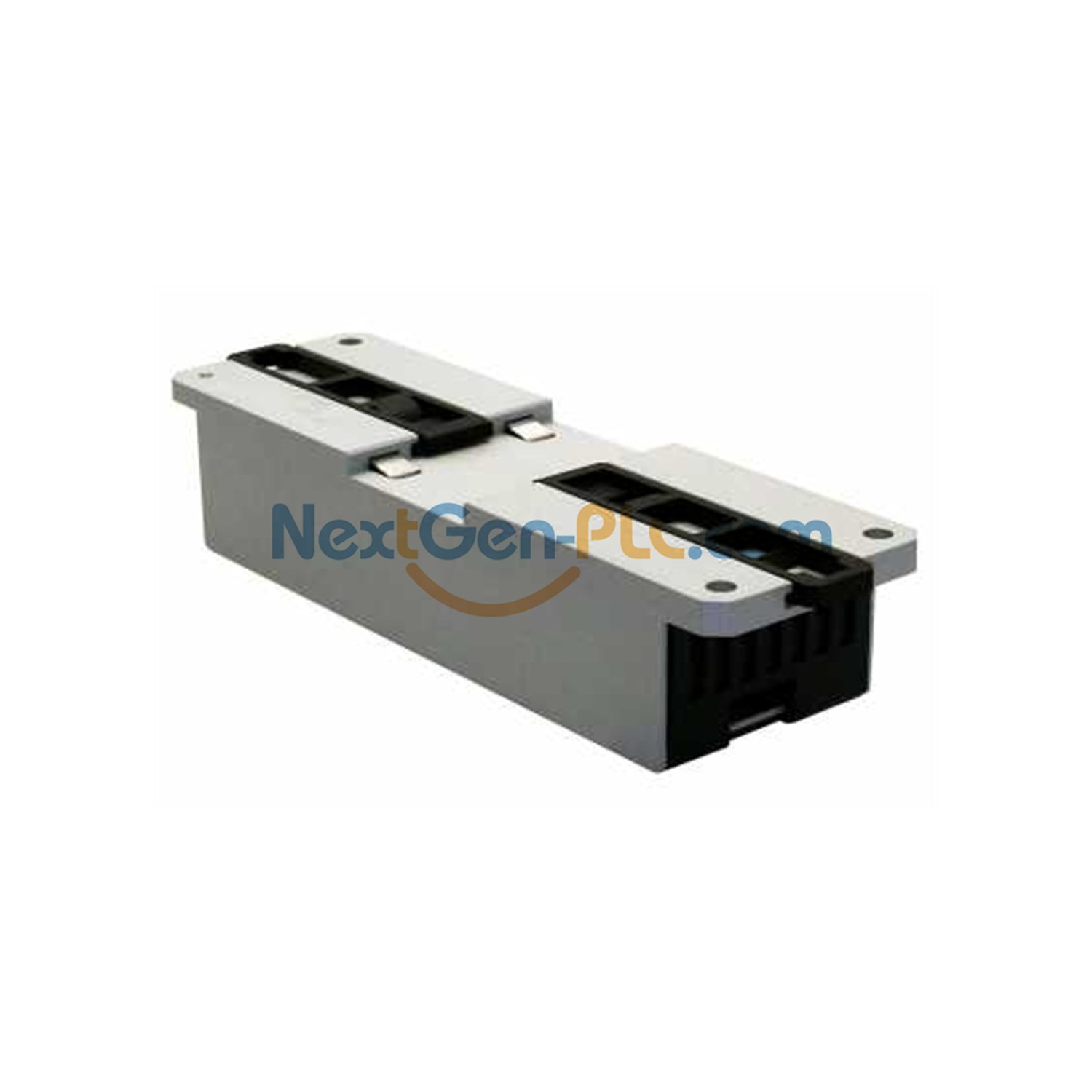

GE Fanuc IC694CEE001 Expansion Carrier Module

GE Fanuc IC694CEE001 RX3i CEP Expansion Carrier Module

Product Overview

The IC694CEE001 is an expansion carrier for RX3i PacSystems PLCs.

It connects a remote node to one RX3i I/O module and a PROFINET I/O LAN.

The module attaches to the host CEP001 carrier in the PLC.

Installing this carrier allows adding another RX3i IC694 I/O module to the remote node.

The module gets power from the host CEP001 carrier.

The power LED shows status: green for normal, amber for low, off for no power.

It has no USB or Ethernet ports and uses Proficy Machine Edition software for setup.

Technical Specifications

Module Type: Expansion Carrier

Compatible Host Devices: RX3i CEP001 Carriers

Interface Network: PROFINET I/O LAN

Power Source: Host CEP001 Carrier

Mounting: DIN Rail or Panel

LED Indicators: Power LED (Green/Amber/Off)

Configuration Software: Proficy Machine Edition v8.6+ with SIM 3+

Supports: Remote RX3i IC694 I/O modules
