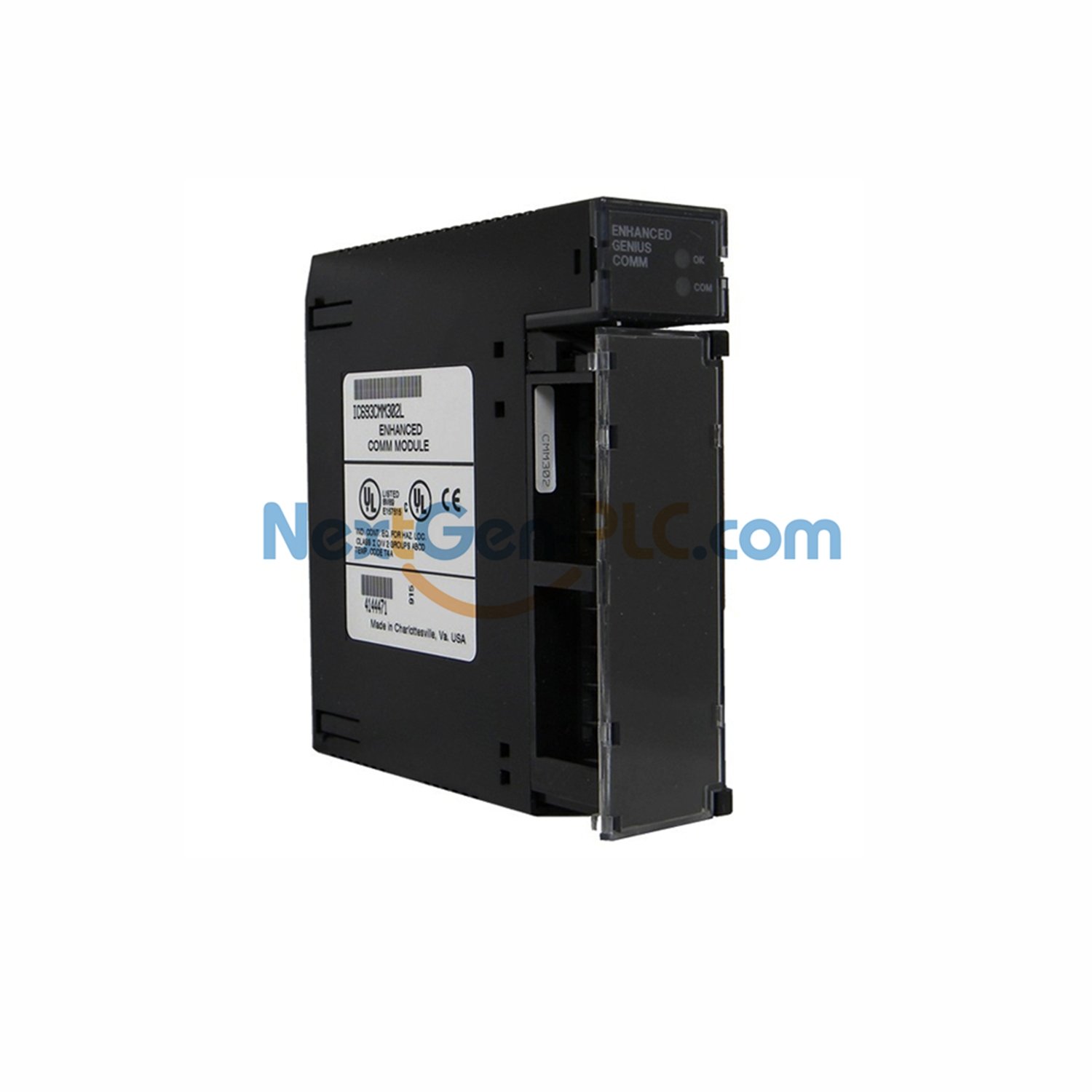

GE Fanuc IC693CMM302 Communications Module

GE Fanuc IC693CMM302 Series 90-30 Enhanced Genius Communications Module

Product Overview

IC693CMM302 links Series 90-30 PLCs to Genius bus devices.

It supports up to 31 devices on one module.

The module sends 128 bytes and receives 128 bytes.

Use it to build clear distributed I/O systems.

Install on CPU, expansion, or remote baseplates.

Technical Specifications

Supported Bus Devices: 31.

Max Devices Per Controller: Two modules allow up to 62 devices.

Global Data Transmit: 128 bytes.

Global Data Receive: 128 bytes.

Supported Registers: %G, %I, %Q, %AI, %AQ, %R.

Slot Width: Single slot module.

Slot Assignment: Any slot except the CPU slot.

Backplane Current: Less than 300 mA at 5 VDC.

LEDs: Two LEDs show module OK and COMM status.

Operating Temp: 0 °C to 60 °C (32 °F to 140 °F).

Storage Temp: −25 °C to 70 °C (−13 °F to 158 °F).

Key Data Blocks

Application Notes

Use this module to scale distributed I/O with clear bus segmentation.

Assign each module its own Genius bus for cleaner network layout.

Avoid mixing enhanced modules with standard GCM modules on one bus.
