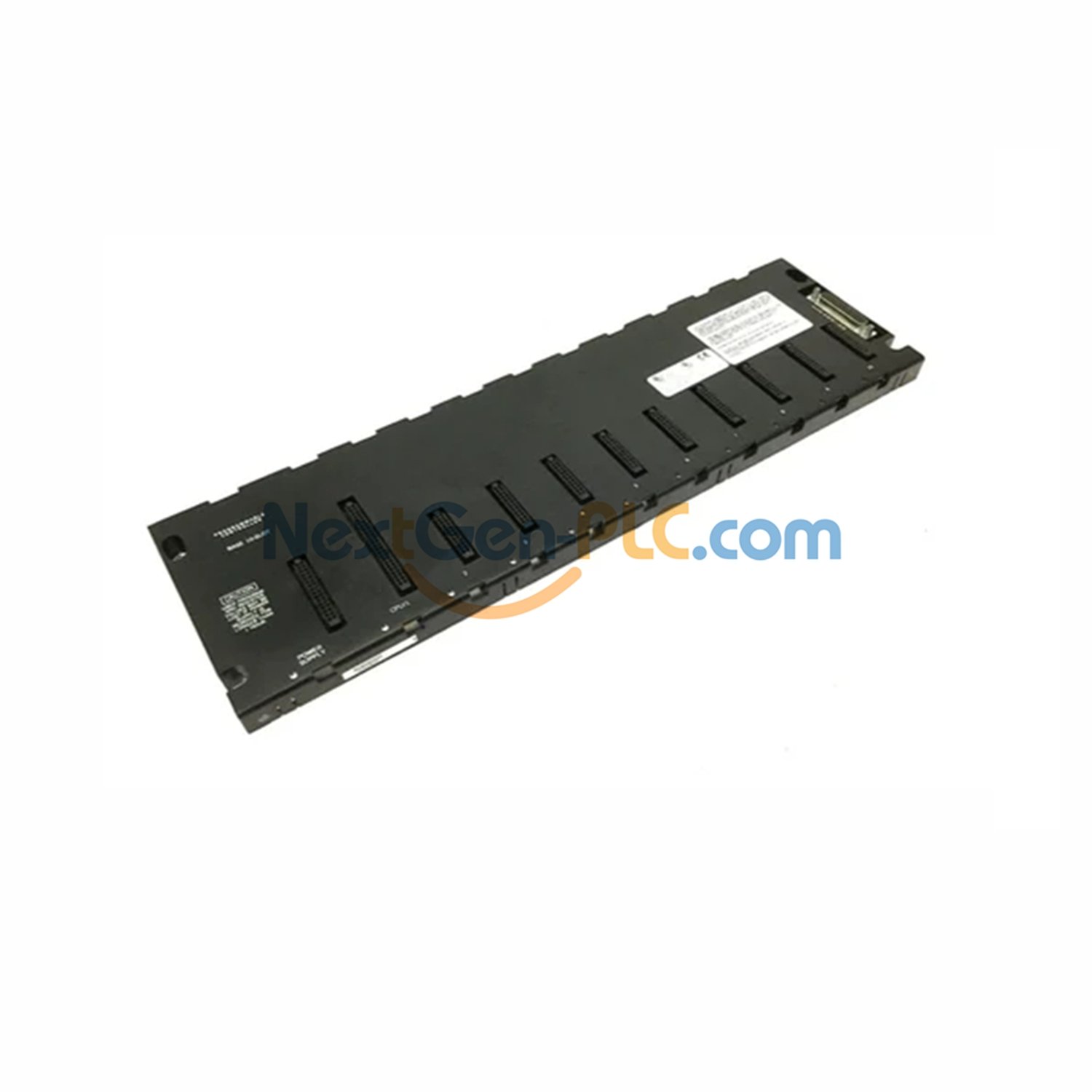

GE Fanuc IC693CHS392 Expansion Plate

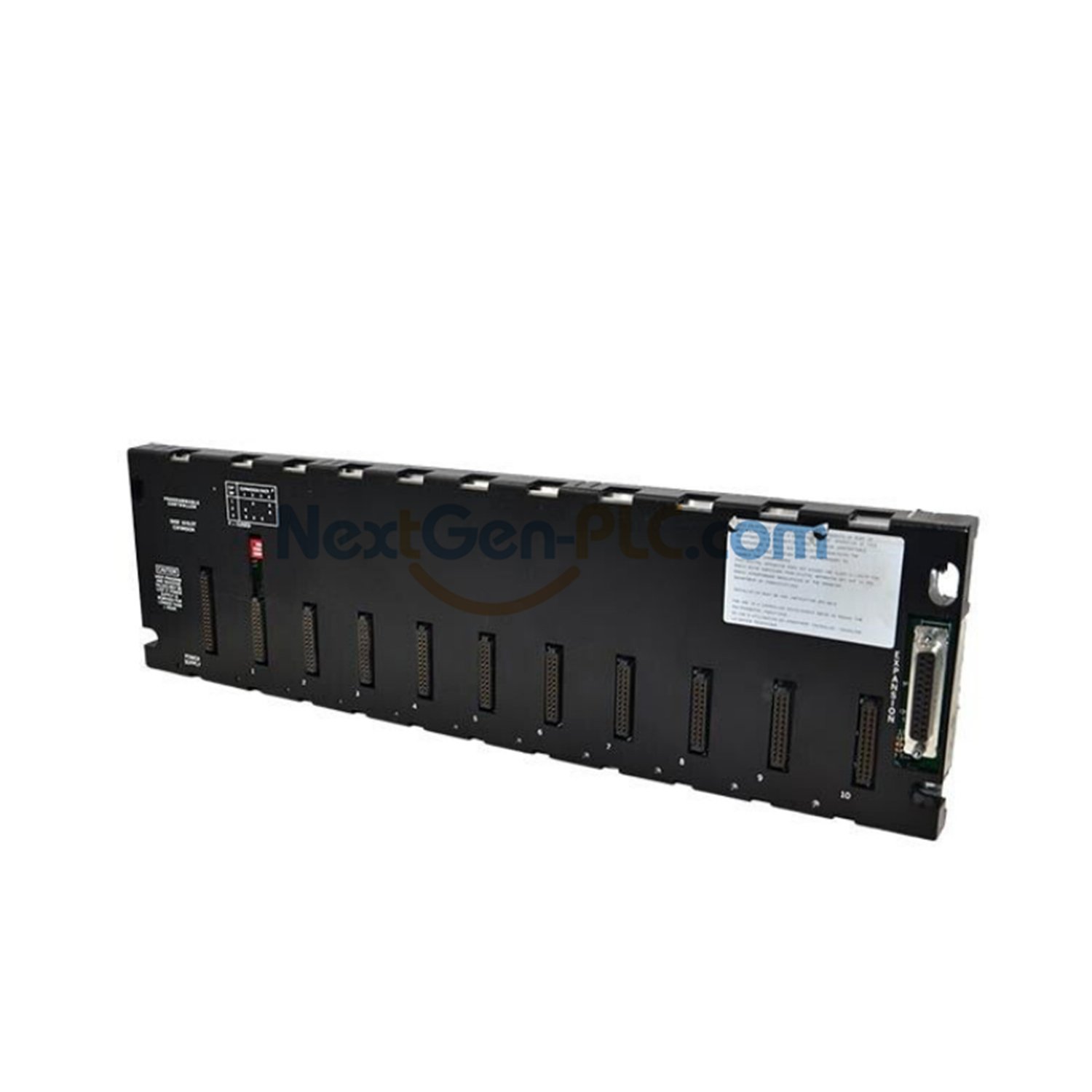

GE Fanuc IC694CHS392 10-Slot Serial Expansion Baseplate – RX3i

The IC694CHS392 is a 10-slot serial expansion baseplate for the PACSystem RX3i by GE Fanuc (now Emerson Automation). It extends the main CPU backplane using a cable up to 15 meters (50 feet). It supports analog, discrete, and special-function I/O modules.

Technical Specifications

Features

• Supports 10 I/O modules: analog, discrete, or special-function.
• Connects to CPU backplane with a serial cable up to 50 ft.
• Up to 7 serial expansion backplanes can be chained.
• Left slot holds the serial expansion power supply.
• Mounts on front or recessed panel of 19-inch racks.
• DIP switch sets rack number before module installation.
• Works with other expansion backplanes like IC694CHS398 or IC693CHS392.

Installation Tips

Connect the IC694CHS392 to the CPU backplane using the IC693CBL302 cable. Do not exceed 50 ft / 15 m. Install the terminating resistor IC693ACC307 on the last baseplate. Mount using the supplied tabs. Keep the baseplate dry and clean.

FAQ

Q: How many expansion backplanes can I connect?
A: Up to 7 serial expansion backplanes, depending on the system.

Q: Can it be mounted inside a 19-inch rack?
A: Yes, it supports front or recessed mounting.

Q: What modules are compatible?
A: The IC694CHS392 supports analog, discrete, and special-function modules.

Q: Is IC694CHS392 in stock?
A: Yes, available for shipping in 5 days via DHL or similar. Returns accepted within 30 days.
