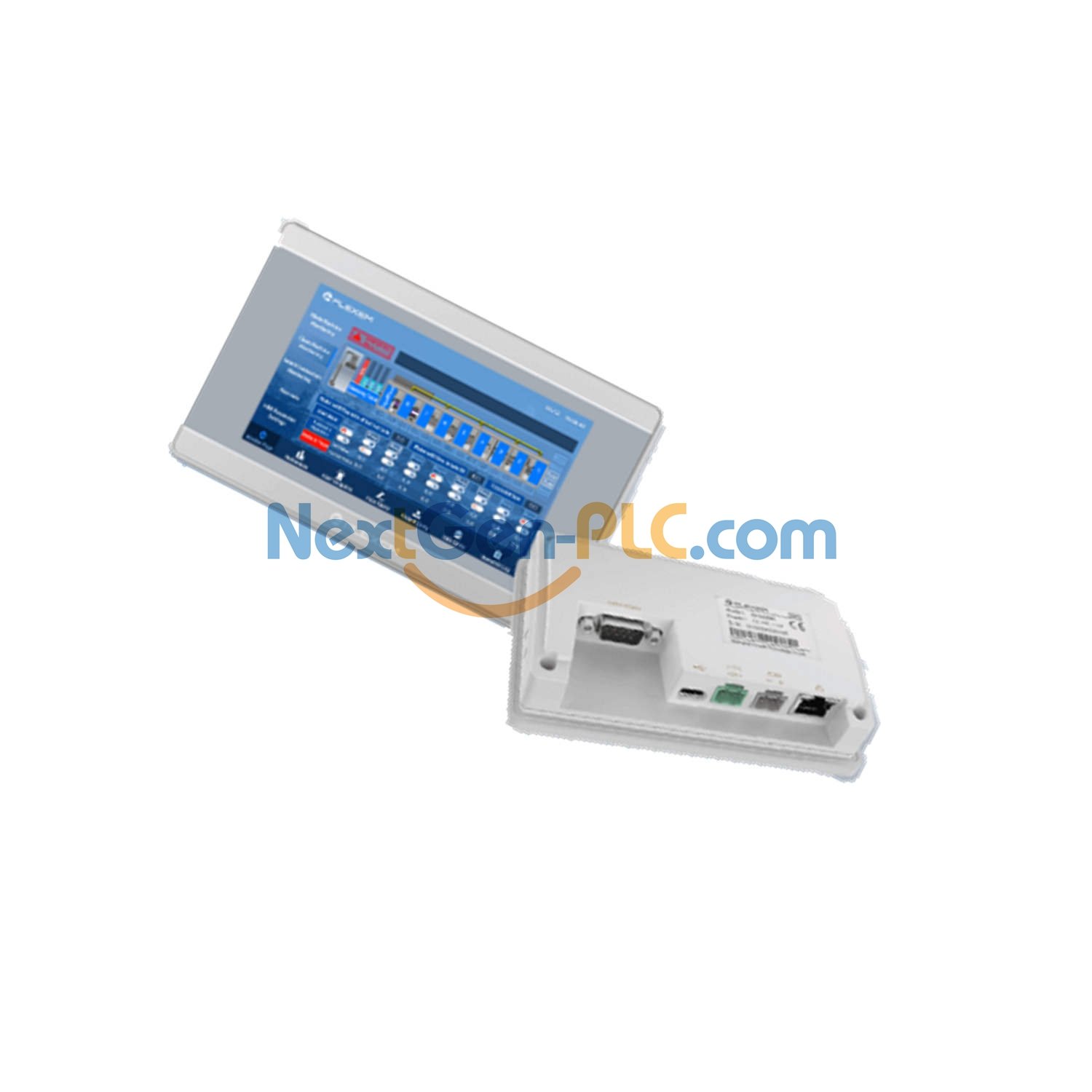

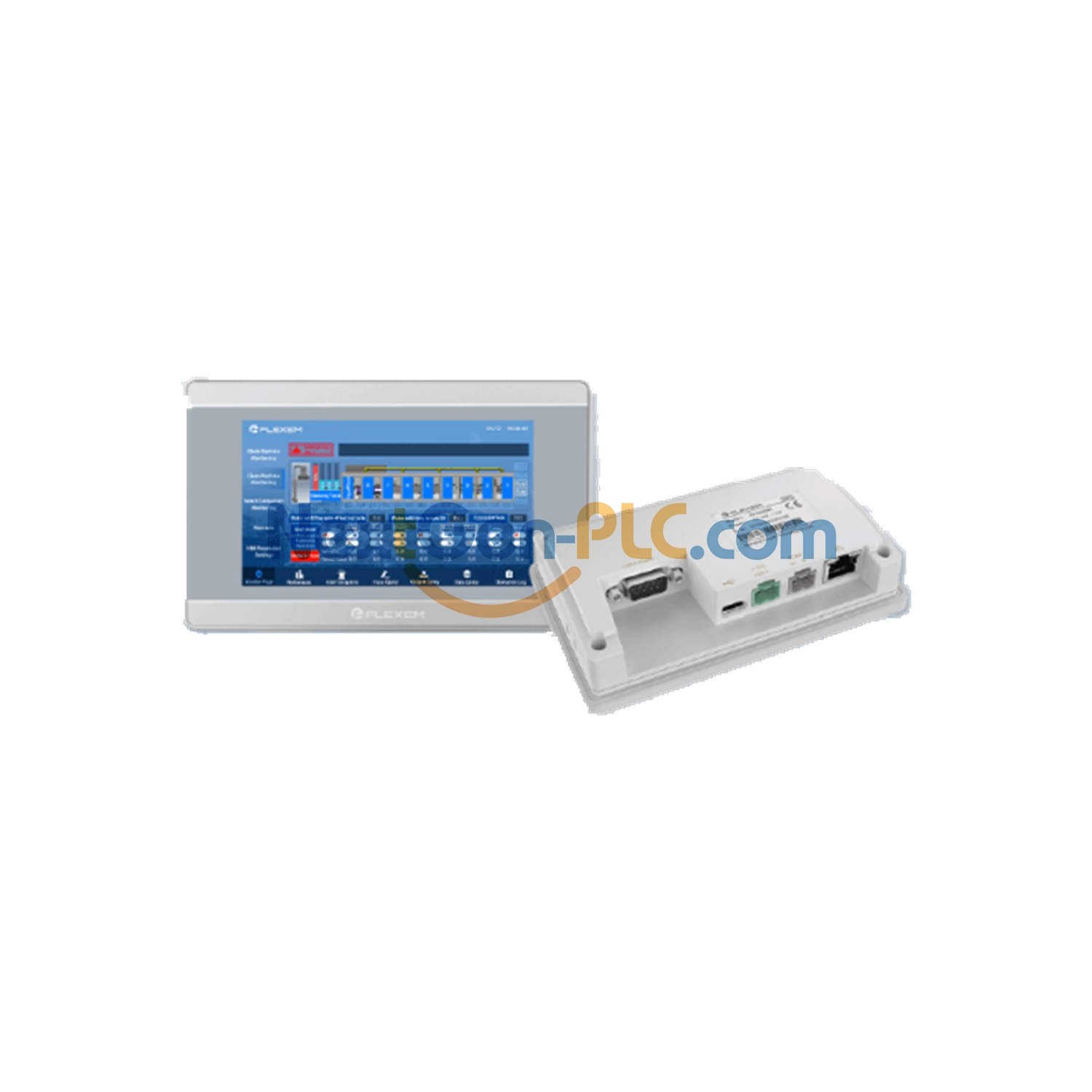

Flexem FE7043WE-UL 7000 Series HMI | 4.3″ Industrial Touch Panel

Discover the Flexem FE7043WE-UL 7000 Series HMI

Key Technical Specifications

• Brand: Flexem
• Model: FE7043WE-UL
• Display Size: 4.3-inch 16:9 TFT LCD
• Screen Resolution: 800 x 480 pixels with 16-bit color
• Brightness Level: High 250 cd/m² for clear viewing
• Viewing Angles: Wide 80°/80°/80°/80° (Top/Bottom/Left/Right)
• Touch Panel: Durable 4-wire industrial resistive type
• Processor: Powerful 2-core Cortex-A7 CPU at 1 GHz
• Memory: 128 MB DDR3 RAM + 128 MB Flash storage
• Ethernet: 1 x 10/100 Mbps port for stable networking
• USB Port: 1 x modern Type-C OTG for connectivity
• Program Download: Simple transfer via USB slave or flash drive

Power & Environmental Ratings

• Rated Power: Low consumption, under 5 Watts
• Voltage Range: Wide input from DC 9V to 28V (24V nominal)
• Power Protection: Includes lightning surge protection
• Interruption Tolerance: Holds for less than 5 milliseconds
• Operating Temp: Reliable from 0°C to 50°C
• Storage Temp: Safe from -20°C to 60°C
• Humidity Range: 10% to 90% RH (non-condensing)
• Vibration Endurance: 10-25 Hz at 2G in X, Y, Z directions
• Front Protection: Rated at IP65 (NEMA panel)
• Certifications: Complies with CE and RoHS standards

Physical Dimensions & Installation

• Cutout Size: 132 mm x 80 mm
• Overall Dimensions: 138 mm x 86 mm x 32 mm
• Product Weight: Approximately 300 grams
• Enclosure Material: High-strength engineering plastic
• Note: Do not operate in environments with high ultraviolet (UV) exposure.

Frequently Asked Questions (FAQ)

• Is the Flexem FE7043WE-UL a new product?
  Yes, every unit we supply is brand new and original from the manufacturer.
• What is the delivery time and shipping method?
  We ship within 5 business days using reliable global carriers like DHL, FedEx, or UPS.
• Does this HMI support remote connectivity?
  Yes, the Flexem FE7043WE-UL model has integrated 4G and IoT functionality for remote monitoring solutions.
• What is the return policy?
  We offer a 30-day return policy for products in original condition. Please contact our team to initiate a return.
• How do I get technical documentation?
  Complete manuals and datasheets are available for download. Contact us for access to all technical resources in PDF format.
