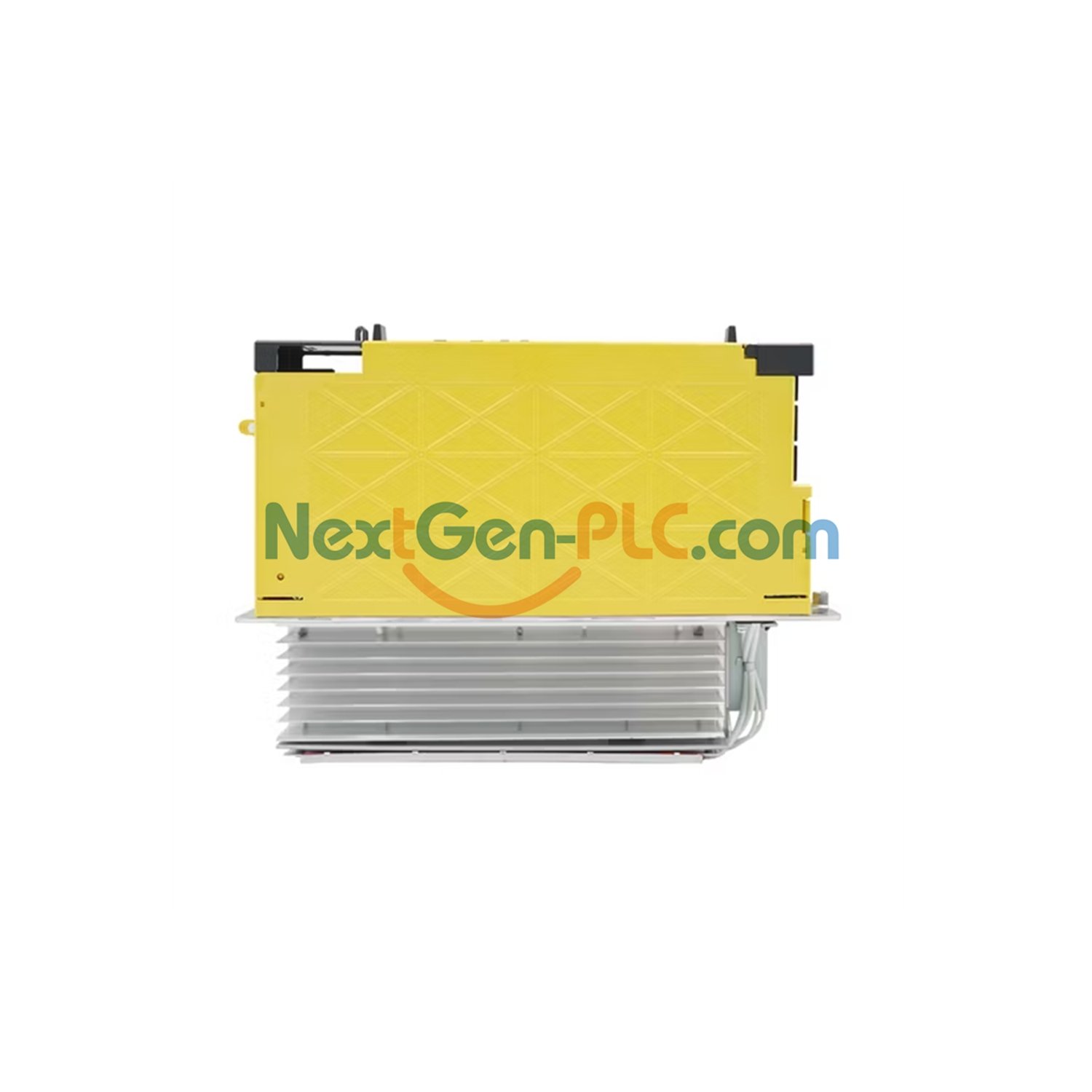

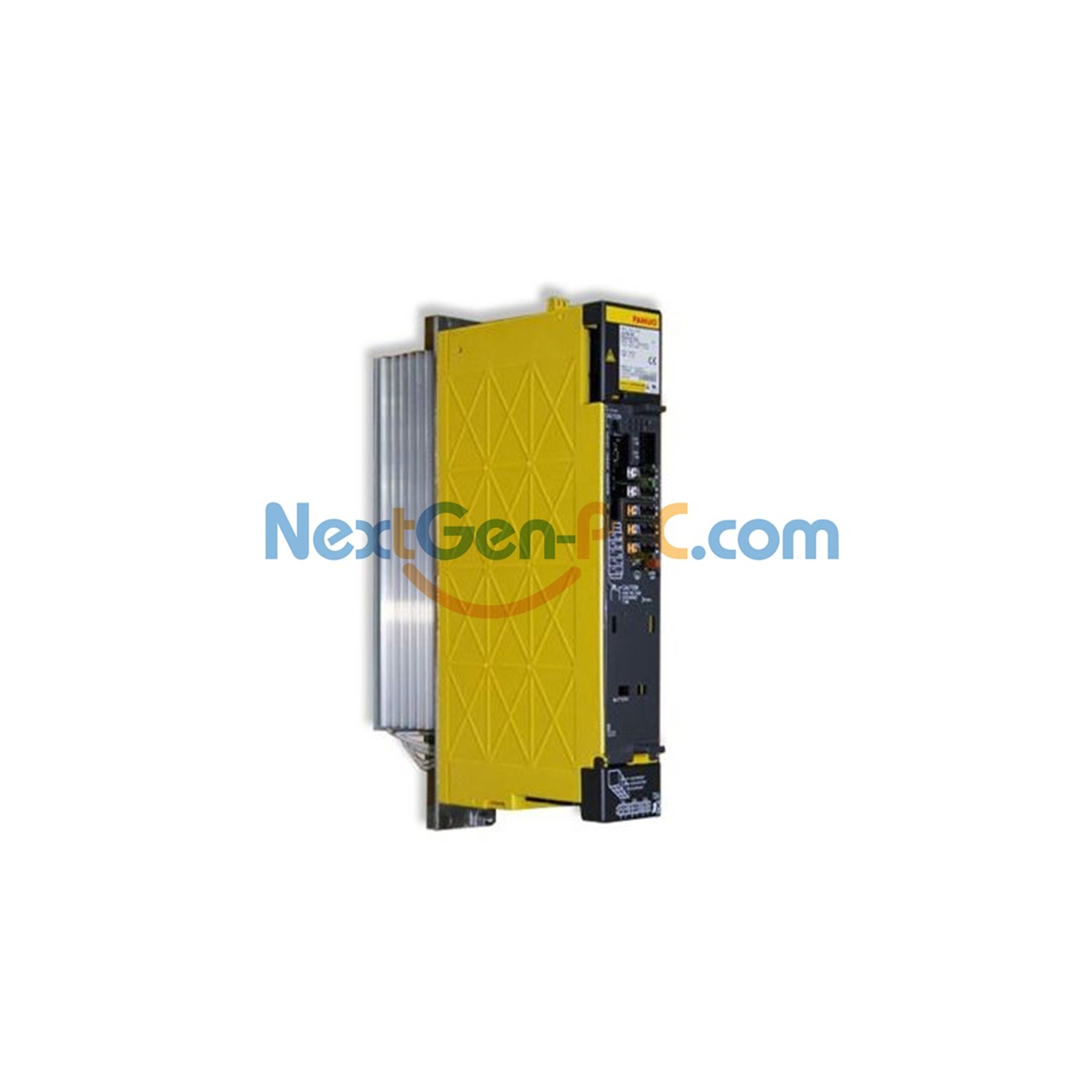

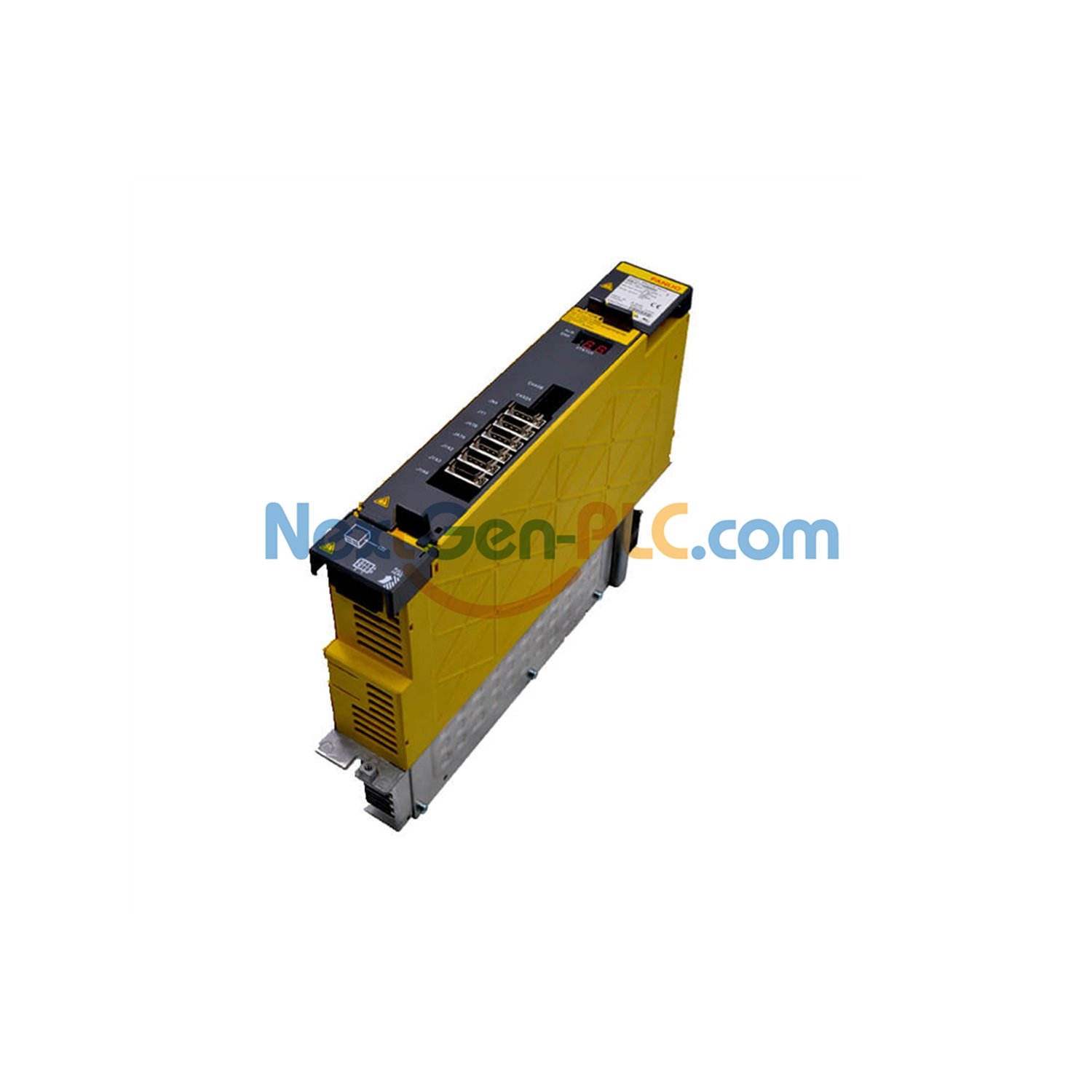

FANUC A06B-6132-H003 Servo Amplifier Module
Full Technical Details
| Parameter | Value |
|---|---|
| Brand | FANUC |
| Part Number | A06B-6132-H003 |
| Product Line | A06B Series |
| Product Type | Servo Amplifier Module |
| Voltage Class | 200 V |
| Input Voltage | 200 to 240 VAC, 3-phase |
| Input Frequency | 50/60 Hz |
| Input Current | 14.0 A |
| Max Output Voltage | 240 VAC |
| Rated Output Current | 13 A |
| Operating Temp | 0 to 55°C |
| Storage Temp | -20 to 60°C |
| Humidity | 90% RH max, no condensation |
| Vibration | Below 0.5 G |
| Weight | 7.00 lbs (3.18 kg) |
Quick FAQs
- What power does this amp need?
The A06B-6132-H003 needs 200-240 VAC three-phase at 50 or 60 Hz. - How much current can it output?
It gives 13 A continuous at up to 240 VAC output. - What temps can it handle?
It runs from 0 to 55°C and stores from -20 to 60°C. - Can it get wet?
No, keep humidity below 90% with no condensation.
