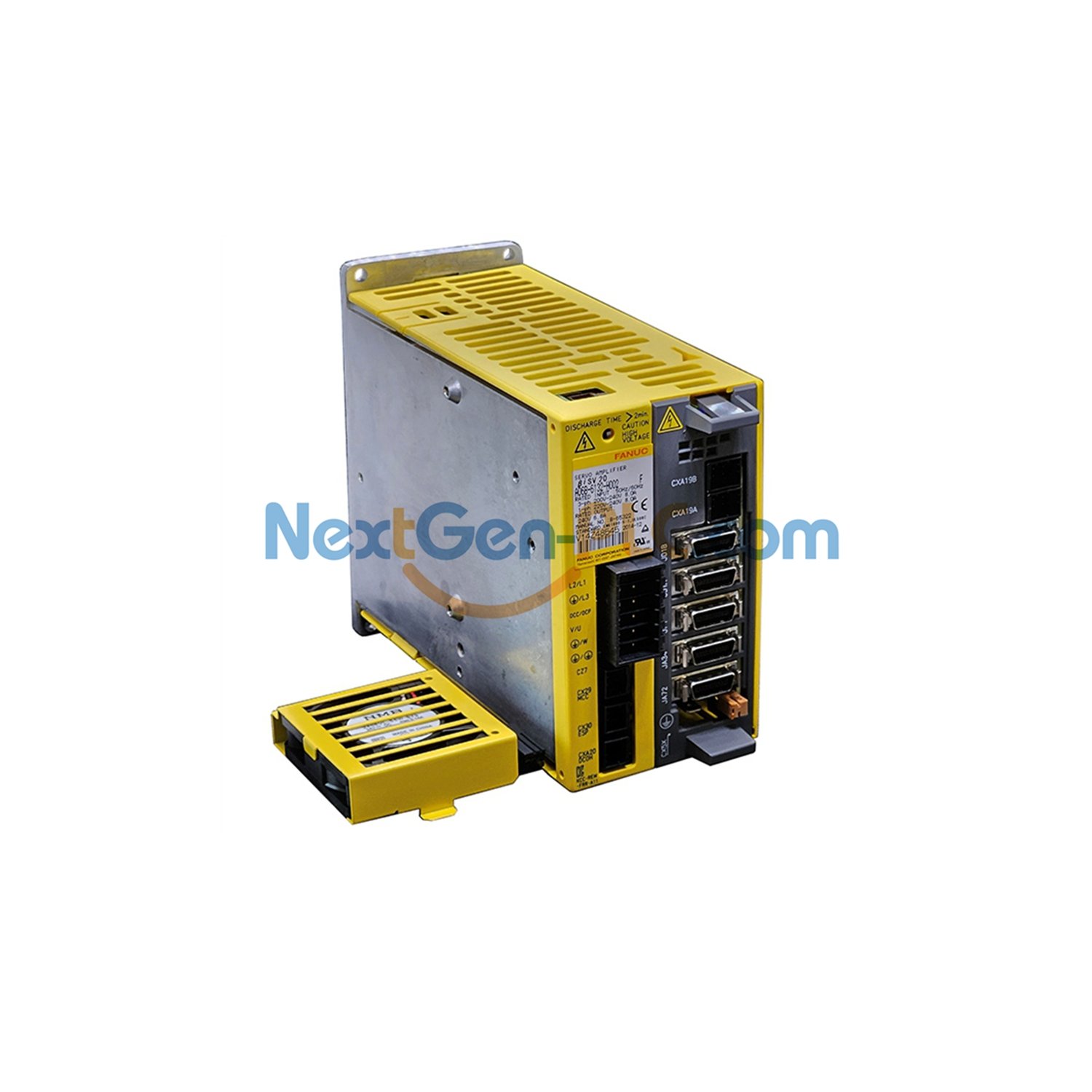

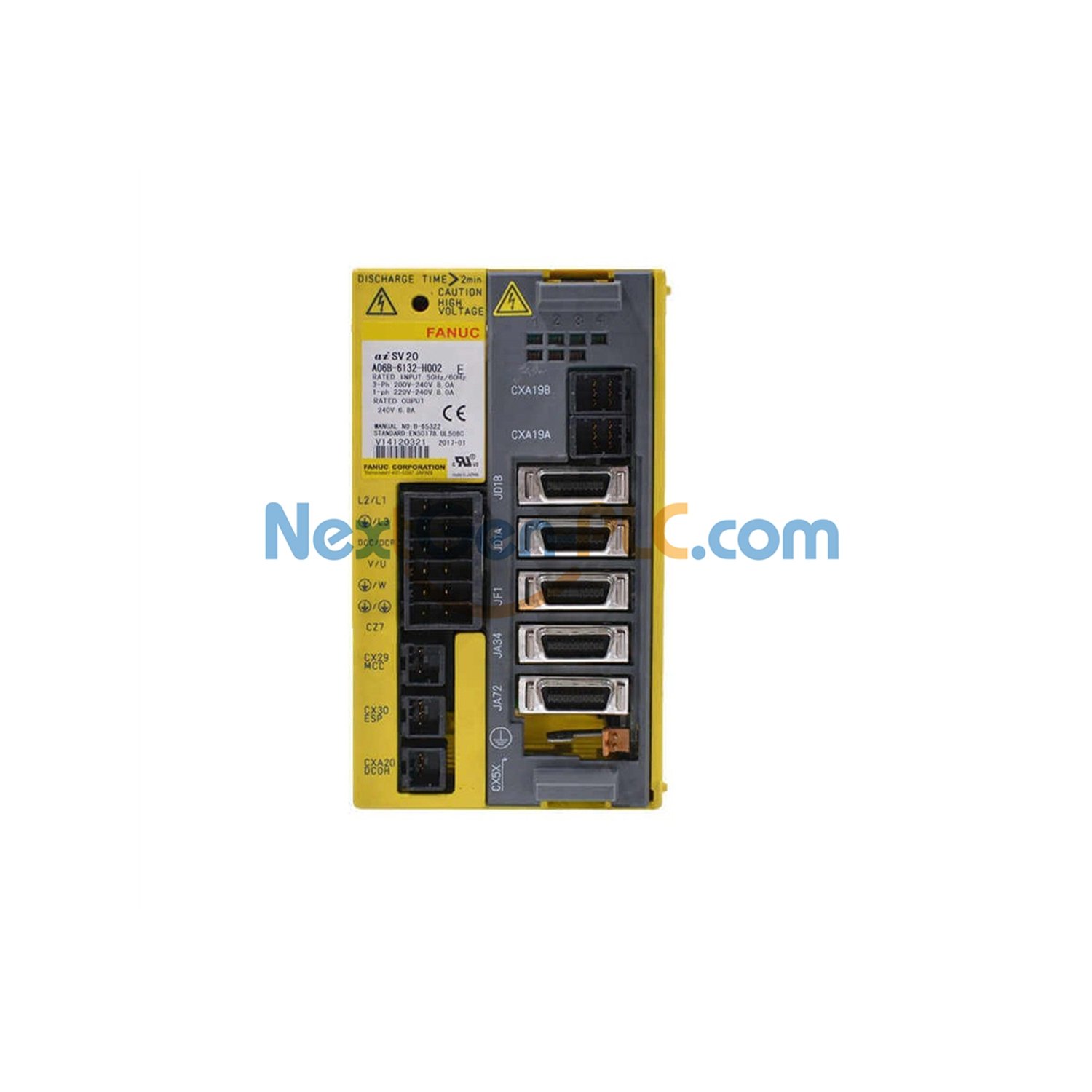

FANUC A06B-6132-H002 Servo Amplifier | 6.8A 200V Module

FANUC A06B-6132-H002 Servo Amplifier: 6.8 A Precision Drive

We build the A06B-6132-H002 for reliable motion control. This FANUC servo amplifier works in tough factory conditions. It provides a steady 6.8 A output current. The unit operates from 0 to 55°C. It handles both 1-phase and 3-phase power. Input voltage range is 200 to 240 VAC. This makes the A06B-6132-H002 a flexible choice for many machines.

Main Technical Details

• Brand & Model: FANUC produces this A06B-6132-H002 module. It belongs to the trusted A06B series.
• Output Current: The unit delivers 6.8 A for precise motor control. It supplies stable power to connected servos.
• Input Power: It needs 200 to 240 VAC input. Frequency can be 50 or 60 Hz. Input current rating is 8.0 A.
• Output Voltage: Maximum output reaches 240 VAC. This matches standard servo motor requirements.
• Temperature Range: Use it from 0 to 55°C. Store it safely from -20 to 60°C.
• Humidity & Vibration: It tolerates up to 90% RH without condensation. Vibration stays below 0.5G.
• Weight: The module weighs 7.00 lbs (3.18 kg). This makes it easy to handle during installation.

Common Questions

• Is this FANUC part new and original?
  Yes, we supply 100% new original A06B-6132-H002 units. No refurbished stock.
• How fast can you ship it?
  We ship within 5 working days. We keep this model in stock.
• Which couriers do you use?
  We send all orders via FedEx, UPS, or DHL. You get a tracking number.
• Can it run on single-phase power?
  Yes, the A06B-6132-H002 accepts both 1-phase and 3-phase input. Voltage must be 200–240 VAC.
• What is your return policy?
  We accept returns within 30 days. Items must be unused and in original packaging.
