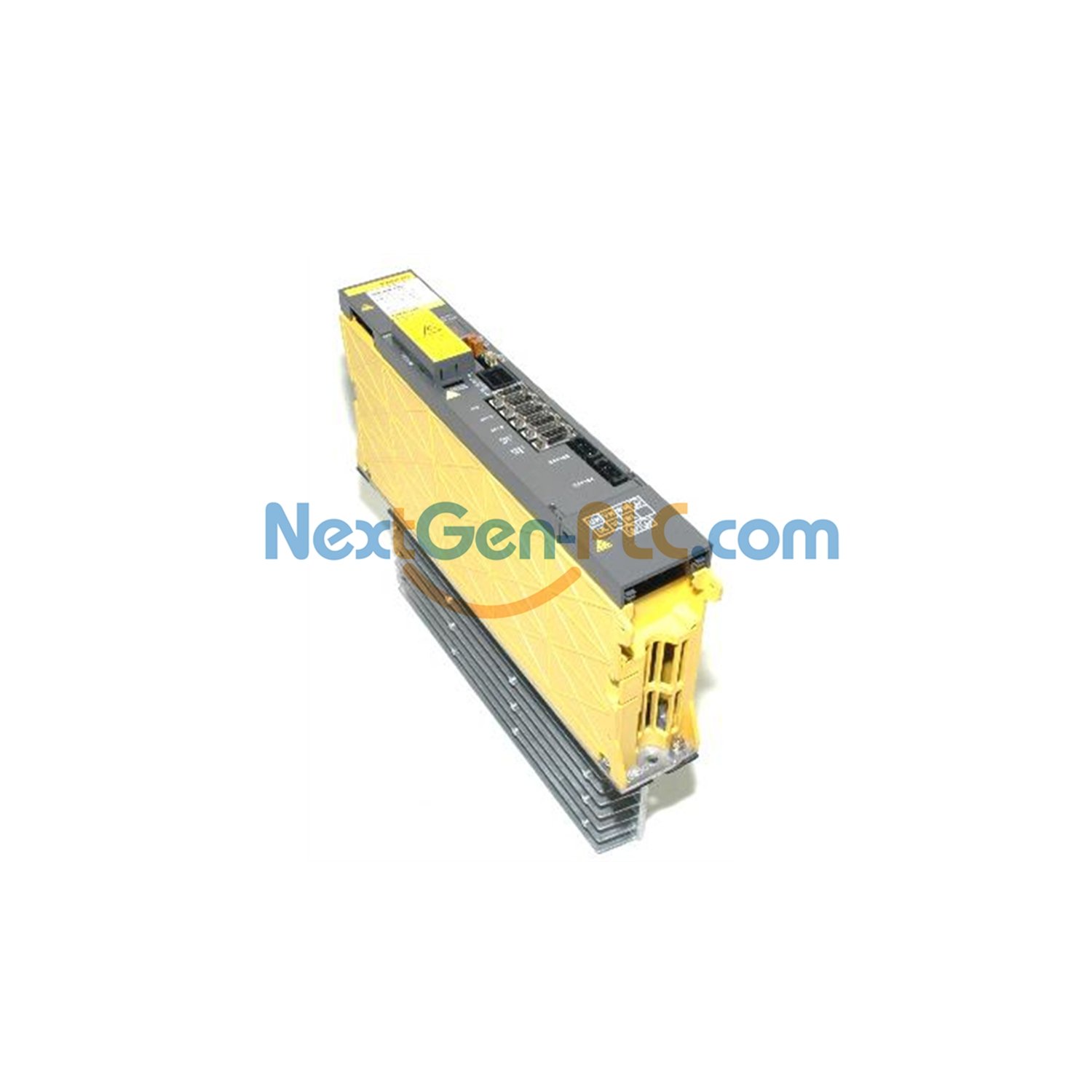

FANUC A06B-6096-H205 Servo Amplifier 200-230V AC

Precision Motor Control with the FANUC A06B-6096-H205 Servo Amplifier

Detailed Technical Specifications for the FANUC A06B-6096-H205

• Brand & Manufacturer: FANUC, a global leader in factory automation, produces this high-quality unit.
• Model & Part Number: The exact model is the A06B-6096-H205, part of the A06B product line.
• Electrical Input: The amplifier requires an input voltage of 200-230V AC and supports input frequencies of 50/60 Hertz. It accommodates both analog and digital control inputs for versatile system integration.
• Output Current: It delivers a precise output current of 5.9 Amps for the L-Axis and 12.5 Amps for the M-Axis, providing sufficient power for connected servo motors.
• Environmental Tolerances: The unit operates safely within an ambient temperature range of 0 to 40 degrees Celsius. It withstands maximum vibrations of 5G and functions reliably at altitudes up to 1000 meters above sea level.
• Integrated Protection Systems: Built-in safeguards include overcurrent, overvoltage, and thermal protection. These features ensure the amplifier operates within safe limits, preventing damage during anomalies.
• Monitoring & Dimensions: Convenient LED status indicators allow for easy operational monitoring. The compact design features approximate dimensions of 200 x 75 x 235 mm and weighs 15.00 lbs (6.80 kg), facilitating installation in tight spaces.

Frequently Asked Questions (FAQ)

• Q: What is the difference between the L-Axis and M-Axis output currents?
  A: The FANUC A06B-6096-H205 provides 5.9 Amps for the L-Axis and 12.5 Amps for the M-Axis. This typically means it can control two different motors, with the M-Axis supporting a higher load capacity.
• Q: Can this amplifier handle voltage fluctuations?
  A: Yes, the unit includes robust overvoltage protection. It is designed to operate safely within the specified input range of 200-230V AC and will safeguard itself against harmful surges.
• Q: Is this unit suitable for use in high-vibration environments?
  A: Absolutely. The amplifier is rated to withstand a maximum vibration of 5G, making it reliable for use on machinery or in locations with significant mechanical movement.
• Q: How do I know if the A06B-6096-H205 is operating correctly?
  A: The front panel includes LED status indicators. These lights provide a quick visual reference for power, operational status, and any fault conditions.
