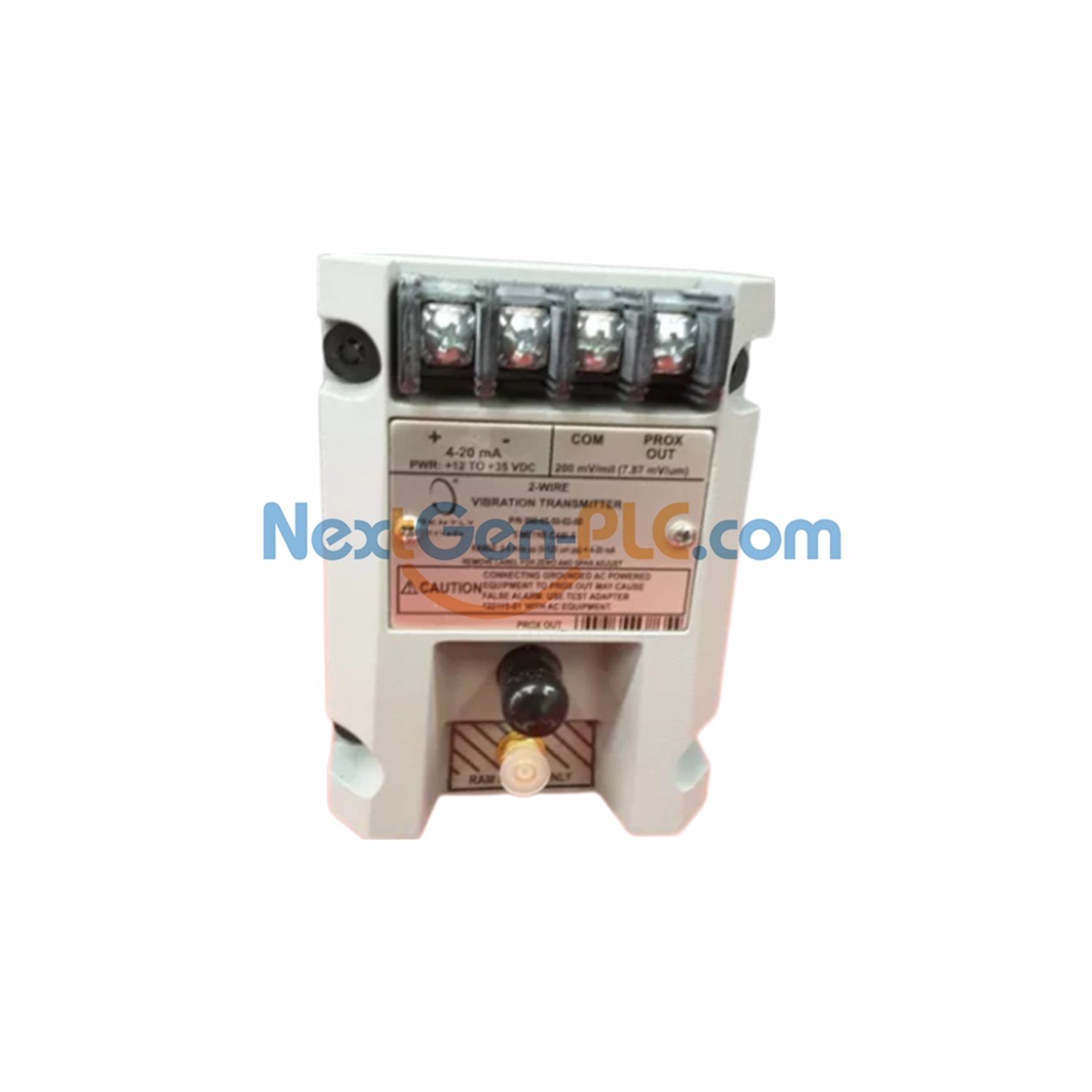

Bently Nevada – Two-wire Vibration Transmitter 990-08-50-01-00

Bently Nevada 990-08-50-01-00: High-Range Vibration Monitoring

📏 MEASUREMENT SPECS

Range: 0-8 mils pp (0-200 μm) | Error: ±1.5%
Response Speed: Fault signal <3.6mA in 100µs
Target Size: ≥9.5mm (0.375″) diameter

🔩 INSTALLATION PROFILE

• Mount Type: 35mm DIN Rail Clips
• Cable Length: 3m max (BNC connectors)
• Probe Setup: 0.5-1.75mm gap required
• System Length: 5.0m (16.4ft)

⚡ POWER & OUTPUT

• Voltage: +12 to +35VDC (28V typical)
• Signal: 4-20mA (2-wire loop)
• Current Limit: 23mA | Loop Load: ≤1000Ω
• Peak Frequency: 6,000Hz (±3dB)

📦 BUNDLE INCLUDES

• Transmitter Unit (0.43kg/0.9lbs)
• DIN Rail Mount Kit
• Optional: Certificate of Origin

🏭 TYPICAL USE CASE

Monitors conveyor belt motors in warehouses, detecting 7.2 mils vibration at 120Hz with 98% signal stability.

✅ WARRANTY

1-Year full replacement coverage.

Download PDF file here:990 Vibration Transmitter Datasheet
