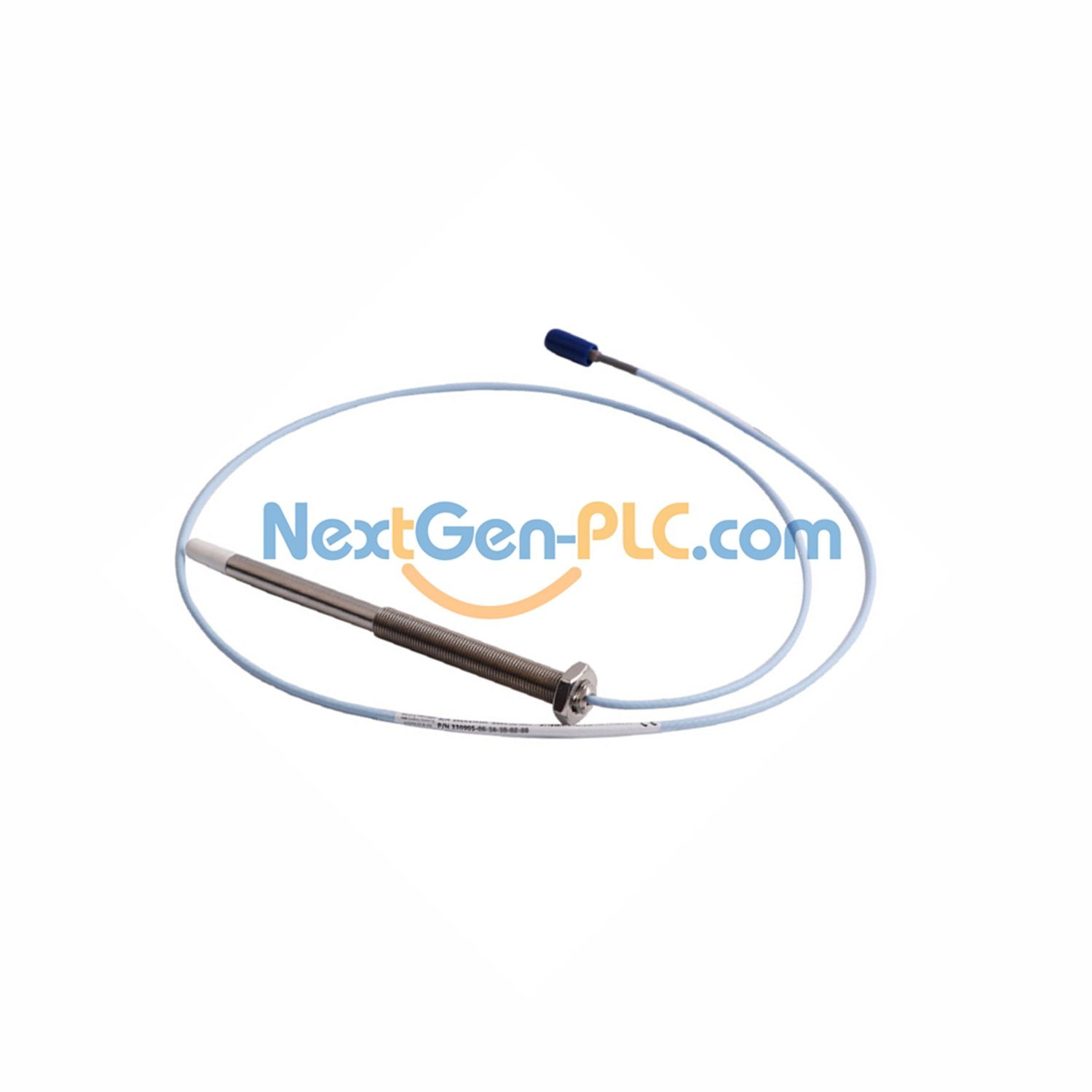

Bently Nevada – Reverse Mount Probe | 330907-05-30-05-02-CN

Bently Nevada 3300 NSv Vibration Probe

Product Identification

Model: 330907-05-30-05-02-CN

Type: Reverse Mount Probe

Origin: Made in USA

Certification: Country Specific (CN)

Optional: Certificate of Origin available

Key Specifications

• Measurement range: 0.25-1.75mm

• Output signal: -1V to -13V DC

• Probe resistance: 4.0Ω ±0.5Ω

• Operating temperature: -34°C to +177°C

• Cable length: 0.5 meter (20 in)

Model Configuration

330907-05-30-05-02-CN
├── 330907 : Base Model
├── 05     : M10x1 Thread
├── 30     : Standard Version
├── 05     : 0.5m Cable
├── 02     : ClickLoc Connector
└── CN     : Country Approval

Installation Details

• Recommended gap: 1.0mm from target

• Maximum torque: 7.5 N•m (66 in-lb)

• Thread engagement: 15mm maximum

• Cable type: Shielded triad (up to 305m)

• Connector: Gold-plated ClickLoc

Construction Materials

• Probe tip: PPS plastic (chemical resistant)

• Housing: 304 stainless steel

• Seal: Viton O-ring (pressure resistant)

• Weight: 14-150g (0.5-5.3oz)

Package Contents

• 1 × Vibration probe

• 0.5m cable assembly

• ClickLoc connector

• 12-month manufacturer warranty

• Optional COO documentation

Industrial Applications

• Process compressors

• Gas turbines

• Petrochemical equipment

• Power generation

• Heavy rotating machinery

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
