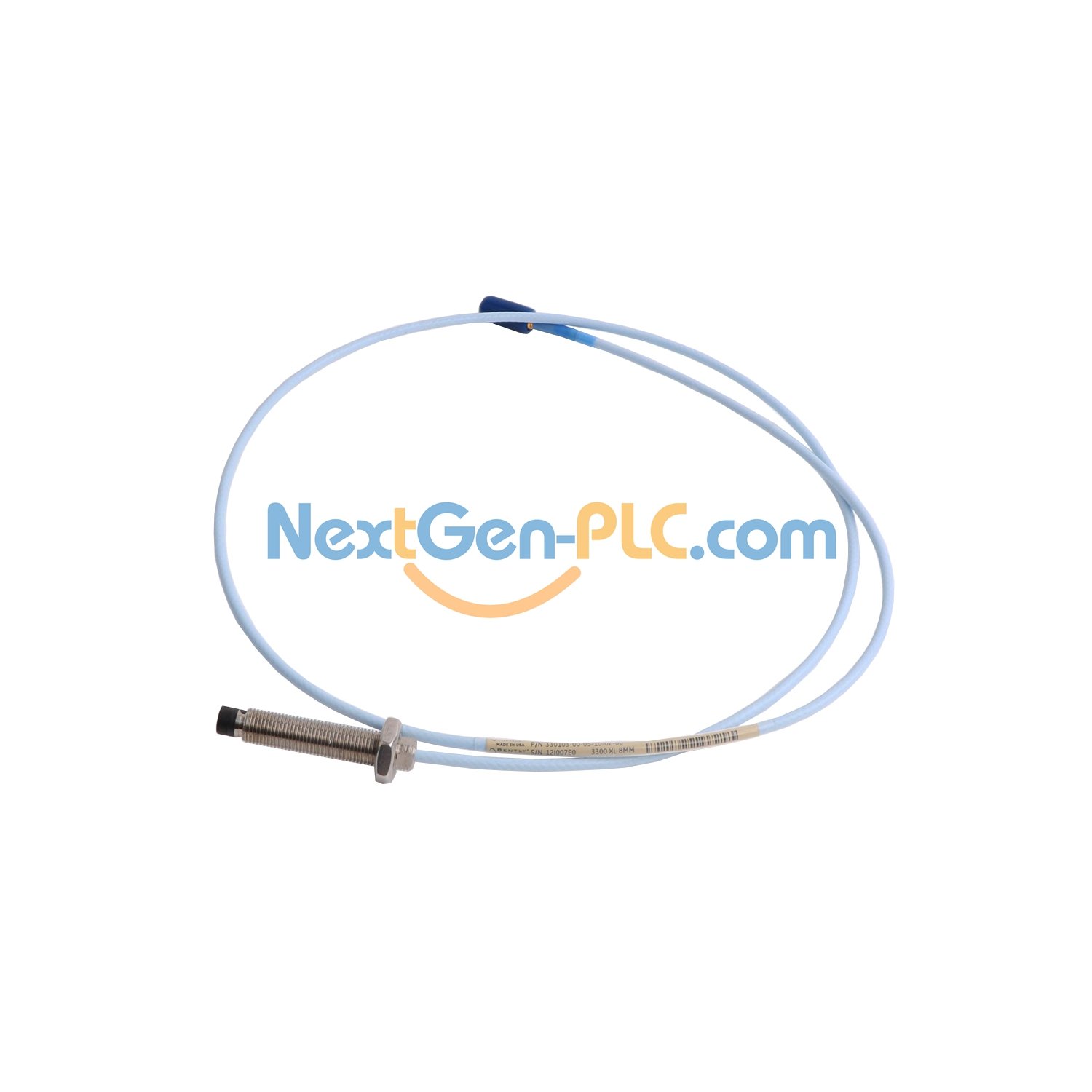

Bently Nevada New 5mm Proximity Probe 330171-00-08-50-02-CN

Bently Nevada 5mm Vibration Sensor Probe

Precision Machinery Monitoring

Industrial-grade vibration probe with 5mm PPS sensing tip and stainless steel casing. Features 1/4-28 UNF threading and 5-meter cable (16.4 feet). Made in USA for reliable equipment diagnostics.

Technical Specifications

Brand/Model: Bently Nevada 330171-00-08-50-02-CN

Detection Range: Optimized for 1.27mm gap

Temperature Range: -35°C to +177°C (-31°F to +351°F)

Power Requirements: -17.5 to -26 VDC

Cable Length: 5.0 metres / 16.4 feet

Case Length: 0.8 inches

Weight: 0.323 Kg

Thread Engagement: Max 0.375 inch

Installation Details

• Mounting tap size: #3 or larger
• Recommended torque: 5.1 N·m (45in·lb)
• Maximum torque: 7.3 N·m (65in·lb)
• Minimum bend radius: 25.4mm (1.0in)

Compatibility & Certifications

• Miniature coaxial ClickLoc connector
• Country-specific approvals (CN option)
• Certificate of Origin available
• Compatible with 3300 monitoring systems

Packaging & Support

• Vibration probe with 5m cable
• ClickLoc connector included
• Product documentation
• 1-year manufacturer warranty

Industrial Applications

• Gearbox vibration analysis
• Motor bearing health monitoring
• Compressor shaft diagnostics
• Turbine protection systems

Download PDF file here:3300 5 mm Transducer System Datasheet – 172036
