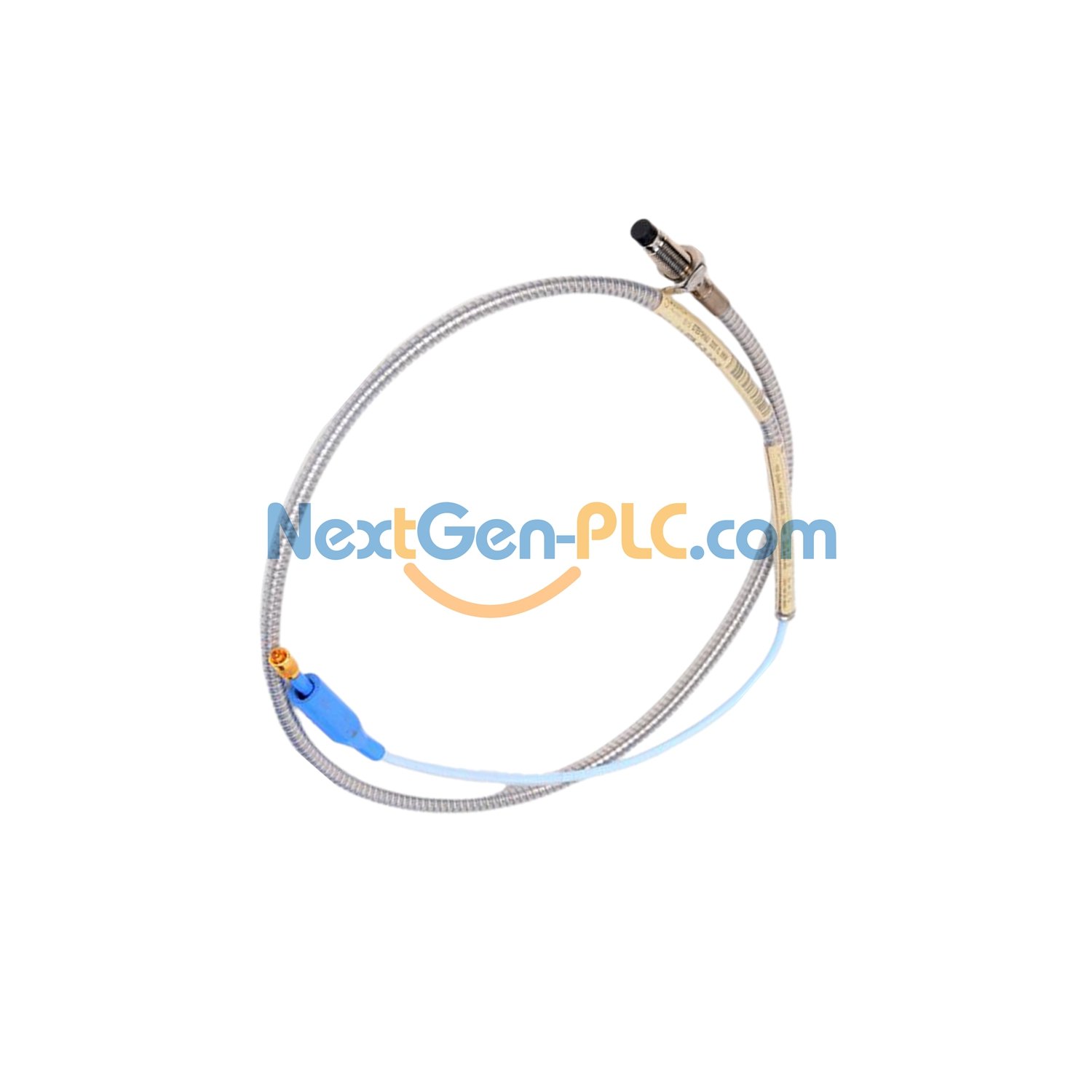

Bently Nevada | 330905-05-25-05-01-00 | Proximity Probes

3300 NSv Proximity Probes – Easy-to-Use Eddy Current Sensors

What’s This Product?

The 3300 NSv Proximity Probe is made by Bently Nevada. It’s a sensor that measures position and vibration. It’s better than old 3300 RAM probes at resisting chemicals, so it works well in compressors. It also has better side views than 3000-series 190 probes when placed close to targets.

Model Numbers Explained (Part Number: 330905-05-25-05-01-00)

• 330905: Basic model – M10X1 thread, no armor
• -05: Unthreaded part length – 50 mm
• -25: Case length – 250 mm
• -05: Total probe length – 0.5 m (20 inches)
• -01: Connector type – Small coaxial ClickLoc with protector, standard cable
• -00: No need for agency approval

Key Specs

Main Features:

Linear range: 1.5 mm (60 mils), works from 0.25 mm to 1.75 mm (10-70 mils)
Best gap: 1.0 mm (40 mils)
Scale factor: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
Frequency: 0-10 kHz (max 305m wiring)
Temp range: -52°C to +177°C (-62°F to +351°F)
Electric Details:

Probe resistance (0.5m): 4.0 ±0.5 ohms
Cable resistance: 0.220 Ω/m (center), 0.066 Ω/m (shield)
Cable capacitance: 69.9 pF/m (typical)
Physical Features:

Tip material: PPS (polyphenylene sulfide)
Case material: AISI 304 stainless steel
Cable type: 75 Ω coaxial with FEP insulation (lengths: 0.5m, 1m, 5m, 7m)
Min bend radius: 25.4 mm (1.0 inch)

How to Install

Torque: Use finger tight. Max: 0.56 N•m (5 in•lb)
Thread (M10X1): Max 15 mm deep
Wiring: Use 3-conductor shielded cable (0.2-1.5 mm²). Max length: 305 m (1,000 ft)

Works With

It fits Bently Nevada’s 3300 RAM probes and extension cables, both in parts and electrics.

Certifications

No agency approvals needed (suffix -00).

What’s in the Box

3300 NSv Probe (M10X1 thread)
0.5m coaxial cable
Small ClickLoc connector with protector
