Bently Nevada | 330905-00-15-05-02-00 3300 NSv Probe

Bently Nevada 3300 NSv Proximity Probe: Compact Industrial Sensing

Precision Vibration Measurement

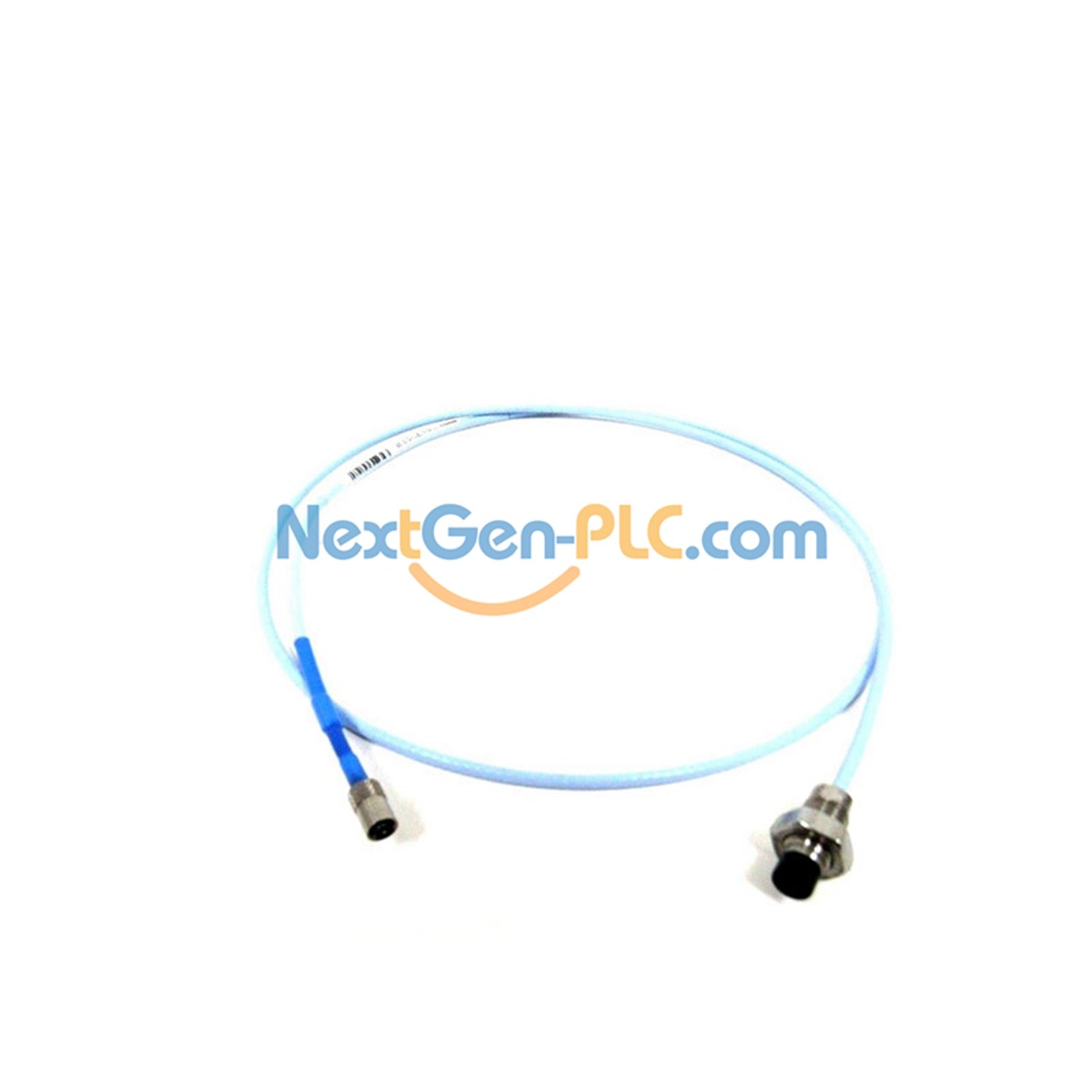

New 330905-00-15-05-02-00 proximity probe with 0.5-meter cable and M10X1 threading. Features chemical-resistant PPS tip and 150mm stainless steel case. Direct upgrade for 3300 RAM systems with enhanced performance.

Technical Highlights

Brand/Model: Bently Nevada 330905-00-15-05-02-00
Range: 1.5 mm (60 mils) from 0.25-1.75mm
Accuracy: ±0.06 mm (±2.3 mils) deviation
Output: -1 to -13 Vdc linear signal
Temp Range: -52°C to +177°C extreme operation
Cable: 0.5 meter FEP-insulated coaxial
Thread: M10X1 with 150mm case length

Performance Features

• Low 4.0Ω probe resistance for stable readings
• 69.9 pF/m cable capacitance minimizes signal loss
• 0-10 kHz frequency response (±3dB) at 305m distance
• Viton O-ring seals against pressure differentials
• 25.4 mm minimum bend radius protects cables

Quick Installation Guide

• Set optimal gap at 1.0 mm (40 mils)
• Apply max 0.56 N•m torque (finger tight plus 1/4 turn)
• Use flat targets >13mm diameter for best accuracy
• Maintain 25.4mm cable bend radius during routing

Compatibility & Certifications

Fully compatible with 3300 XL NSv Proximitor Sensors and legacy 3300 RAM systems. No agency approvals required.

What You Receive

• Factory-new probe with 0.5m cable
• ClickLoc miniature coaxial connector
• Technical documentation
• 12-month manufacturer warranty

Industrial Applications

• Compressor shaft vibration monitoring
• Steam turbine position measurement
• Chemical processing equipment
• Power generation systems
• Rotating machinery protection

Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
