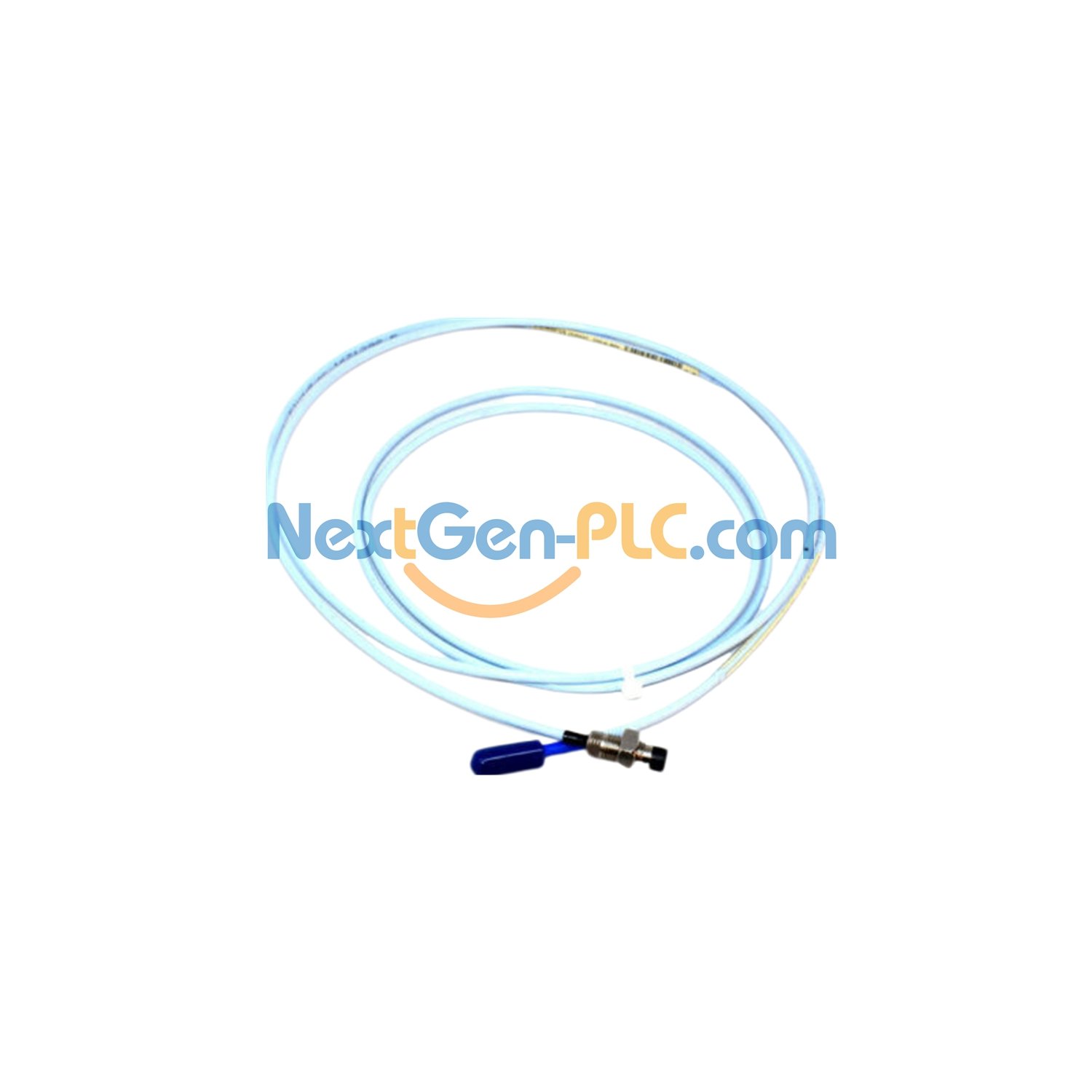

Bently Nevada | 330191-00-33-15-05 | 3300 XL 8 mm ETR Probe

Premium 3300 XL Proximity Probe for Industrial Monitoring

Product Overview

Bently Nevada’s 330191-00-33-15-05 proximity probe delivers reliable vibration measurement with enhanced durability. Featuring 8mm diameter and patented TipLoc/CableLoc technology, this new probe withstands physical stress better than previous models. Optional FluidLoc cable prevents oil leaks through cable interiors.

Key Specifications

• Brand: Bently Nevada
• Model: 3300 XL 8 mm ETR Probe (Full suffix: 00-33-15-05)
• Thread: 3/8-24 UNF
• Length: 1.5m total (3.3in case length)
• Power: -17.5Vdc to -26Vdc
• Output: 50Ω resistance
• Accuracy: <2mV/V sensitivity
• Temp Range: -55°C to +232°C
• Resistance: 7.73Ω ±0.50Ω at 1.5m

Durability Features

• PPS plastic tip with Vitron® O-ring seal
• Stainless steel case (AISI 303/304)
• 330N pull strength at cable connection
• Gold-plated connectors (0.565 N•m torque max)

Installation Notes

• Connect per drawing 140979
• Max thread engagement: 0.563 in
• Works with BN extension cables
• No extension needed for 1m systems

Certifications & Support

• Multiple agency approvals (Suffix 05)
• EPL Ga/Gc and Dc compliant
• Includes factory warranty: 12 months
• Packaging: Original factory sealed

Real-World Applications

• Turbine vibration monitoring at 10,000 RPM
• Pump shaft displacement measurement
• Motor bearing protection systems
• Compressor condition monitoring

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
