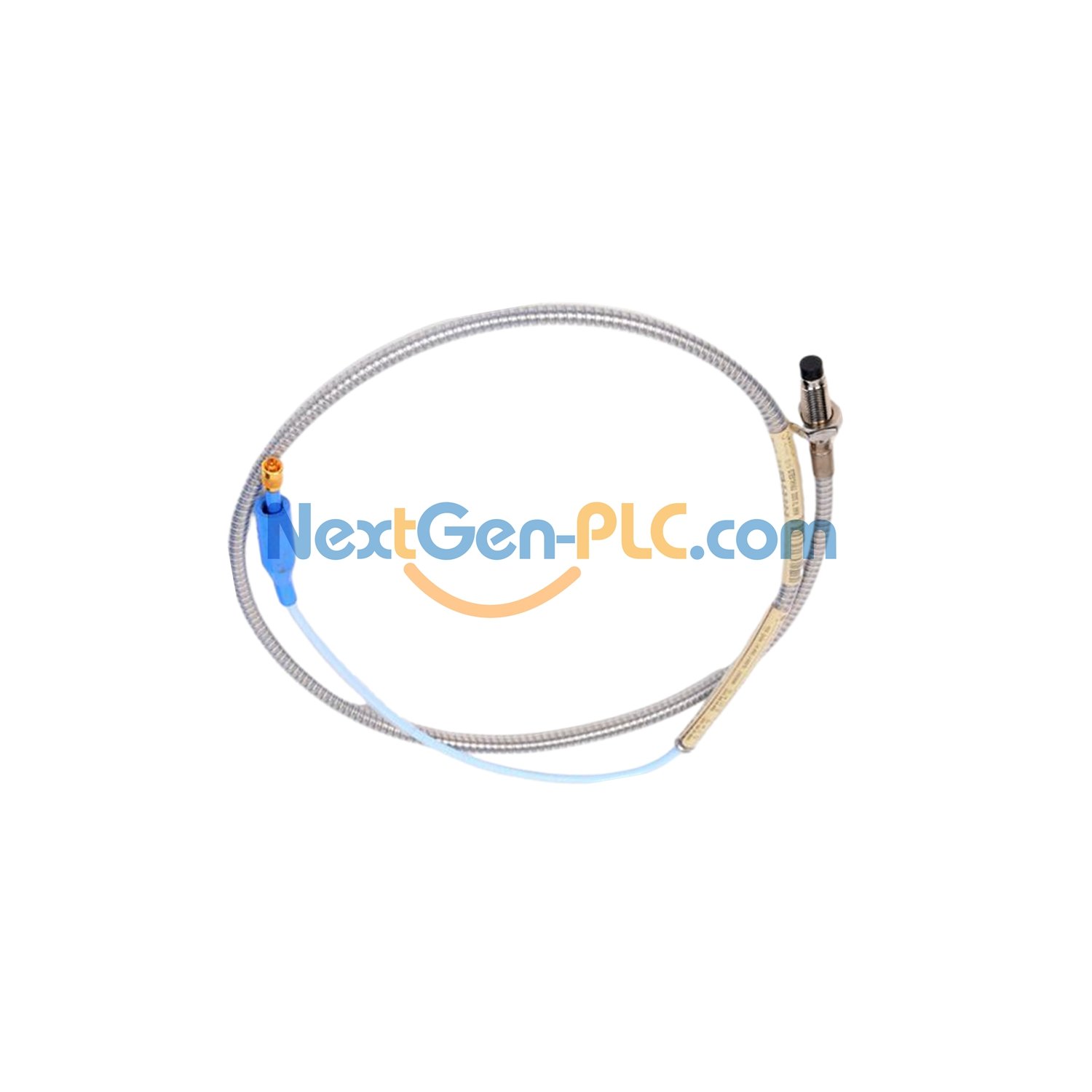

Bently Nevada 330104-00-05-05-02-00 3300 XL 8 mm Proximity Probe

What It Is

A durable industrial sensor from Bently Nevada, this 3300 XL 8 mm probe measures without contact. Built with a strong stainless steel case and PPS plastic tip, it’s made for long-term use in tough environments.

Model Code Breakdown

The full model 330104-00-05-05-02-00 shows key details:

330104: Base 8 mm probe (M10 x 1 thread, armored)
00: No unthreaded part (0mm)
05: Case length (50mm)
05: Cable length (0.5m/1.6ft)
02: Connector (small coaxial ClickLoc, standard cable)
00: No extra approvals needed

Main Specs

Brand: Bently Nevada
Type: 3300 XL 8 mm Proximity Probe
Resistance: 7.45 ± 0.50 Ω (0.5m cable)
Materials:
Tip: PPS plastic (strong and heat-resistant)
Case: AISI 303/304 stainless steel (rust-proof)
Seal: Viton® O-ring to handle pressure differences
Power: Needs -17.5Vdc to -26Vdc (nonincendive) or -23Vdc to -26Vdc (with barriers)
Sensitivity: Output changes <2mV per 1V input
Output Resistance: 50 Ω
Work Temp: 18°C–27°C (64°F–80°F)
Max Height: 2000 meters

Install Tips

Use with a -24Vdc power supply and 10kΩ load. For nonincendive setups, follow drawing 140979. Keep voltage below -23.5Vdc to keep full range.

Works With

Pairs with 3300-series 5mm probes, 3300 XL 8mm probes, and matching extension cables. Best with AISI 4140 steel targets.

Certifications

No agency approvals required (option 00).

In the Box

Probe unit and user manual (standard package).
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
