Bently Nevada | 330103-00-13-20-12-05 | 8 mm Proximity Probes

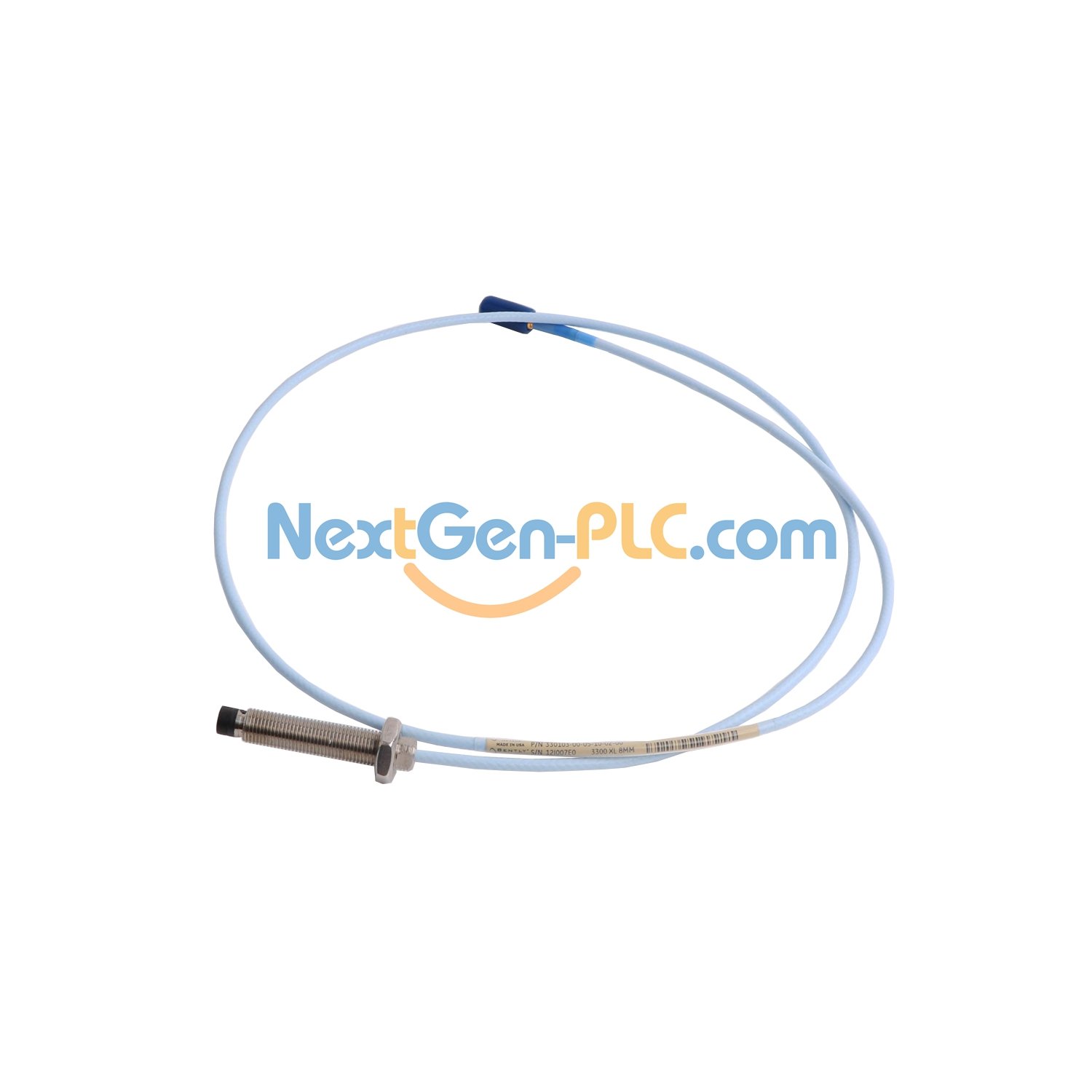

Bently Nevada 330103-00-13-20-12-05 3300 XL 8 mm Proximity Probe

Description

A robust industrial proximity probe from Bently Nevada, designed for reliable machine monitoring. The 3300 XL 8 mm sensor features durable construction and advanced sealing, ideal for measuring radial vibration and critical parameters in harsh environments.

Model Suffix Breakdown

330103-00-13-20-12-05:

330103: Base model – 3300 XL 8 mm probe with M10x1 thread (no armor)
00: Unthreaded length – 0mm
13: Overall case length – 130mm
20: Total cable length – 2.0 meters (6.6 feet)
12: Connector type – Miniature coaxial ClickLoc with FluidLoc cable
05: Agency approvals – CSA, ATEX, IECEx

Key Specifications

Linear Range: 2mm (80 mils), from 0.25mm (10 mils) to 2.3mm (90 mils) (-1 to -17 Vdc)
Recommended Gap: -9 Vdc (~1.27mm/50 mils)
DC Resistance: 7.88 ± 0.50Ω (2.0m probe)
Temperature Range:
Standard: -52°C to +177°C (-62°F to +350°F)
Extended (probe tip): -52°C to +218°C (-62°F to +425°F)
Extended (cable/connector): -51°C to +260°C (-60°F to +500°F)

Materials & Design

Probe Tip: Polyphenylene sulfide (PPS)
Case: AISI 303/304 stainless steel
Sealing: Viton® O-ring (pressure-sealed, not pre-tested)

Wiring & Installation

Field Wiring: 0.2-1.5 mm² (16-24 AWG), 3-conductor shielded triad recommended
Max Length: 305 meters (1,000 feet) between probe and monitor

Safety Certifications

Intrinsically Safe (ia): Class I Zone 0, Groups A/B/C/D; Class II E/F/G; Class III
Nonincendive (nA/ec): Class I Zone 2, Division 2 Groups A/B/C/D
Additional Approvals: CSA, ATEX, IECEx

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
