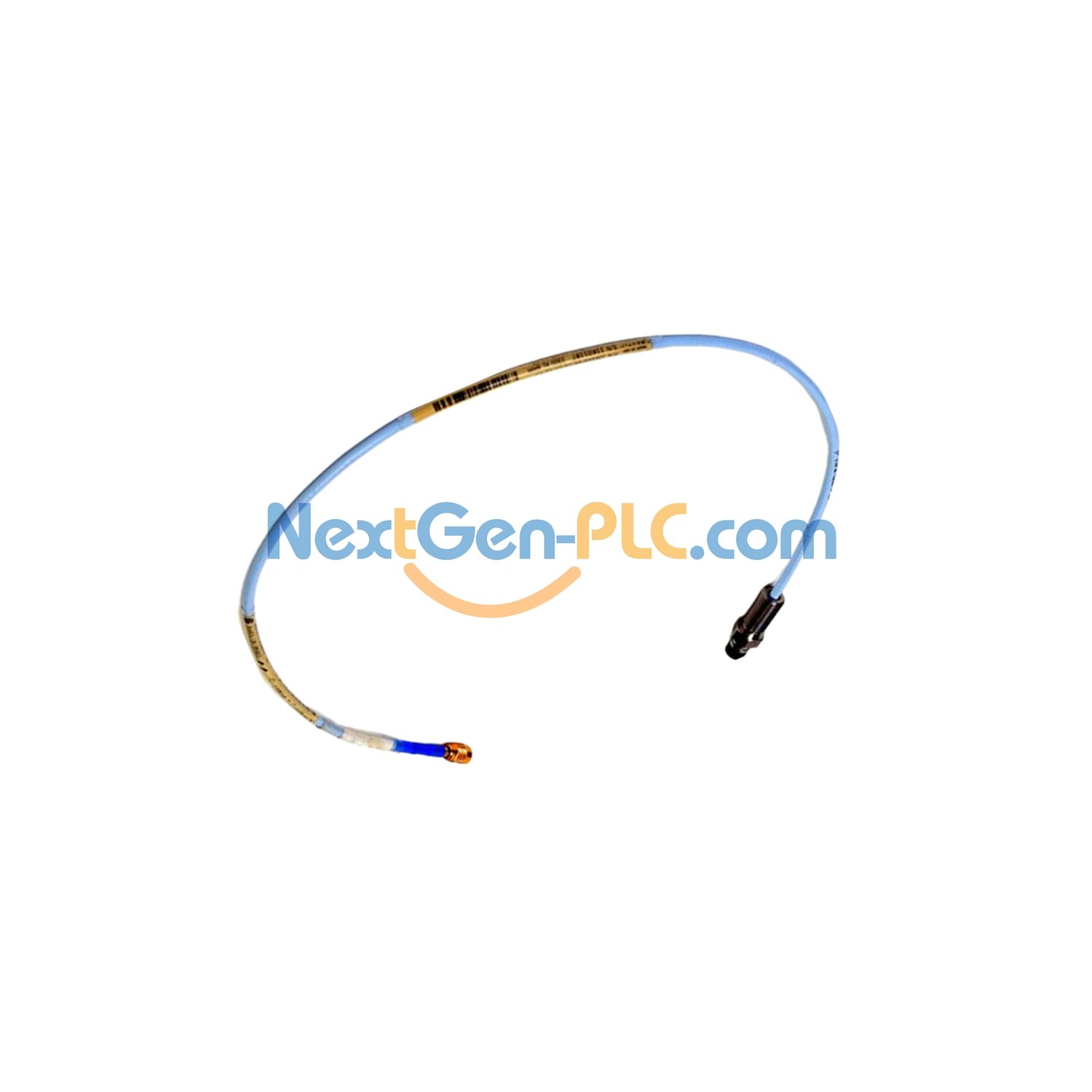

Bently Nevada 3300 XL 8mm Proximity Probe
Precision vibration monitoring for industrial machinery
Model 330102-00-35-10-02-00
3.5-inch stainless steel probe with 1m cable and ClickLoc connector
Size
8mm
Case Length
3.5 in
Cable
1m
Temp Range
-52°C to +177°C
Key Features
- Stainless steel construction (AISI 303/304)
- PPS probe tip for chemical resistance
- 3/8-24 UNF threaded mounting
- Viton® O-ring pressure seal
- Measurement range: 0.25-2.3mm (10-90 mils)
Model Breakdown
| Code | Option | Selection |
|---|---|---|
| 330102 | Base Model | 8mm Probe |
| 00 | Unthreaded Length | 0 in |
| 35 | Case Length | 3.5 in |
| 10 | Cable Length | 1.0 m |
| 02 | Connector | ClickLoc |
Installation Guide
- Optimal gap setting: 1.27mm (50 mils)
- Max thread engagement: 0.563 in
- Minimum operating temperature: -34°C
- Use shielded triad cable (16-24 AWG)
Package Contents
- 1 × 3300 XL 8mm Proximity Probe
- 1 × 1.0m cable with ClickLoc connector
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
