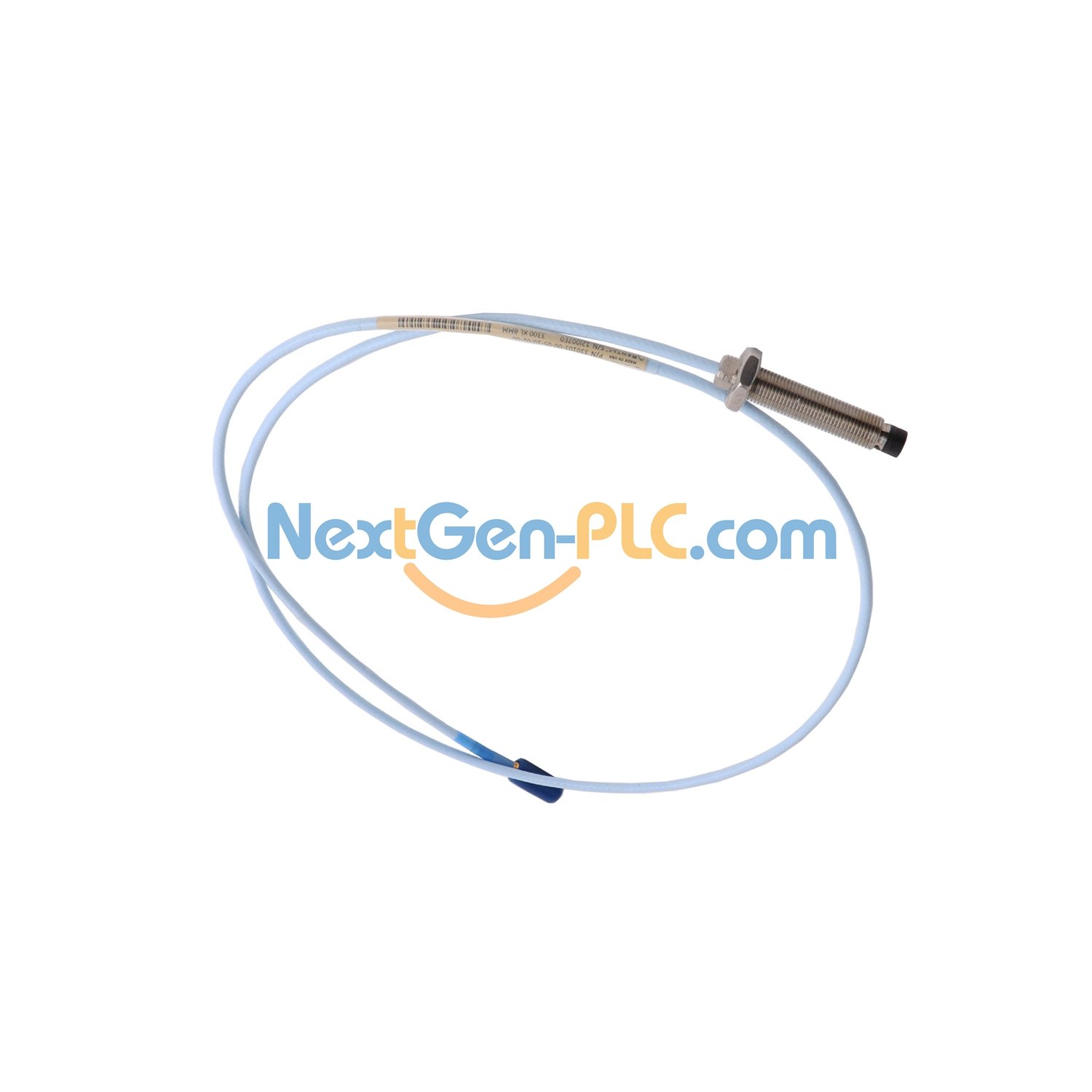

Bently Nevada 330709-000-230-10-02-00 3300 XL 11mm Proximity Probe
What It Is
This 11mm proximity probe from Bently Nevada helps check machinery. It uses a M16x1.5 thread and has no armor. Good for tough jobs.
Model Numbers Explained
The full model is 330709-000-230-10-02-00.
000: No unthreaded part (0mm)
230: Case length is 230mm
10: Total cable length 1.0m (3.3ft)
02: Small ClickLoc connector + basic cable
00: No extra certifications needed
Key Features
Resistance: 5.9Ω (with 1.0m cable, ±0.5Ω)
Case: Made of 304 stainless steel (strong, resists rust)
Tip: PPS material (works well in heat)
Cable: 75Ω triaxial FEP insulation (available in 1m/5m/9m)
Temperature Info
Works and stores from -52°C to 177°C (-62°F to 351°F). Below -34°C may break seals.
How to Install
Case torque: 63.3N•m (560in•lb)
Connector torque: Tighten by hand (max 0.565N•m/5in•lb)
Bend: Min 25.4mm (1.0in) with/without armor
Thread: M16x1.5, max 24mm deep
What It Fits
Flat targets: Need ≥30.5mm (1.2in) wide
Shafts: Need ≥152mm (6.0in) wide
Used in: Turbines, pumps, compressors (checks vibration/position)
Package & Warranty
Comes with: Probe, 1.0m cable, ClickLoc connector.
Warranty: 1 year (covers material or workmanship issues).
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
