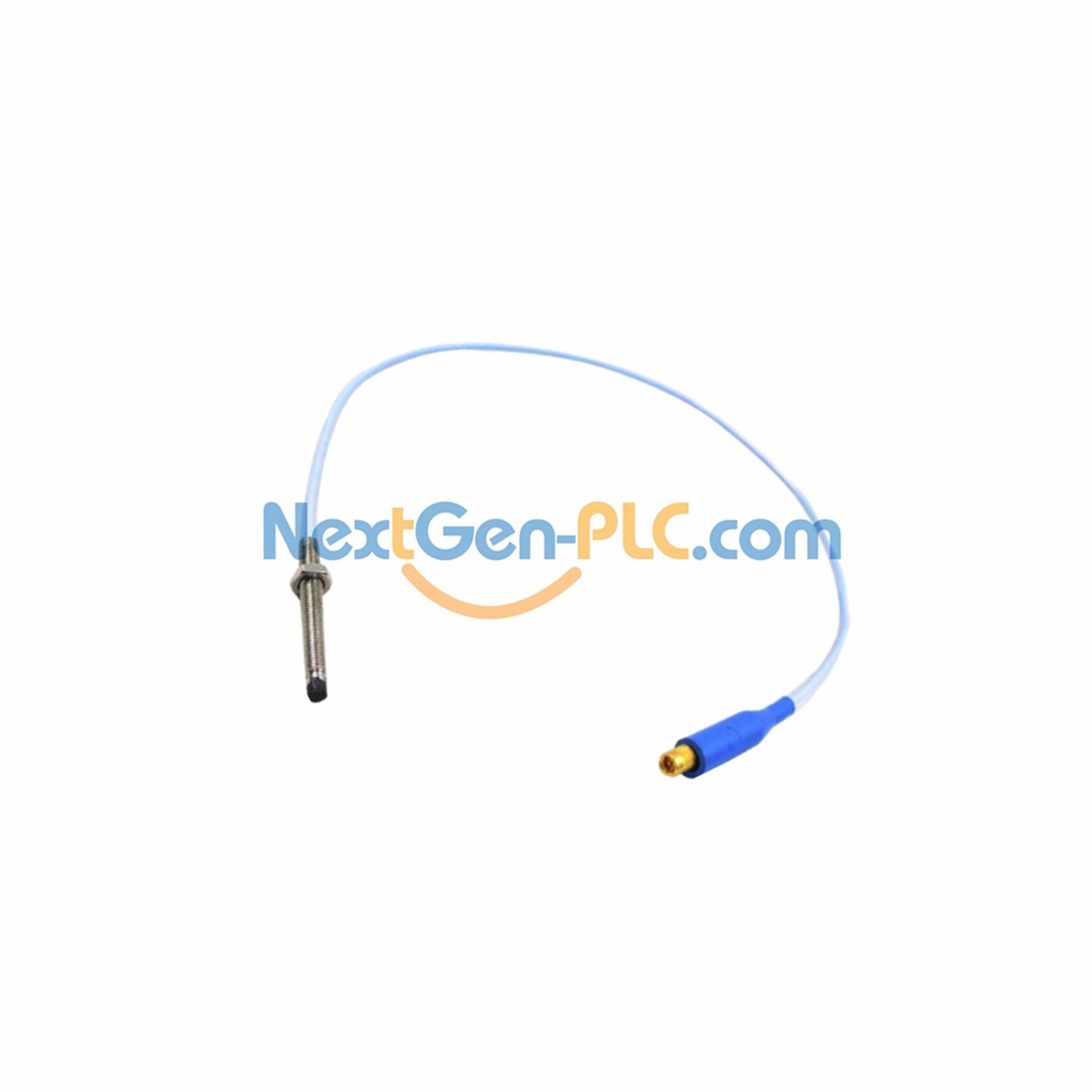

Bently Nevada 3300 XL 11 mm Probe – 330703-000-070-10-02-00

Bently Nevada 330703-000-070-10-02-00 3300 XL 11mm Metric Proximity Probe

Quick Overview

A premium eddy current sensor designed for precise machine condition monitoring. Ideal for measuring shaft position, vibration, and speed in industrial rotating equipment. Brand new, factory-sealed, backed by a 12-month warranty.

Key Specifications

Brand: Bently Nevada (trusted leader in industrial monitoring)
Model: 3300 XL 11mm Proximity Probes (Metric)
Part Number: 330703-000-070-10-02-00
Condition: 100% new, original factory packaging
Design Features: M14x1.5 thread (no armor), 70mm case length, 1.0m total cable with Miniature coaxial ClickLoc connector

Technical Data

DC Resistance: 5.9 ± 0.5 ohms (1.0m probe)
Magnetic Field Sensitivity (60Hz, 300 Gauss):
0.001 V/mil pp at 0.5mm gap
0.009 V/mil pp at 2.5mm gap
0.027 V/mil pp at 4.6mm gap
Materials:
Tip: Polyphenylene sulfide (PPS)
Case: AISI 304 stainless steel
Cable: 75Ω triaxial, FEP-insulated (available in 1m/5m/9m lengths)
Temperature Range:
Operating/Storage: -52°C to +177°C (-62°F to +351°F)
Note: Avoid temps < -34°C (-30°F) to prevent seal damage

Installation Guide

Max Torque: 63.3 N•m (560 in•lb)
Recommended Torque: 21.1 N•m (187 in•lb)
Thread Engagement: M14x1.5, max 21mm

Compatibility & Certifications

Works with 3300 XL Proximitors and extension cables (full component interchangeability).
Temperature classifications:
EPL Ga/Gc: T1 (-55°C to +232°C) to T5 (-55°C to +40°C)
EPL Dc: T280°C (at -55°C to +232°C) to T90°C (at -55°C to +40°C)

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
