Bently Nevada | 3300 5mm Probe 330173-00-02-10-02-CN

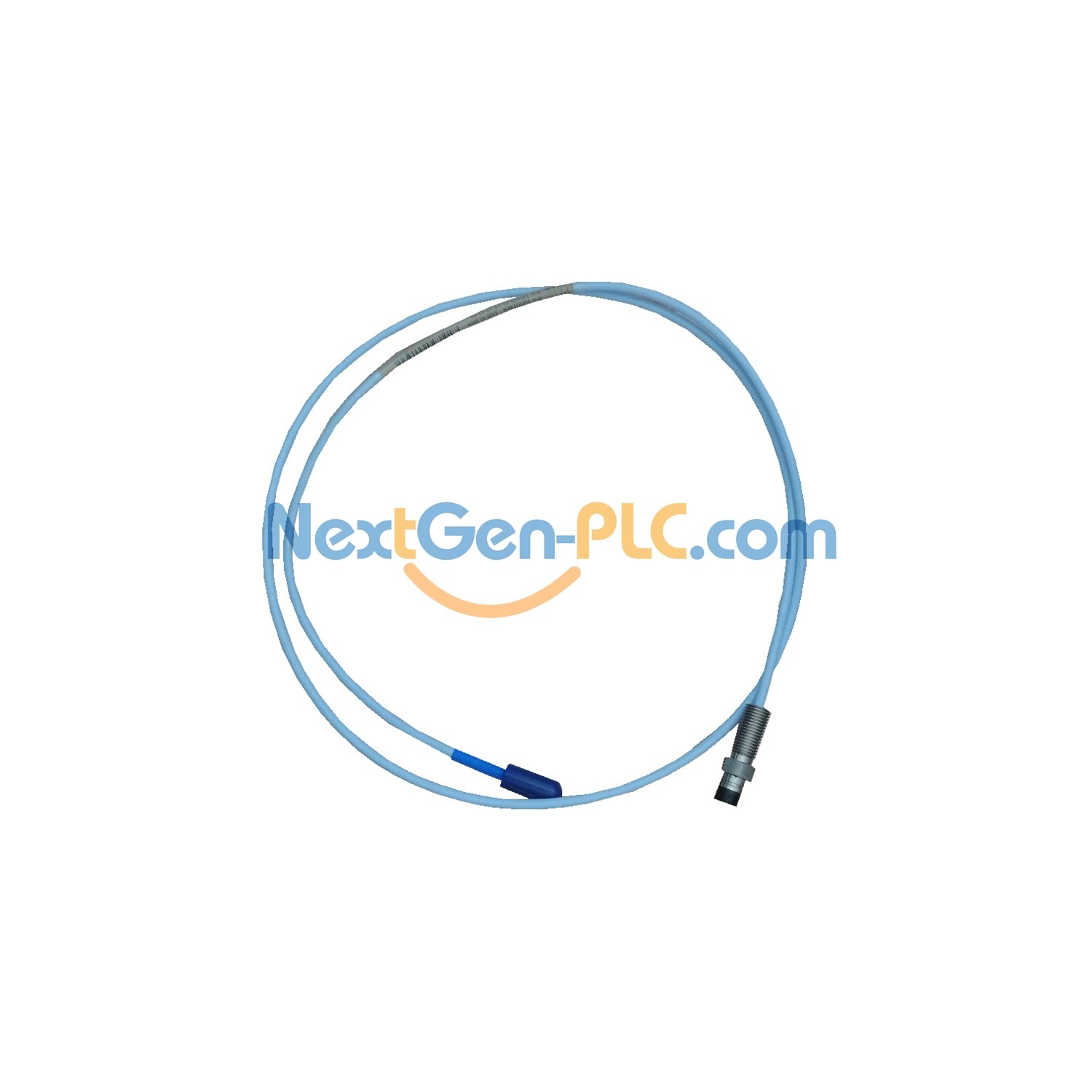

Bently Nevada Compact Industrial Probe

Precision 20mm vibration sensor with country-specific approvals for machinery health monitoring.

Essential Features

✓ 5mm sensing tip with PPS material
✓ 20mm stainless case (02 option)
✓ 1.0m FEP cable with ClickLoc connector
✓ Country-specific approvals (CN)

Technical Specifications

Brand/Model: Bently Nevada 330173-00-02-10-02-CN
Electrical: -17.5 to -26 VDC power, 12mA max
Resistance: 7.59±0.50Ω (1m cable)
Output: 50Ω analog signal
Sensitivity: <2mV/V variation
Temperature: -35°C to +177°C
Materials: PPS tip + 304 SST housing

Robust Construction

• 222N tensile strength at connection points
• Gold-plated contacts for reliable signal
• 25.4mm min bend radius
• 0.323kg lightweight design

Installation Guide

Mount with M8×1 thread at 1.27mm gap. Apply 5.1-7.3N·m torque. Avoid temperatures below -34°C.

System Compatibility

Designed for Bently Nevada 3300/3500 systems. Ideal for pumps, fans, and motors operating at 600-3600 RPM.

Certifications

Meets country-specific requirements (CN option). Complies with industrial safety standards.

Package Contents

Vibration probe, 1.0m cable, ClickLoc connector. Optional COO available.

Quality Assurance

1-year warranty against defects. Precision manufactured in USA.

Industrial Application

Monitors cooling fan vibrations in HVAC systems, detecting 0.08mm imbalances at 1200 RPM with ±1% accuracy.

Download PDF file here:3300 5 mm Transducer System Datasheet – 172036
