Armored 11 mm Probe | Bently Nevada – 330708-00-10-90-02-00

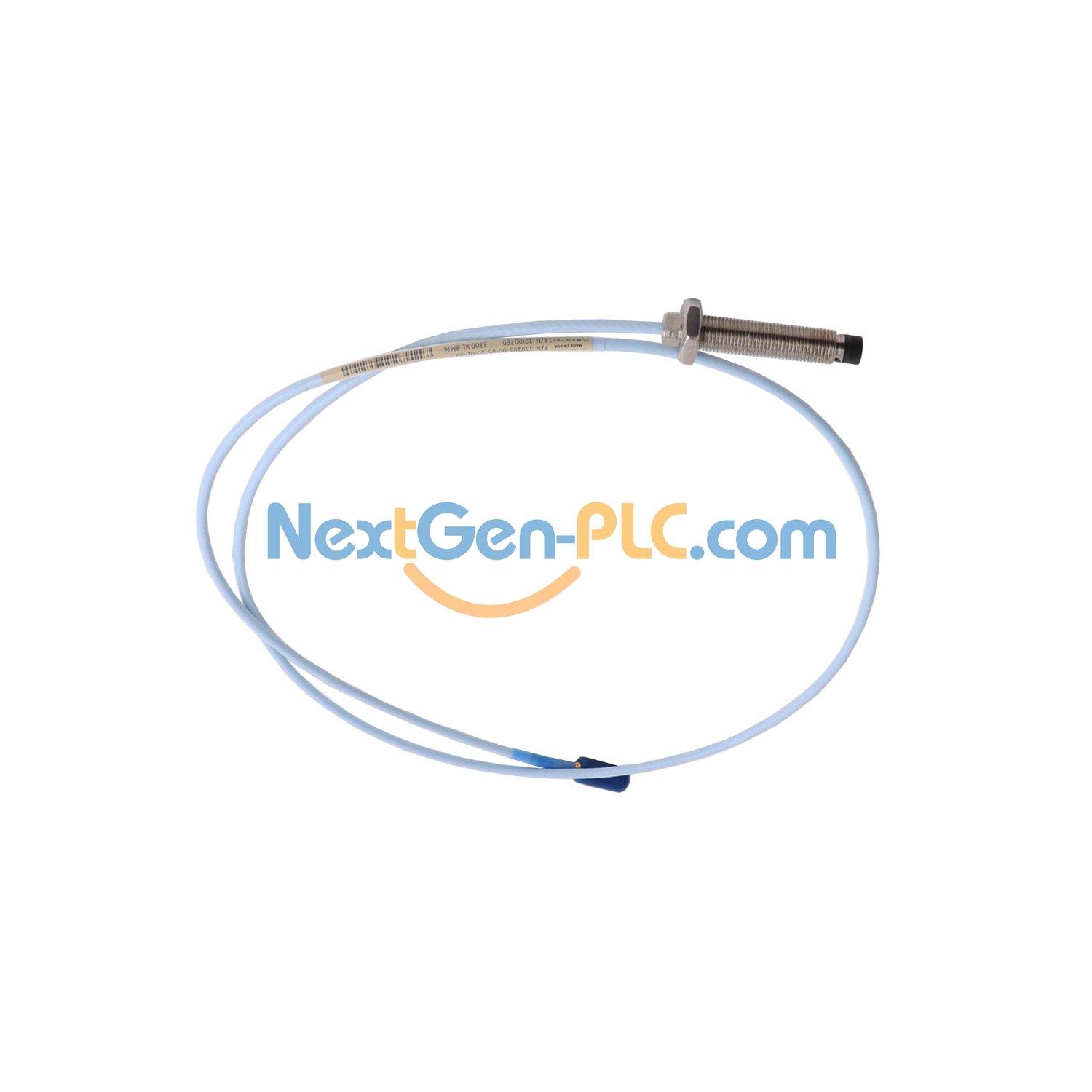

Bently Nevada 3300 XL 11 mm Proximity Probe (330708-00-10-90-02-00)

The 3300 XL 11 mm Proximity Probe from Bently Nevada is a top sensor. It measures vibration and movement in machines without touching them. Great for turbines and compressors. Works well in tough places. Strong build. Wide temperature range.

Product Suffix Meaning

330708: 3300 XL 11 mm Probe, 5/8-18 UNF thread, no armor
00: Unthreaded Length: 0 in
10: Case Length: 1.0 in
90: Total Length: 9.0 meters (29.5 feet)
02: Small ClickLoc connector, standard cable
00: No agency approval needed

Tech Specs

Brand: Bently Nevada
Model: 330708-00-10-90-02-00
Tip Material: Polyphenylene sulfide (PPS)
Case Material: 304 stainless steel
Cable: 75 Ω triaxial, FEP insulated (9m)
Temp Range: -51°C to +177°C (-60°F to +351°F)
Resistance: 5.9 ± 0.5 ohms (1m cable)
Weight: 0.17 Kg

How to Install

Thread: 5/8-18 UNF (max fit: 0.938 in)
Torque: 15.2 N•m (133 in•lb)
Connector: Finger-tight (max 0.565 N•m / 5 in•lb)
Bend Radius: 25.4 mm (1.0 in)

What It Fits

Fits 3300 XL systems. Needs software setup for 3500 systems. Replaces older 7200 series 11mm/14mm sensors (upgrade all parts to 3300 XL).

Certifications

EMC: Meets European EMC standards
RFI/EMI: Resists radio interference
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
