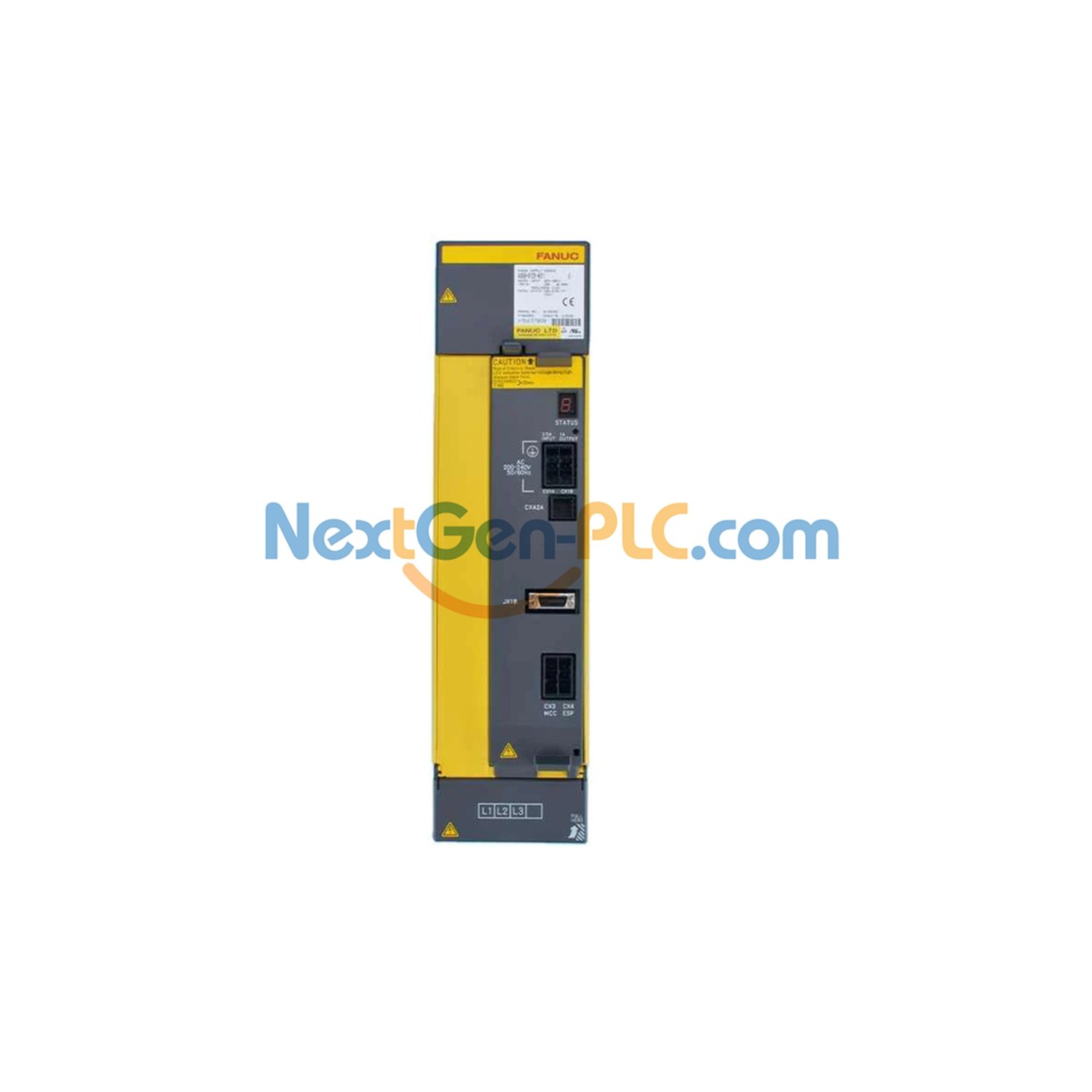

A06B-6290-H209 FANUC Servo Amplifier Module | 400-480 VAC 3-Phase

FANUC A06B-6290-H209 Servo Amplifier Module Overview

• Precise power delivery – The module outputs 22.5A on both the L-axis and M-axis. It handles substantial loads with consistent accuracy.
• Wide frequency range – It operates within an output frequency range of 0 to 550 Hz. This flexibility supports diverse motor speed requirements.
• Rugged environmental tolerance – The unit functions reliably in ambient temperatures from 0°C to 55°C. It suits both standard and challenging production floors.
• Efficient 3-phase input – It accepts an input voltage of 565 to 679 VDC. The rated input current reaches 33.5A at 585V for stable energy use.
• Compact and robust construction – Dimensions measure 378 mm in length, 58 mm in width, and 168 mm in height. The unit weighs 5.5 kg (12.12 lbs.) for easy integration into cabinets.

Technical Specifications

• Manufacturer: FANUC
• Product Line: A06B
• Model: A06B-6290-H209
• Type: Servo Amplifier Module
• Output Voltage: 400–480 VAC
• Rated Output Current: 22.5A (L-axis), 22.5A (M-axis)
• Output Frequency Range: 0–550 Hz
• Input Voltage: 565–679 VDC
• Rated Input Current: 33.5A at 585V
• Input Frequency: 50/60 Hz
• Number of Phases: 3-phase
• Ambient Operating Temperature: 0°C to 55°C
• Dimensions (L x W x H): 378 mm x 58 mm x 168 mm

Frequently Asked Questions (FAQ)

• Is this unit brand new and original?
  Yes, we supply a brand new and original FANUC A06B-6290-H209 module. It comes directly from authorized sources.
• What is the current stock status?
  We have this servo amplifier module in stock. Orders ship within 5 business days after payment confirmation.
• Which carriers do you use for shipping?
  We ship using DHL, FedEx, and UPS. We choose the most reliable option based on your location.
• Does this module support both L-axis and M-axis control?
  Yes, the A06B-6290-H209 delivers 22.5A for both axes, enabling dual-axis servo control in a single unit.
• Can I return this product?
  We accept returns within 30 days of delivery. Items must remain in original condition.
• What is the input frequency compatibility?
  The module works with 50 Hz and 60 Hz input power systems, offering flexibility for global installations.
