A06B-6240-H103 FANUC Servo Amplifier Module 6.5A 200-240V

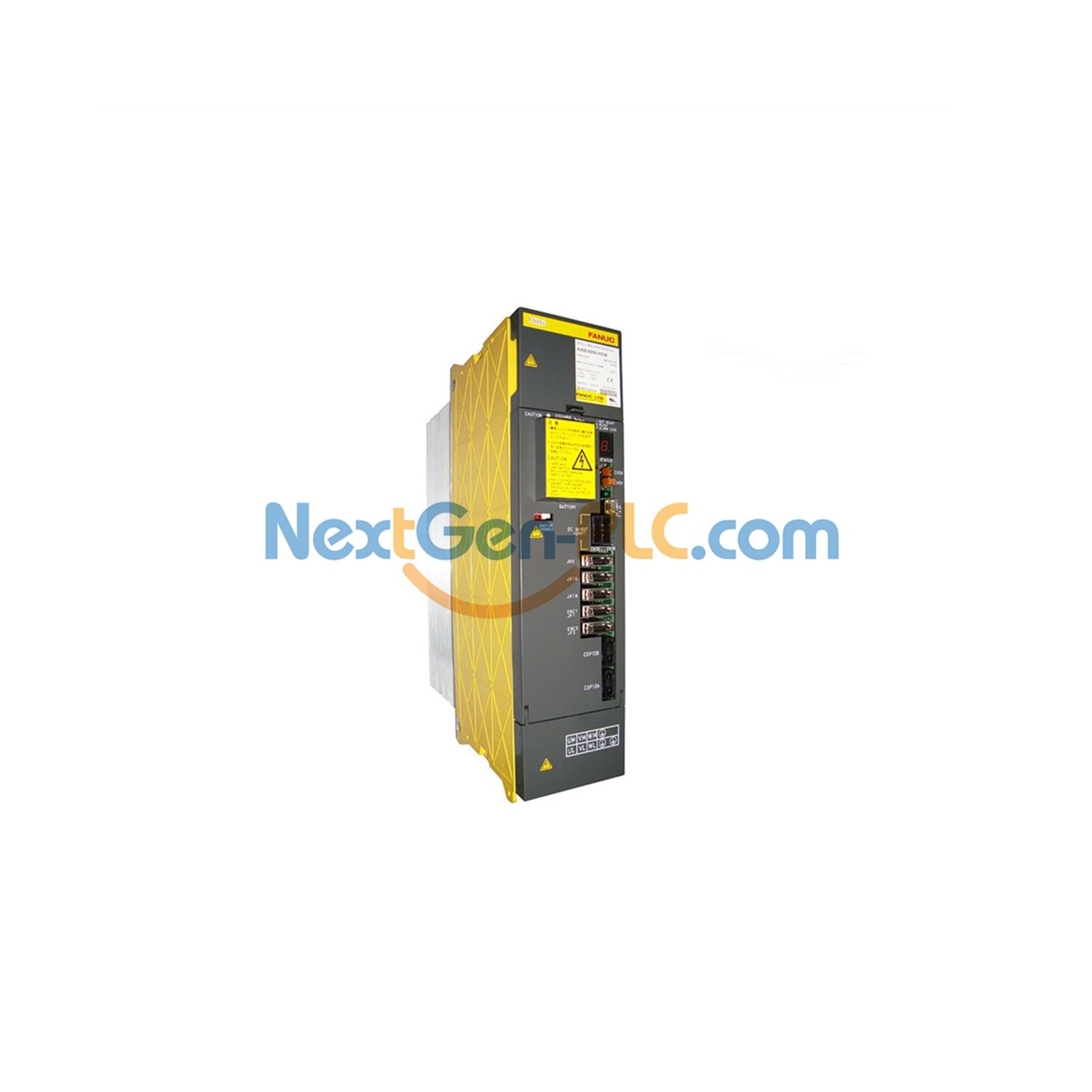

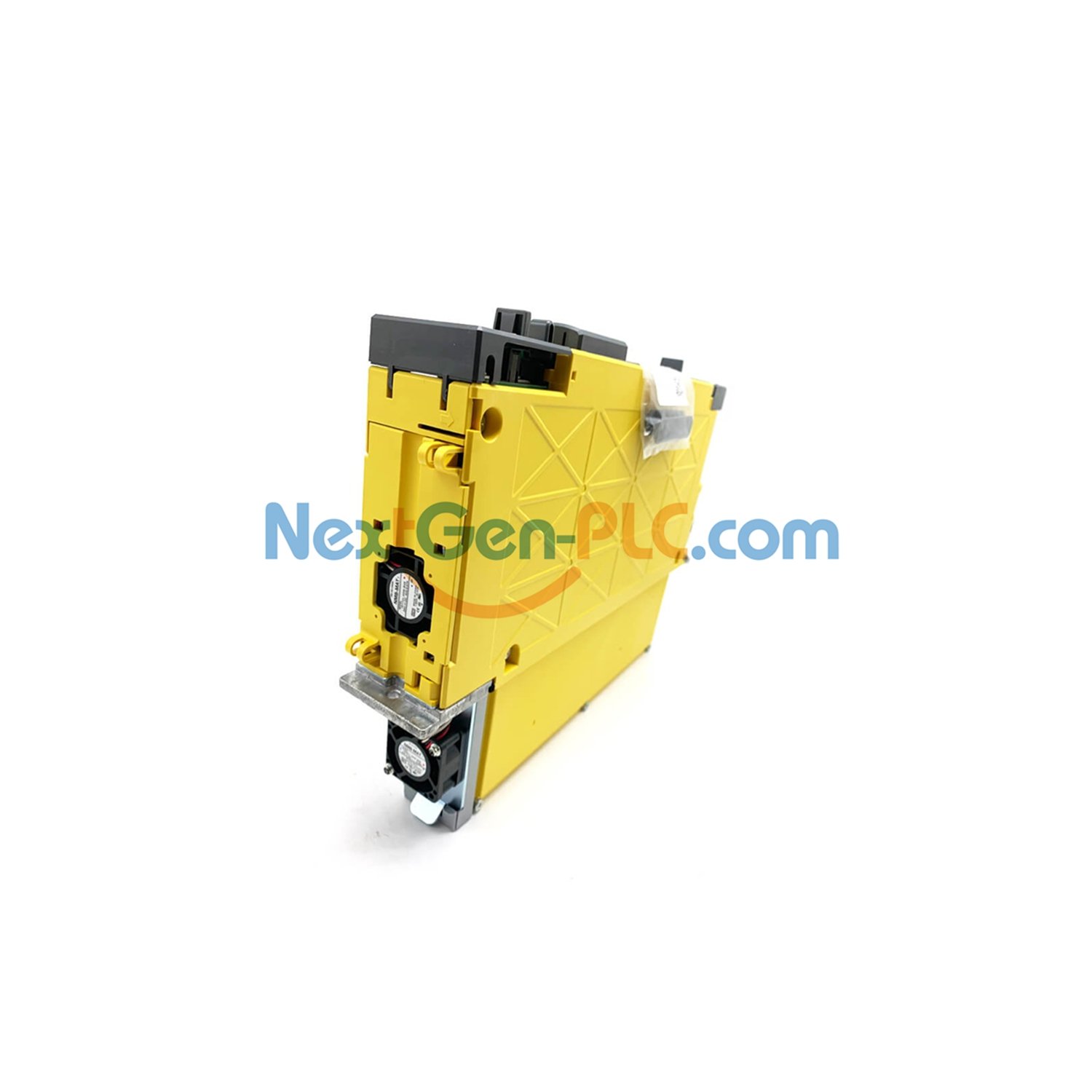

FANUC A06B-6240-H103 Servo Amplifier Module Overview

The A06B-6240-H103 servo amplifier module from FANUC delivers precise control for industrial motion applications. This 3-phase unit operates with an output voltage of 200 to 240 VAC and supports a wide frequency range from 0 to 550 Hz. We designed the A06B-6240-H103 to ensure stable performance within a temperature range of 0°C to 55°C.

Key Technical Specifications

• Manufacturer: FANUC, part of the A06B product line.
• Output Details: Provides 200-240 VAC 3-phase output with a frequency range of 0-550 Hz.
• Rated Current: Delivers a 6.5A rated output current specifically for the L-axis.
• Input Power: Requires a 283-339 VDC input with a rated input current of 9A at 283V.
• Physical Size: Weighs only 4.99 kg (11.00 lbs) for compact integration.
• Environmental Tolerance: Functions reliably in ambient temperatures from 0°C to 55°C.
• Frequency Compatibility: Accommodates input frequencies of 50 or 60 Hz.

Installation and Integration

• Ensure the input voltage supply matches the required 283-339 VDC range for the A06B-6240-H103.
• Mount the module in a location that maintains an ambient temperature between 0°C and 55°C.
• Verify that the 3-phase output connections align with your motor’s L-axis specifications.
• This unit is designed for standard industrial control cabinets and mounting frames.

Frequently Asked Questions (FAQ)

• Is the FANUC A06B-6240-H103 a new original part?
  Yes, we supply only brand new and original units for all orders.
• What is the typical output frequency range for this module?
  The A06B-6240-H103 operates across a wide 0 to 550 Hz output frequency range.
• Do you have this item in stock?
  Yes, we maintain in-stock inventory for the A06B-6240-H103 to ensure quick fulfillment.
• What are the shipping options and delivery time?
  We ship within 5 days using trusted carriers like FedEx, UPS, or DHL.
• What is your return policy?
  We support returns within 30 days of receiving the item.
• What input voltage does the A06B-6240-H103 require?
  It requires a DC input voltage ranging from 283V to 339V.
