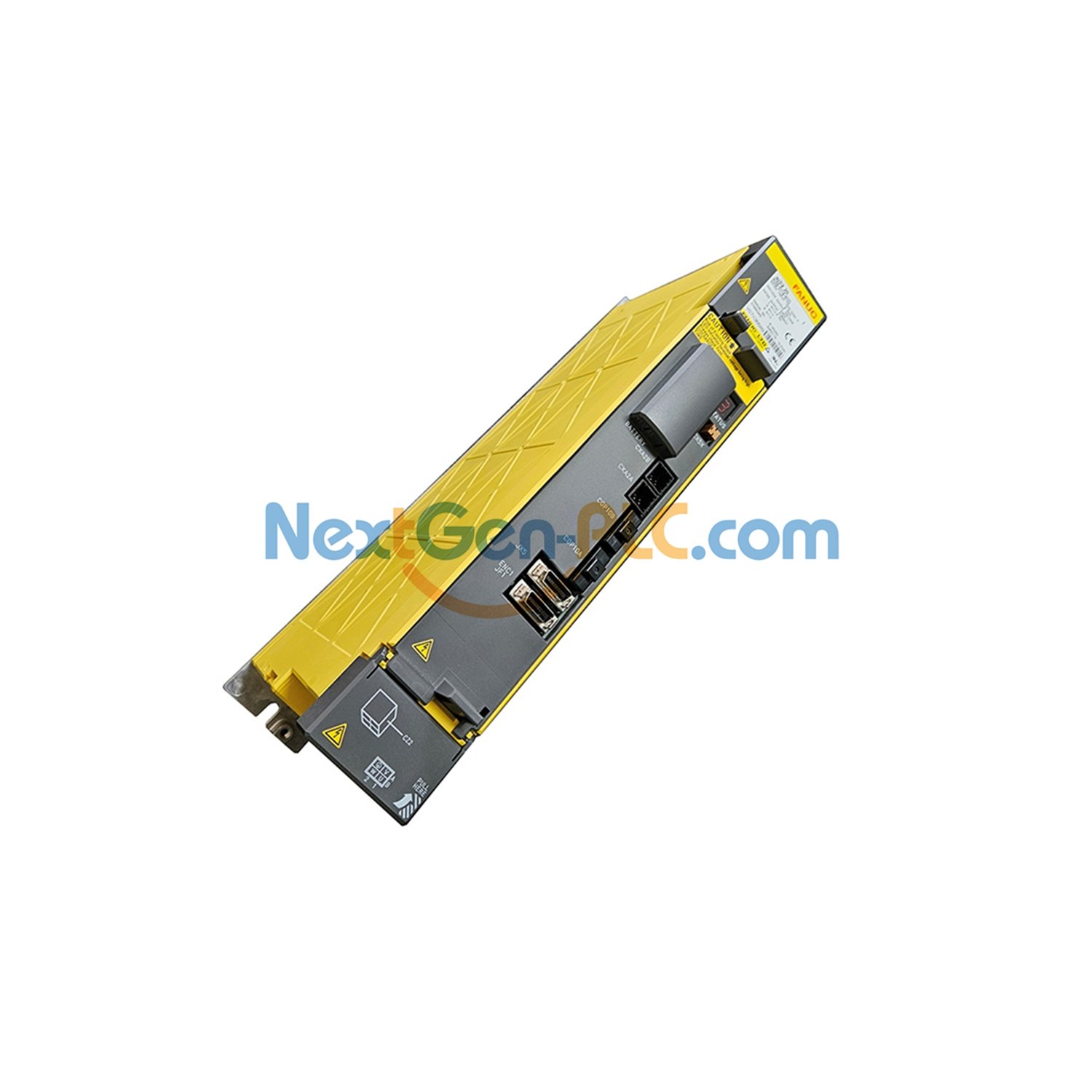

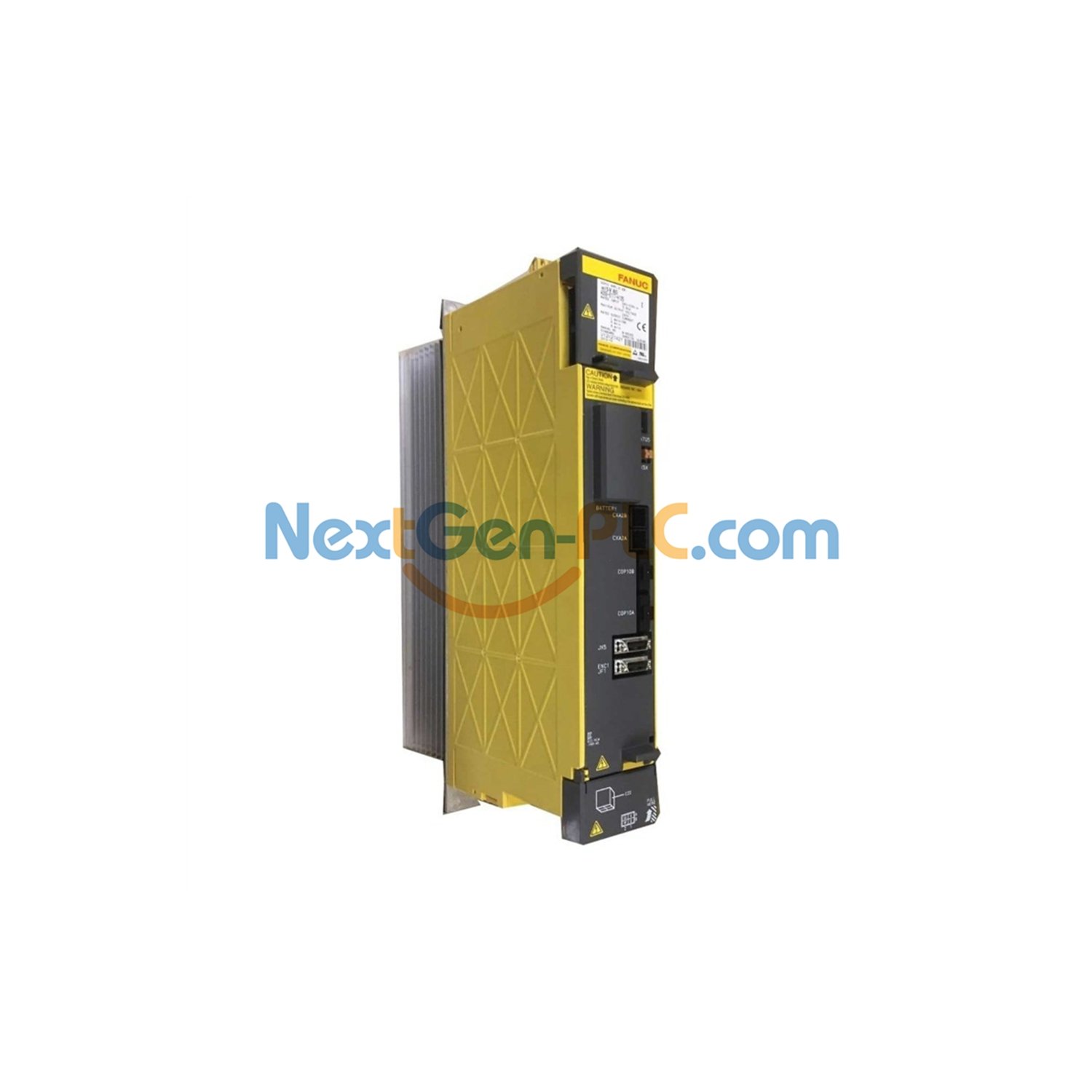

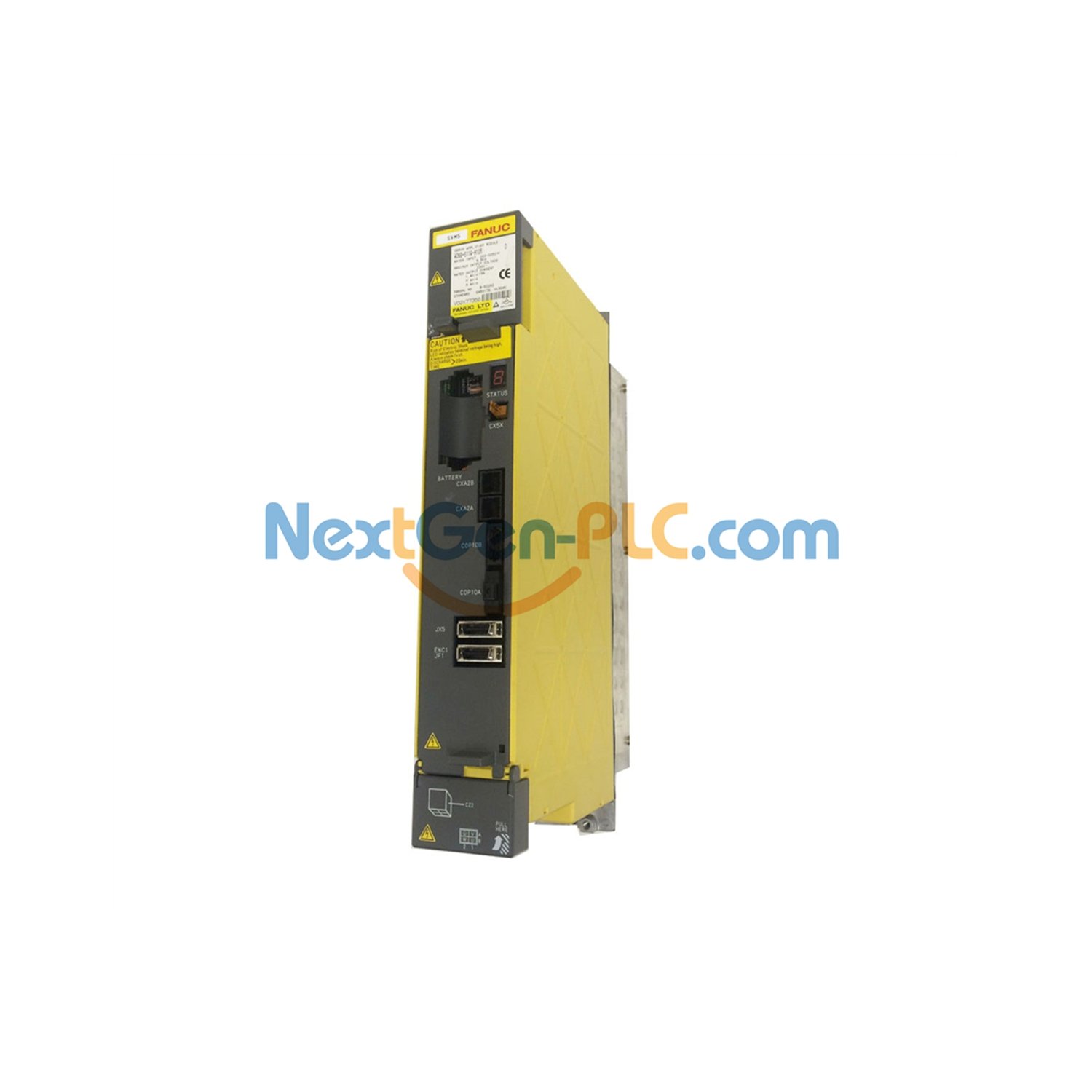

FANUC A06B-6114-H303 3-Axis Servo Amplifier Module

Electrical Input Specifications

• The A06B-6114-H303 accepts input voltage from 283 to 339V DC. This DC bus voltage comes from a compatible power supply module.
• It has a rated input power of 7.5 kW. This provides adequate energy for demanding motion control tasks.
• The unit works with input frequencies of 50 Hz or 60 Hz. It adapts to standard power systems feeding the DC supply.
• It handles a maximum output power up to 30 kW. This peak capacity handles momentary high-load demands.

Output and Motor Control Specifications

• This FANUC amplifier provides rated output current of 6.5 A for L-axis, 6.5 A for M-axis, and 6.5 A for N-axis. Each axis receives equal power capacity.
• The unit delivers output voltage from 200 to 240V AC. This matches standard servo motor voltage requirements.
• It achieves maximum output current of 20 A. This supports higher loads when needed during operation.
• The A06B-6114-H303 offers output frequency range from 0.1 to 800 Hz. This wide range enables precise speed control across various applications.

Environmental and Physical Specifications

• The unit operates in ambient temperatures from 0°C to 55°C. It performs reliably in standard industrial environments.
• It handles ambient humidity up to 90% RH without condensation. This moisture resistance suits humid factory conditions.
• The module measures 195 x 300 x 220 mm. Its compact size allows flexible integration into control cabinets.
• It weighs 15.00 lbs (6.80 kg). This weight makes installation manageable for technicians.

Protection and Performance Features

• This servo amplifier uses PWM (Pulse-Width Modulation) control. This technology ensures responsive and accurate motor performance.
• The unit includes protection against common electrical issues. It safeguards your CNC system from potential damage.
• It maintains stable output across the full frequency range. This consistency ensures reliable motion control.
• The module resists environmental stress with its robust design. It delivers long-term performance in industrial settings.

Frequently Asked Questions

• Q: What type of amplifier is the A06B-6114-H303?
  A: This is a three-axis servo amplifier module from FANUC. It controls L, M, and N axes independently in CNC systems.
• Q: What is the output current for each axis?
  A: The A06B-6114-H303 provides 6.5 A rated current for each axis. All three axes receive the same 6.5 A capacity.
• Q: What frequency range does this servo drive support?
  A: It supports output frequency from 0.1 Hz to 800 Hz. This wide range allows precise speed control for various motors.
• Q: What input voltage does this unit require?
  A: It requires DC input voltage from 283 to 339V DC. This comes from a FANUC power supply module in your system.
• Q: What temperature and humidity levels can it handle?
  A: It operates from 0°C to 55°C and handles humidity up to 90% RH without condensation. This suits most factory environments.
• Q: Is this a new unit and how fast can I receive it?
  A: Yes, this is a brand new original FANUC unit. We keep it in stock and ship within 5 days via DHL, UPS, or FedEx.
