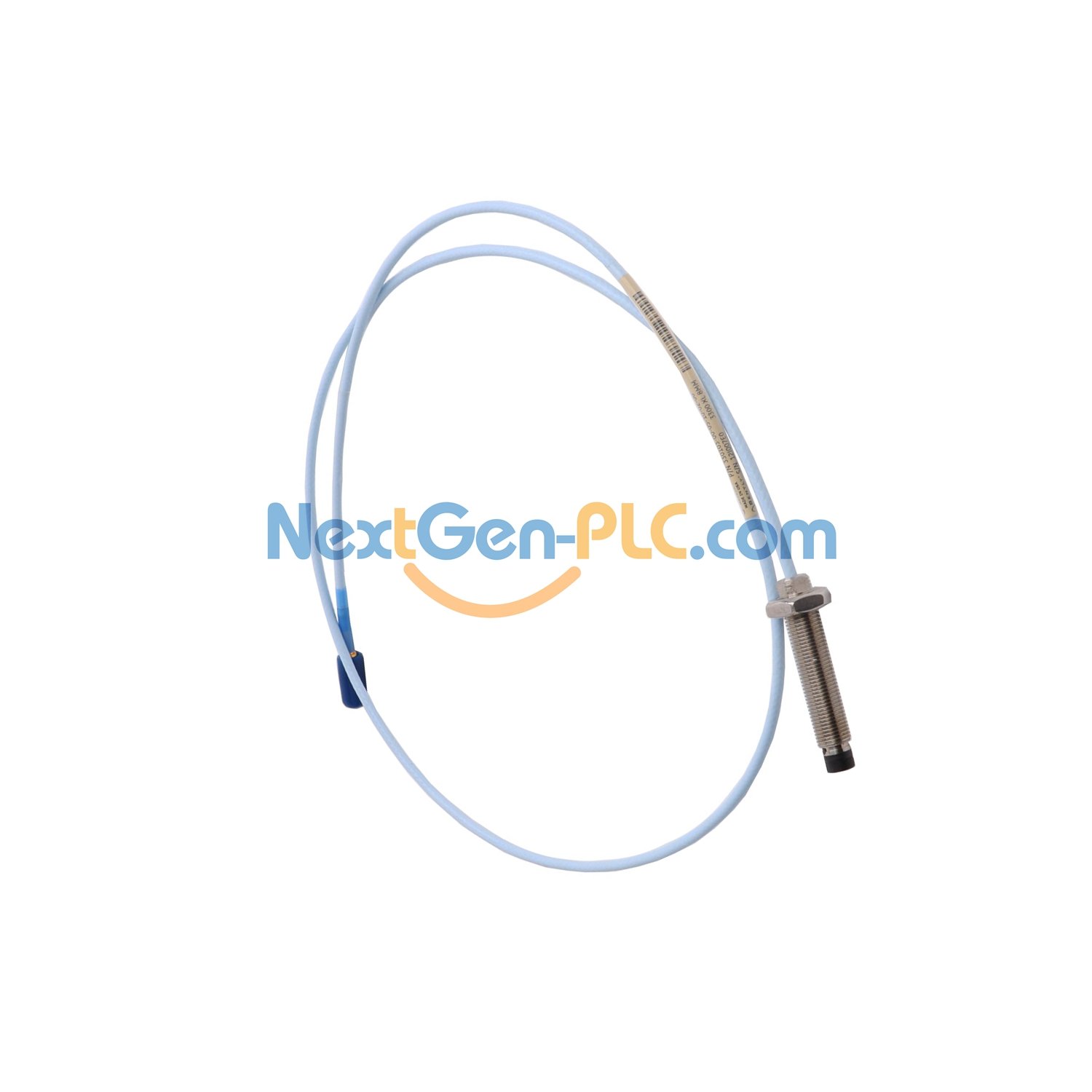

Bently Nevada 3300 XL 8mm Proximity Probe
Model 330103-00-04-50-12-05
PRODUCT HIGHLIGHTS
- ✔ 8mm industrial vibration sensor
- ✔ Compact 40mm stainless steel case
- ✔ 5m FluidLoc oil-resistant cable
- ✔ Hazardous area certified (ATEX/IECEx)
- ✔ Wide temp range: -52°C to +177°C
MODEL DECODER
330103 ─── 8mm Proximity Probe ├─ 00 ─── 0mm unthreaded length ├─ 04 ─── 40mm case length ├─ 50 ─── 5.0 meter cable ├─ 12 ─── FluidLoc cable w/ClickLoc └─ 05 ─── CSA/ATEX/IECEx certified
TECH SPECS
| Measurement Range | 0.25-2.3mm (10-90 mils) |
| Output Signal | -1 to -17 Vdc |
| Resistance | 8.73Ω ±0.50 (5m cable) |
| Thread Spec | M10×1 (15mm max) |
| Weight | 323 g/m (11.4 oz/ft) |
| Sealing | Viton® O-ring |
INSTALLATION GUIDE
- Mount using M10×1 thread (max 15mm engagement)
- Set optimal gap to 1.27mm (50 mils/-9Vdc)
- Use shielded triad cable (16-24 AWG)
- Max 305m (1000ft) cable run to monitor
- Avoid temperatures below -34°C to protect seals
CERTIFICATIONS
- ATEX/IECEx: Zone 0 (AEx ia IIC T1-T5)
- CSA: Class I/II/III, Groups A-G
- Intrinsically Safe (when used with proper barriers)
TYPICAL APPLICATIONS
- Gas turbine monitoring
- Oil refinery compressors
- Power generation
- Pump vibration analysis
- Heavy industrial machinery
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
