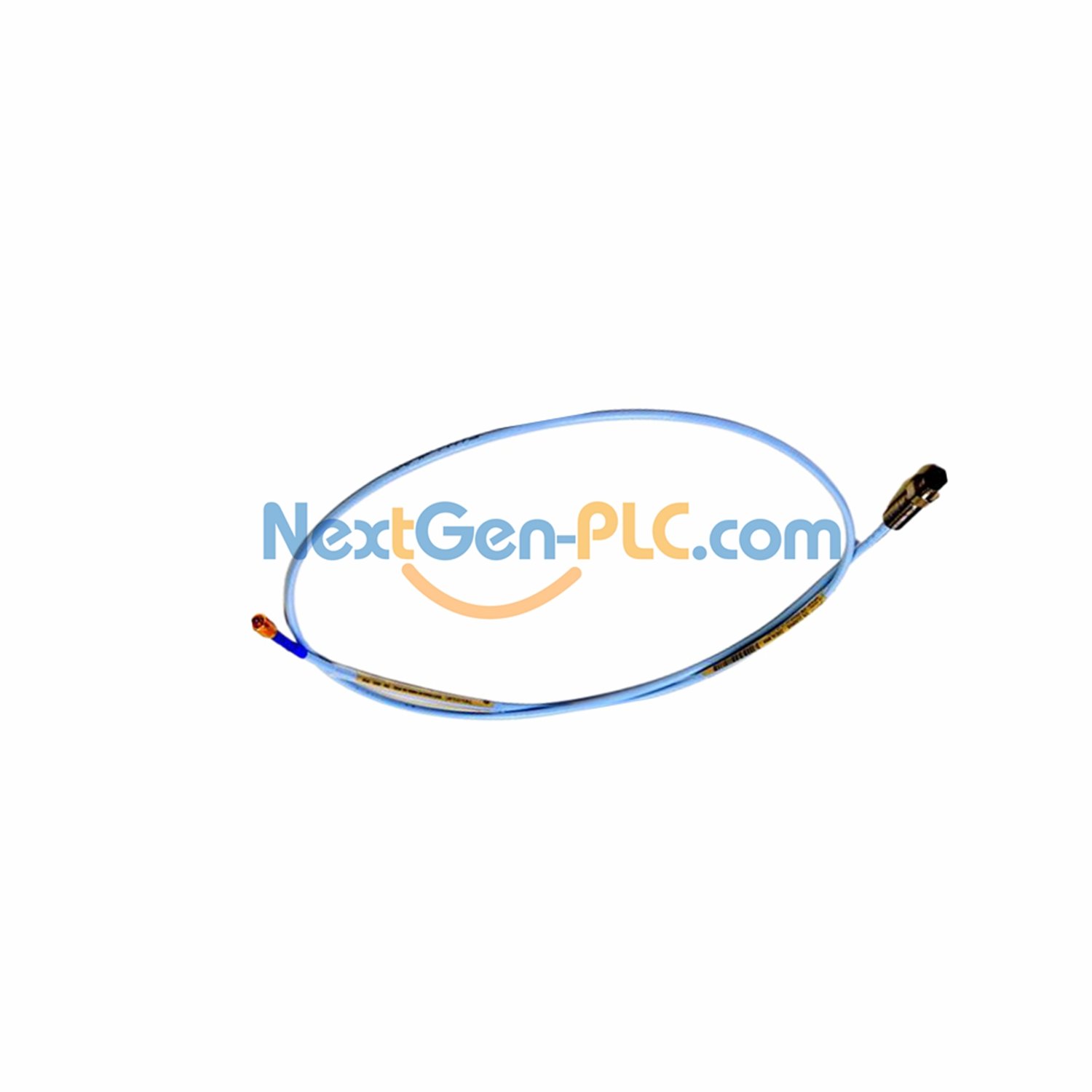

Bently Nevada 3300 XL 8mm Proximity Probe (Model: 330103-00-06-10-02-CN)

Premium vibration monitoring for industrial machinery. 8mm tip, stainless steel case, and high-temperature resistance. Ideal for predictive maintenance.

Description

The Bently Nevada 3300 XL 8mm Proximity Probe detects radial vibration and position in rotating equipment. Features a PPS tip and stainless steel case for durability. Compatible with 3300 XL monitors for precise machinery health monitoring.

Technical Data

• Brand: Bently Nevada
• Model: 330103-00-06-10-02-CN
• Type: 3300 XL 8mm Proximity Probe
• Thread: M10x1 (15mm max engagement)
• Unthreaded Length: 00mm
• Case Length: 60mm
• Cable Length: 1.0m (3.3 ft)
• Connector: Miniature coaxial ClickLoc
• Resistance (RPROBE): 7.59Ω ± 0.50
• Linear Range: 0.25–2.3mm (10–90 mils)
• Output Signal: -1 to -17 Vdc
• Operating Temp: -52°C to +177°C (standard)
• Weight: 323 g/m (11.4 oz)

Model Suffix Decoded

Installation Guide

• Mount with M10x1 thread (max 15mm engagement).
• Set gap to -9 Vdc (~1.27mm) for radial vibration.
• Use shielded triad cable (0.2–1.5mm², max 305m).

Compatibility

Works with 3300 XL monitors and intrinsically safe barriers (per drawing 141092).

Certifications

• AEx/Ex ia IIC T1-T5 (Zone 0)
• AEx/Ex nA/ec IIC T1-T5 (Zone 2)
• Groups A–G (Class I/II/III)

Packaging Includes

• 1x 3300 XL 8mm Probe
• ClickLoc connector
• Standard cable (1.0m)

Applications

Used in turbines, compressors, pumps, and other high-speed machinery for vibration monitoring.

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
