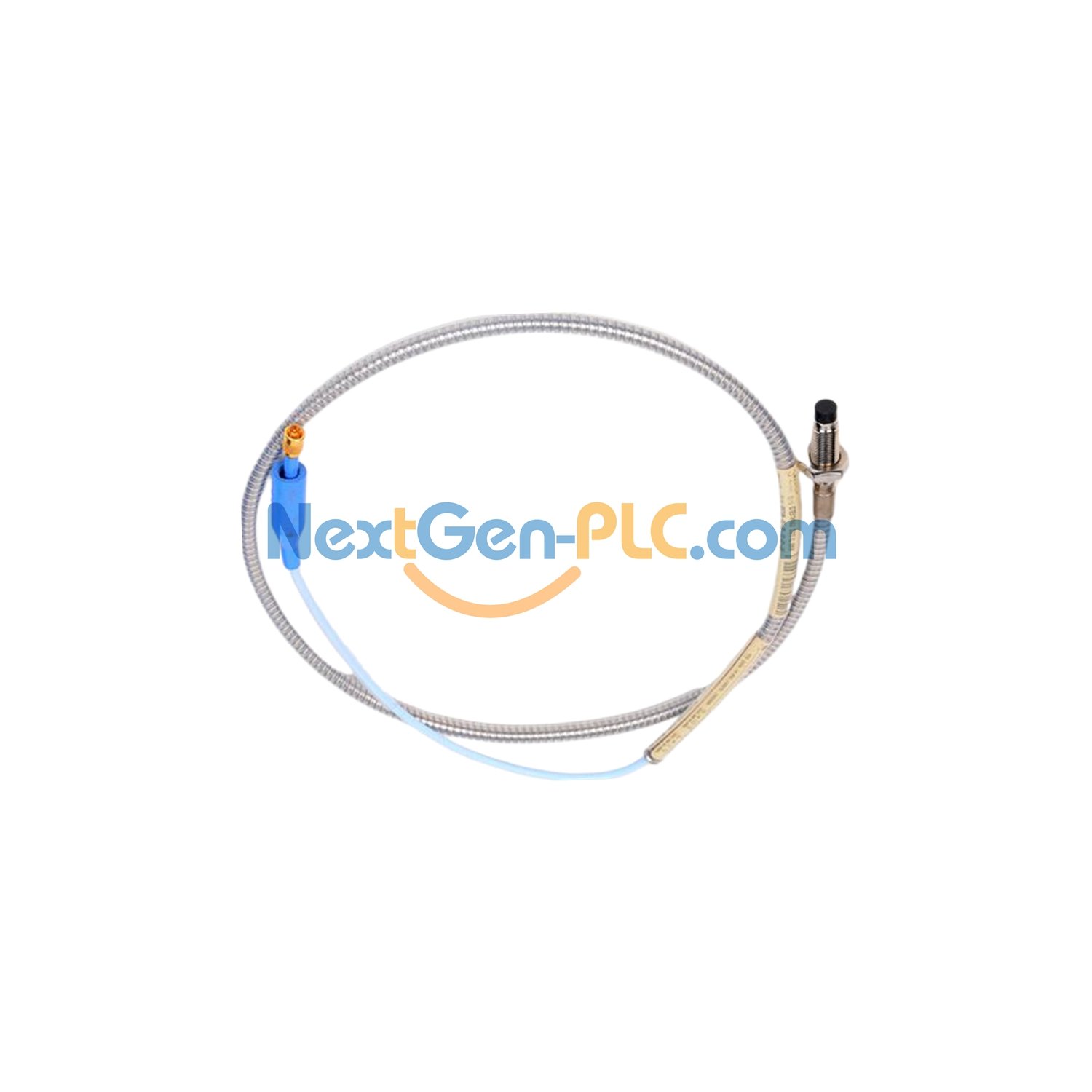

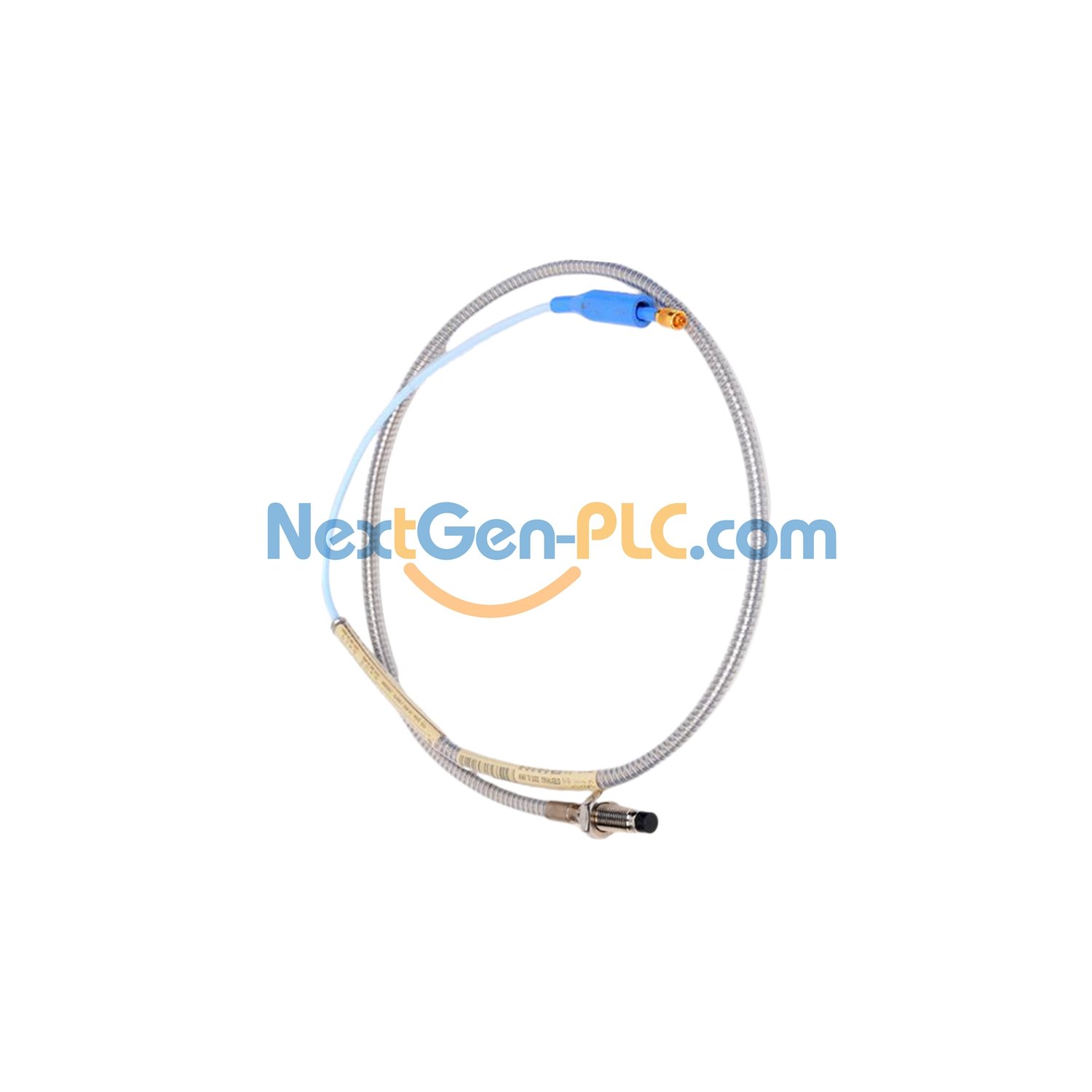

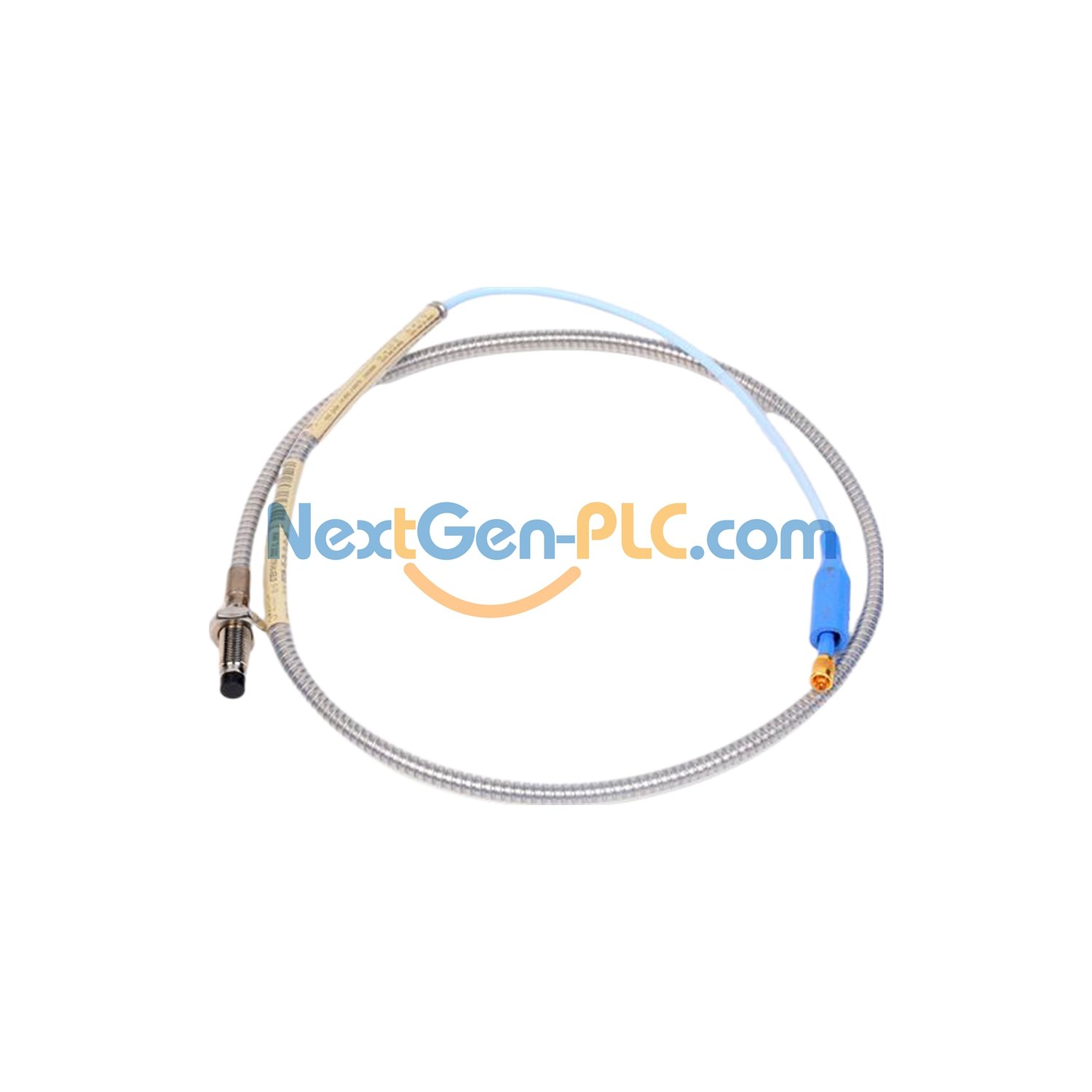

330904-00-09-10-02-05 Bently Nevada 3300 NSv Proximity Probe

3300 NSv Proximity Probe – Model 330904-00-09-10-02-05

Technical Specifications

• Brand and Model: Bently Nevada 330904-00-09-10-02-05 (3300 NSv Proximity Probe).
• Thread Type: M8X1 thread with armor.
• Unthreaded Length: 00 mm.
• Overall Case Length: 90 mm.
• Total Length: 1.0 meter (39 inches).
• Connector Type: Miniature coaxial ClickLoc connector with standard cable.
• Agency Approval: 05 = multiple approvals.
• Probe DC Resistance: 4.2 ± 0.5 ohms (center to outer conductor at 1.0m length).
• Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm (10 to 70 mils), approximately -1 to -13 Vdc.
• Recommended Gap Setting: 1.0 mm (40 mils).
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error.
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils).
• Frequency Response: 0 to 10 kHz at +0, -3 dB typical with up to 305 meters of field wiring.
• Minimum Target Size (flat): 8.9 mm (0.35 in) diameter; recommended minimum is 13 mm (0.5 in).
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel (SST).
• Probe Cable: 75 Ω coaxial, FEP insulated, available in 0.5, 1, 5, or 7 meter lengths.
• Recommended Torque: Finger tight. Maximum torque is 0.56 N•m (5 in•lb).
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without SST armor.
• Operating Temperature: -52°C to +177°C (-62°F to +351°F).
• Storage Temperature: -52°C to +177°C (-62°F to +351°F).
• Probe Case Torque (M8X1): Maximum 7.3 N•m (65 in•lb), recommended 5.1 N•m (45 in•lb).
• Maximum Thread Engagement (M8X1): 12 mm.

Extension Cable Specifications

• Extension Cable DC Resistance: Center conductor 0.220 Ω/m (0.067 Ω/ft); shield 0.066 Ω/m (0.020 Ω/ft).
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG). Use three-conductor shielded triad cable.
• Maximum Field Wiring Length: 305 meters (1,000 feet) between the sensor and monitor.

Frequently Asked Questions (FAQ)

• Is this 330904-00-09-10-02-05 brand new and original?
  Yes, we supply only a new original 3300 NSv Proximity Probe in factory packing.
• Do you have this probe in stock?
  Yes, we keep the 330904-00-09-10-02-05 in stock for immediate orders.
• What is your shipping time?
  We ship within 5 business days after order confirmation.
• Which carriers do you use?
  We ship via FedEx, UPS, or DHL for reliable delivery.
• Can I return this probe?
  Yes, we support returns within 30 days from delivery.
• What happens if I use a target smaller than 13 mm diameter?
  Smaller targets may change the scale factor. Reducing the gap helps limit this change.
• Does the probe work with 3300 XL NSv Proximitor Sensors?
  Yes, it works with up to 305 meters of field wiring to the sensor and monitor.
