330903-16-23-10-01-00 Bently Nevada 3300 NSv Proximity Probe

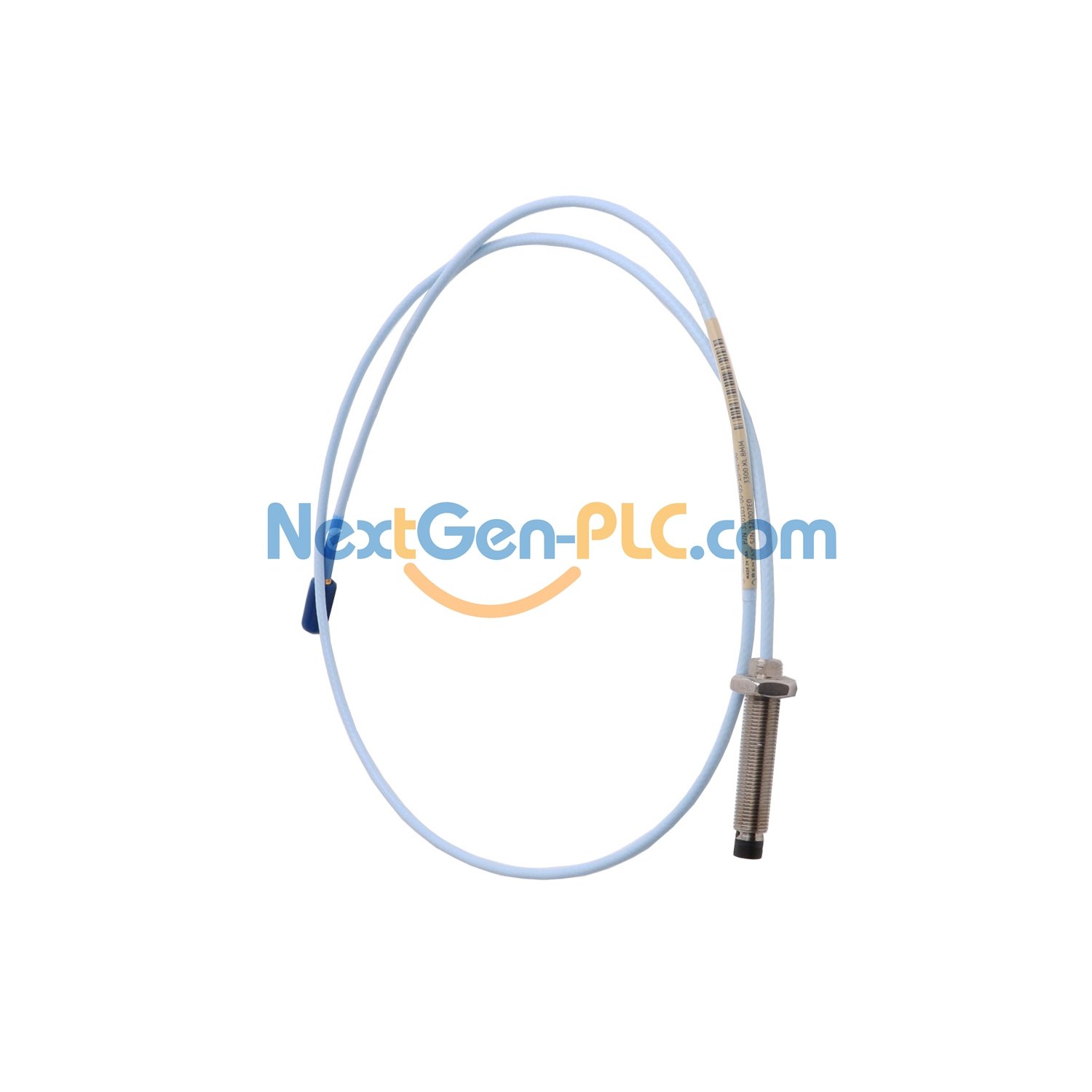

Bently Nevada 3300 NSv Proximity Probe – Model 330903-16-23-10-01-00

Key Technical Specifications

• Brand & Model: Bently Nevada 330903-16-23-10-01-00 (3300 NSv Probe).
• Linear Range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm (10 to 70 mils).
• Recommended Gap Setting: 1.0 mm (40 mils) from target.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error.
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils).
• Frequency Response: 0 to 10 kHz, +0/-3 dB typical with up to 305 meters (1000 ft) field wiring.
• Probe DC Resistance (1.0m length): 4.2 ± 0.5 ohms (center to outer conductor).
• Extension Cable DC Resistance: Center conductor 0.220 Ω/m, shield 0.066 Ω/m.
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Field Wiring Type: 0.2 to 1.5 mm² (16-24 AWG); three-conductor shielded triad cable recommended.
• Maximum Field Wiring Length: 305 meters (1000 feet) between Proximitor Sensor and monitor.
• Minimum Target Diameter: 8.9 mm (0.35 in); recommended 13 mm (0.5 in).
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel (SST).
• Probe Cable: 75 Ω coaxial, FEP insulated, total lengths: 0.5, 1, 5, or 7 meters.
• Operating & Storage Temperature: -52°C to +177°C (-62°F to +351°F).
• Pressure Sealing: Viton O-ring seals differential pressure (not pressure tested before shipment).
• Recommended Torque (Probe Case): Finger tight; maximum 0.56 N•m (5 in•lb).
• Connector-to-Connector Torque: Maximum rated 7.3 N•m (65 in•lb), recommended 5.1 N•m (45 in•lb).
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without SST armor.
• Probe Case Thread: M8x1; maximum thread engagement 12 mm.

Ordering Configuration & Compatibility

• Full Part Number: 330903-16-23-10-01-00 – M8X1 thread, no armor.
• Unthreaded Length: 160 mm (-16 option).
• Overall Case Length: 230 mm (-23 option).
• Total Length: 1.0 meter (39 in) with -10 option.
• Connector Type: Miniature coaxial ClickLoc with connector protector (-01).
• Agency Approval: Not required (-00).
• Compatibility: Fully interchangeable with Bently Nevada’s previous 3300 RAM probe and extension cable.
• Improved Chemical Resistance: Allows use in many process compressor applications.

Frequently Asked Questions (FAQ)

• Q: Is this 330903-16-23-10-01-00 brand new and original?
  A: Yes, we supply only new and original Bently Nevada 3300 NSv probes in factory packaging.
• Q: What is the linear measurement range of this probe?
  A: The linear range spans 1.5 mm (60 mils) from 0.25 mm to 1.75 mm gap distance.
• Q: What is the incremental scale factor (ISF)?
  A: ISF equals 7.87 V/mm (200 mV/mil) including interchangeability error tolerance.
• Q: Can I use this probe with existing 3300 RAM extension cables?
  A: Yes, the 3300 NSv probe is mechanically and electrically compatible with 3300 RAM cables.
• Q: What is the maximum field wiring length?
  A: You can run up to 305 meters (1000 feet) of field wiring between the Proximitor and monitor.
• Q: Do you have this model in stock?
  A: Yes, we keep 330903-16-23-10-01-00 in stock for immediate orders.
• Q: How long does delivery take?
  A: We ship within 5 days via FedEx, UPS, or DHL. Delivery time depends on your location.
• Q: What is the return policy?
  A: You may return this probe within 30 days if it remains unused and in original packing.
• Q: What is the temperature range for this sensor?
  A: It operates and stores from -52°C to +177°C (-62°F to +351°F).
