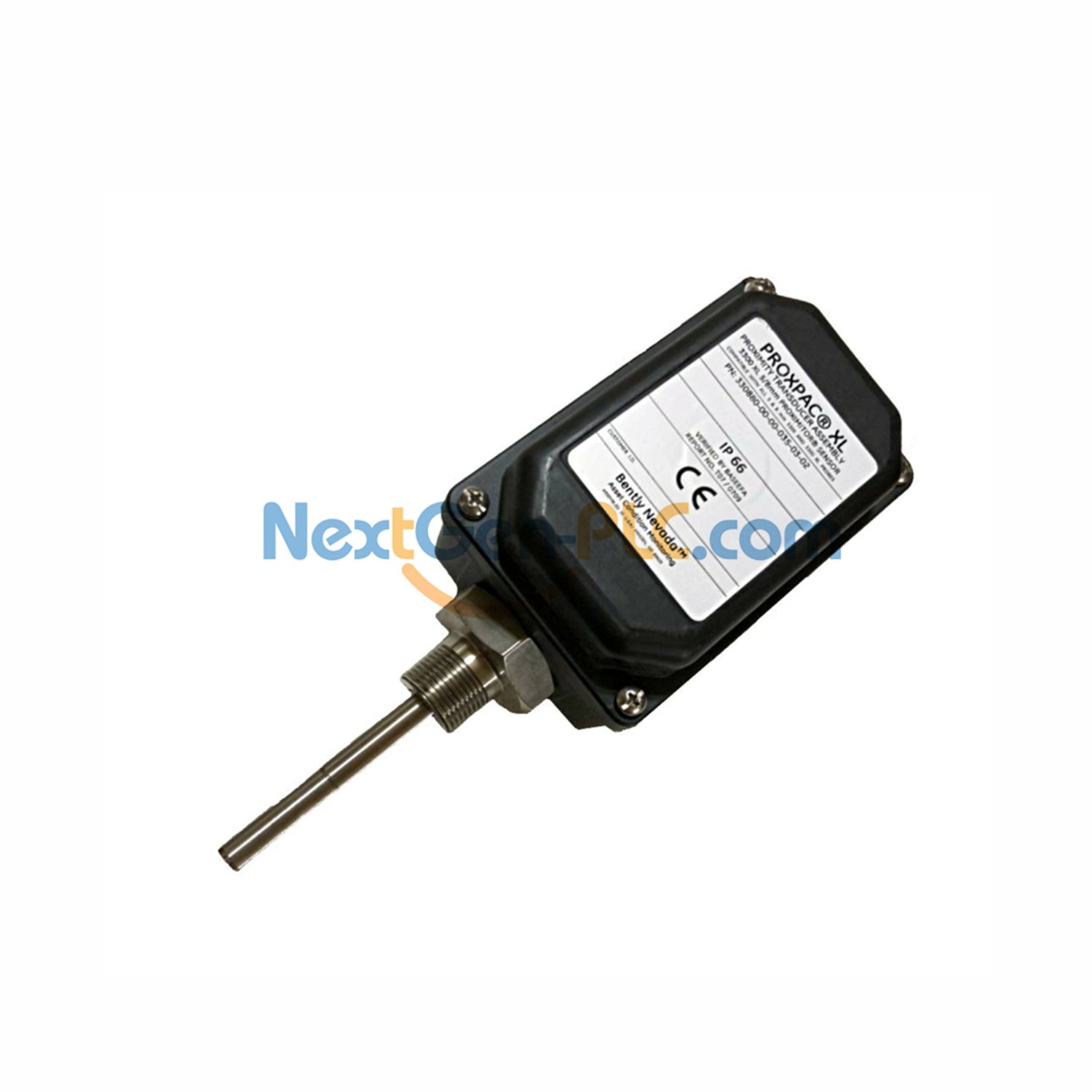

330881-16-00-175-00-02 Bently Nevada PROXPAC XL Proximity Transducer

Bently Nevada 330881-16-00-175-00-02 PROXPAC XL Proximity Transducer

Core Technical Specifications

• Brand & Model: Bently Nevada 330881-16-00-175-00-02 PROXPAC XL System.
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm gap.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with ±5% accuracy.
• Frequency Response: 0 to 10 kHz, +0, -3 dB with up to 305 m field wiring.
• Power Requirement: -17.5 Vdc to -26 Vdc without barriers, 12 mA max consumption.
• Output Resistance: 50 Ω with less than 2 mV supply sensitivity change.
• Probe Temperature Range: -51 °C to +177 °C operating.
• Housing Rating: IP66 verified by BASEEFA report T07/0709.
• Minimum Target Size: 15.2 mm diameter flat target.
• Minimum Shaft Diameter: 50.8 mm (2.0 inches).

Mechanical and Environmental Features

• Probe Tip Material: Polyphenylene Sulfide (PPS) for high durability.
• Probe Case & Cable: AISI 304 stainless steel with 1 m triaxial FEP cable.
• Housing Material: UV-resistant, glass-reinforced PPS thermoplastic with conductive fibers.
• Outer Sleeve & Retaining Screws: AISI 303 and AISI 304 stainless steel.
• Vibration Isolation: Extra soft cellular silicone reduces external interference.
• Recommended Torque (Retaining Nut): 29.5 N·m (260 in·lb).
• Housing Impact Strength: 4 Joule at -39 °C and 115 °C per BASEEFA.
• Total System Weight: 1.44 kg typical with 0.3 m sleeve length.
• Probe Tensile Strength: 330 N (75 lb) maximum between cable and case.

Frequently Asked Questions (FAQ)

• Is this a new original Bently Nevada part?
  Yes, we supply a brand new, original 330881-16-00-175-00-02 transducer.
• Do you have this model in stock?
  We keep Bently Nevada 330881-16-00-175-00-02 in stock for immediate orders.
• How long does delivery take?
  We ship within 5 business days after order confirmation.
• Which carriers do you use?
  We use FedEx, UPS, and DHL for fast global delivery.
• Can I return this item?
  Yes, you may return it within 30 days for a full refund.
• What is the frequency response of this system?
  The PROXPAC XL provides 0 to 10 kHz response with -3 dB rolloff.
• Does this probe work with a 50 mm shaft?
  Yes, the minimum shaft diameter is 50.8 mm (2.0 inches).
• What voltage does the sensor need?
  It requires -17.5 Vdc to -26 Vdc at 12 mA maximum.
• What is the difference from the approved version?
  This 330881-16-00-175-00-02 uses a probe without multiple approvals (Option 1 6).
