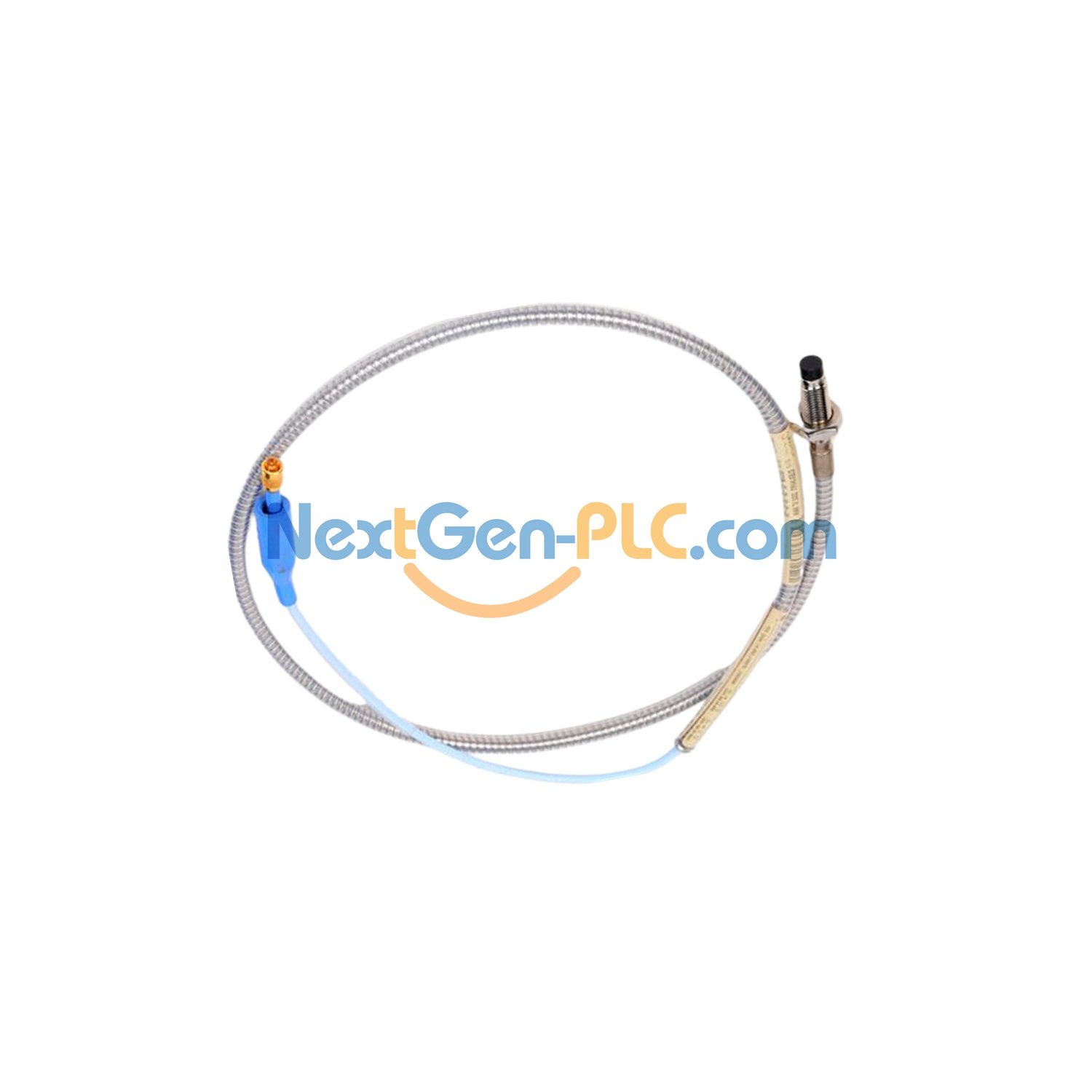

Bently Nevada 3300 XL Vibration Probe
Product Information
| Manufacturer: | Bently Nevada |
| Model Number: | 330707-00-25-10-02-00 |
| Probe Size: | 11mm |
| Cable Length: | 1.0 meter (3.3 feet) |
| Thread Size: | 5/8-18 UNF |
| Made In: | USA |
Key Features
- Stainless steel housing (AISI 304)
- PPS probe tip material
- 1 meter triaxial cable
- ClickLoc connector
- Wide temperature range (-51°C to +177°C)
Technical Specifications
| Resistance: | 5.9 ± 0.5 ohms |
| Max Torque: | 400 in-lb (45.2 N•m) |
| Recommended Torque: | 133 in-lb (15.2 N•m) |
| Min Bend Radius: | 1.0 inch (25.4 mm) |
| Shipping Weight: | 0.17 kg |
Model Number Breakdown
| 330707 | Base Model (3300 XL 11mm) |
| 00 | No unthreaded length |
| 25 | 2.5 inch case length |
| 10 | 1.0 meter cable |
| 02 | ClickLoc connector |
| 00 | No agency approvals |
Installation Notes
- Maximum thread engagement: 0.938 inches
- Connector torque: Finger tight (max 5 in-lb)
- Avoid temperatures below -34°C (30°F)
Typical Applications
- Turbine monitoring
- Compressor vibration
- Motor protection
- Industrial machinery
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
