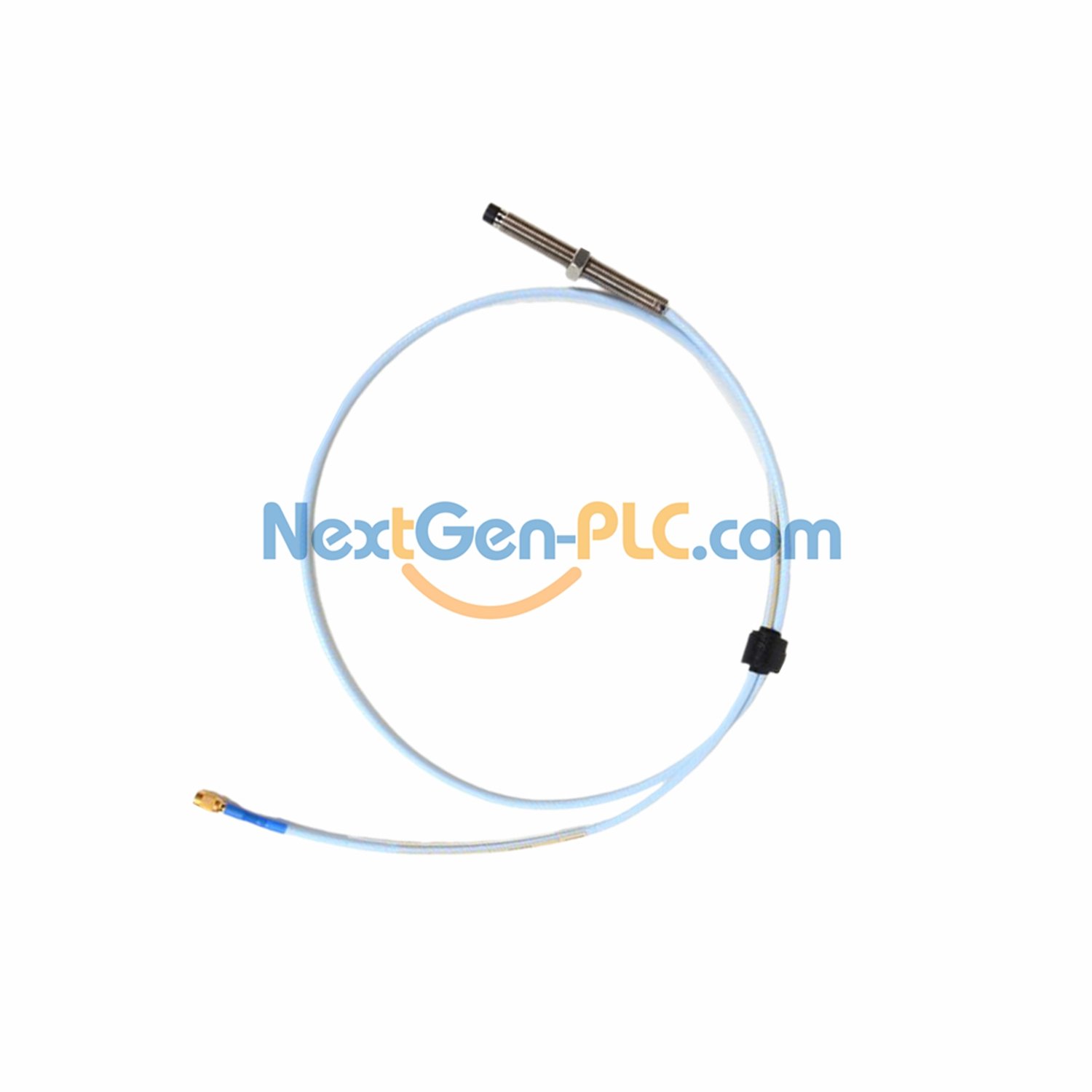

330703-000-060-10-02-00 – Bently Nevada 11 mm Probe

Advanced Machinery Monitoring: Bently Nevada 3300 XL Proximity Sensor

Precision Engineering Solution

Experience industrial-grade monitoring with the 330703-000-060-10-02-00 proximity probe. This 11mm sensor from Bently Nevada comes factory-sealed with 12-month protection. Engineered for precise vibration detection in critical rotating equipment.

Technical Specifications

• Manufacturer: Bently Nevada
• Complete Model ID: 330703-000-060-10-02-00
• Detection Range: 0.5mm to 4.6mm targets
• Electrical Characteristic: 5.9Ω ±0.5 resistance
• Operating Limits: -52°C to +177°C
• Cable System: 1.0m triaxial (75Ω FEP insulated)
• Magnetic Immunity: 0.027mV/gauss at 4.6mm gap

Robust Construction

Features a PPS polymer sensing tip and 304 stainless steel housing. Withstands 63.3N•m maximum torque while optimal installation requires 21.1N•m. M14×1.5 threading allows secure mounting with 21mm maximum engagement.

Environmental Performance

Maintains accuracy from -52°C to +177°C with specialized pressure sealing. Certified for hazardous locations (EPL Ga/Gc/Dc) with T2/T225°C temperature classification. Avoid extended exposure below -34°C to preserve seal integrity.

Installation Guide

Connect via miniature ClickLoc connector. Ensure proper grounding in high-EMF environments. Maintain minimum clearance around probe tip for accurate readings.

Industrial Applications

• Power generation turbine shafts
• Compressor vibration analysis
• Pump bearing condition monitoring
• Industrial motor performance tracking

Complete Package

Includes proximity probe with 1.0m cable, installation documentation, and factory calibration records. Backed by 12-month manufacturer warranty against defects.

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
