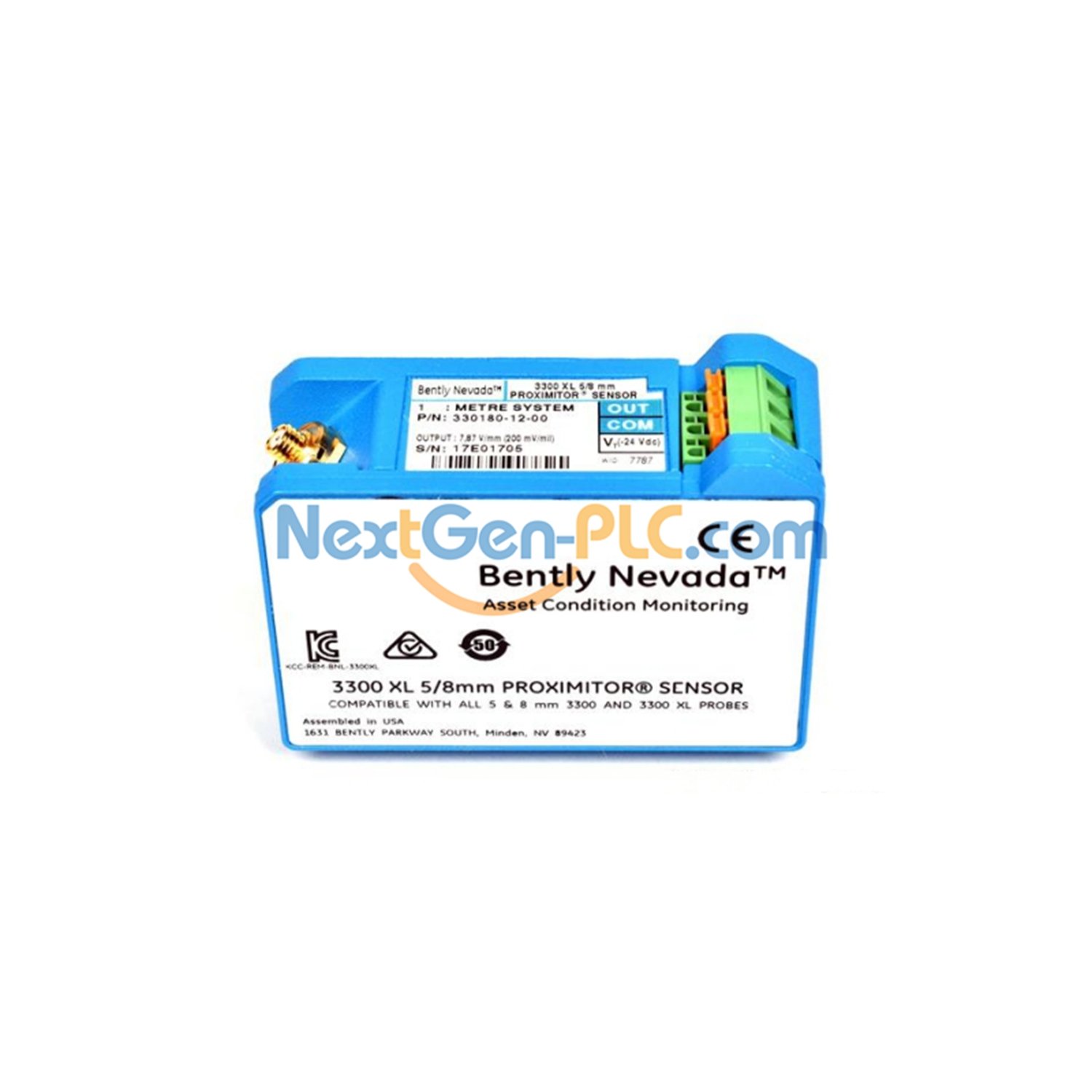

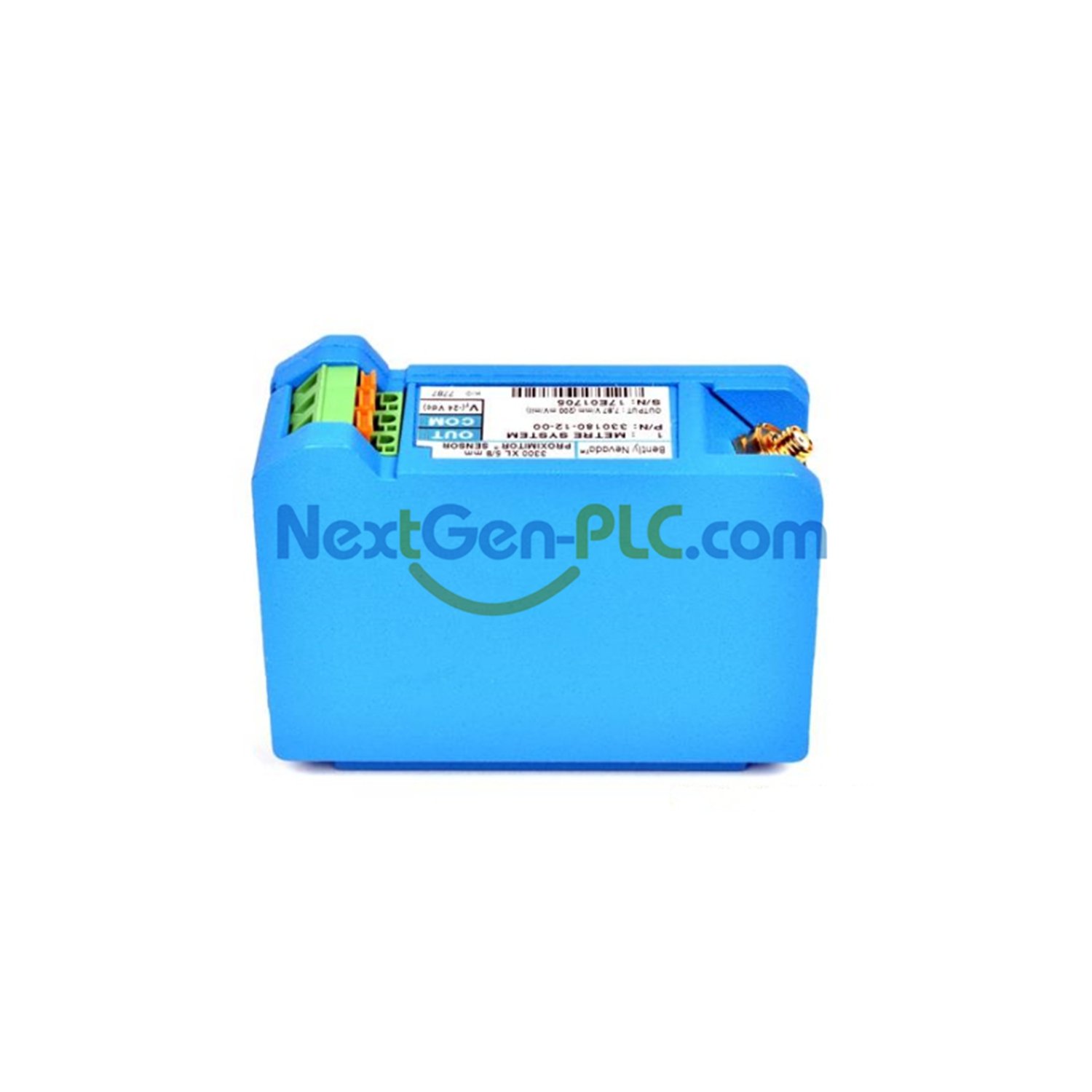

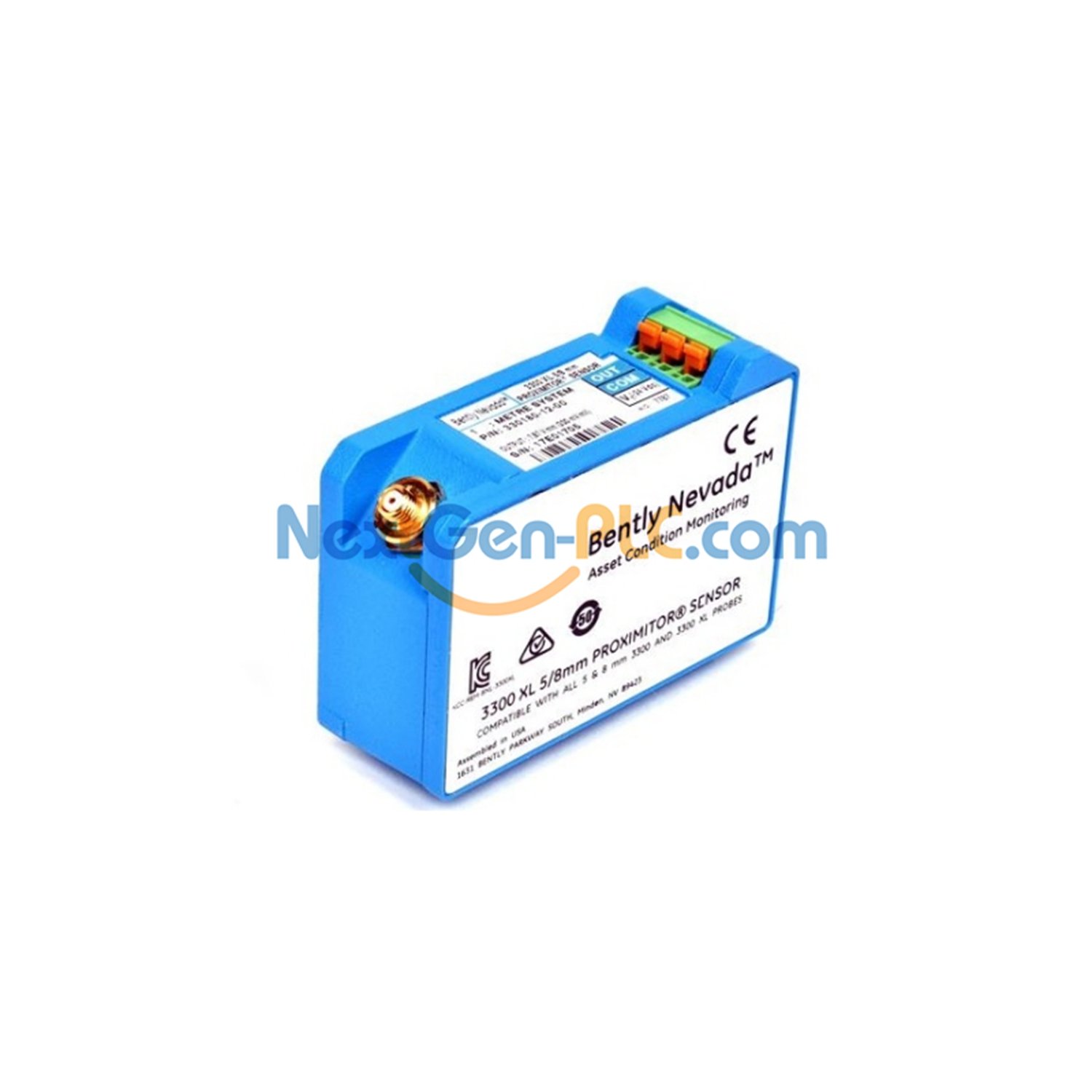

330180-12-BR Bently Nevada 3300 XL Proximitor Sensor

3300 XL Proximitor Sensor – Model 330180-12-BR

Technical Specifications

• Brand and Model: Bently Nevada 330180-12-BR (3300 XL Proximitor Sensor).
• Total Length and Mounting: 1.0 meter (3.3 feet) system length, no mounting hardware.
• Agency Approval: BR = country specific option.
• Input Type: Accepts one 3300-series 5 mm or 3300 XL 8 mm probe plus extension cable.
• Power Requirement: Needs -17.5 Vdc to -26 Vdc for non-incendive circuits at 12 mA max. Use -23 Vdc to -26 Vdc with barriers.
• Supply Sensitivity: Output changes less than 2 mV per 1 V change in input voltage.
• Output Resistance: 50 Ω.
• Sensor Material: A308 aluminum.
• Connector Material: Gold-plated brass or gold-plated beryllium copper.
• Weight: 246 g (8.67 oz).
• Operating Temperature: -52°C to +100°C (-62°F to +212°F).
• Storage Temperature: -52°C to +105°C (-62°F to +221°F).

Frequently Asked Questions (FAQ)

• Is this 330180-12-BR new and original?
  Yes, we supply only a brand new original 3300 XL Proximitor Sensor.
• Do you have this item in stock?
  Yes, we keep the 330180-12-BR in stock for immediate orders.
• What is your shipping time?
  We ship within 5 business days after order confirmation.
• Which carriers do you use?
  We ship via FedEx, UPS, or DHL for reliable delivery.
• Can I return this sensor?
  Yes, we support returns within 30 days from delivery.
• Does the sensor work with existing 3300 XL probes?
  Yes, it works with 3300-series 5 mm and 3300 XL 8 mm probes.
• What happens if voltage exceeds -23.5 Vdc?
  Operation above -23.5 Vdc may reduce the linear measurement range.
