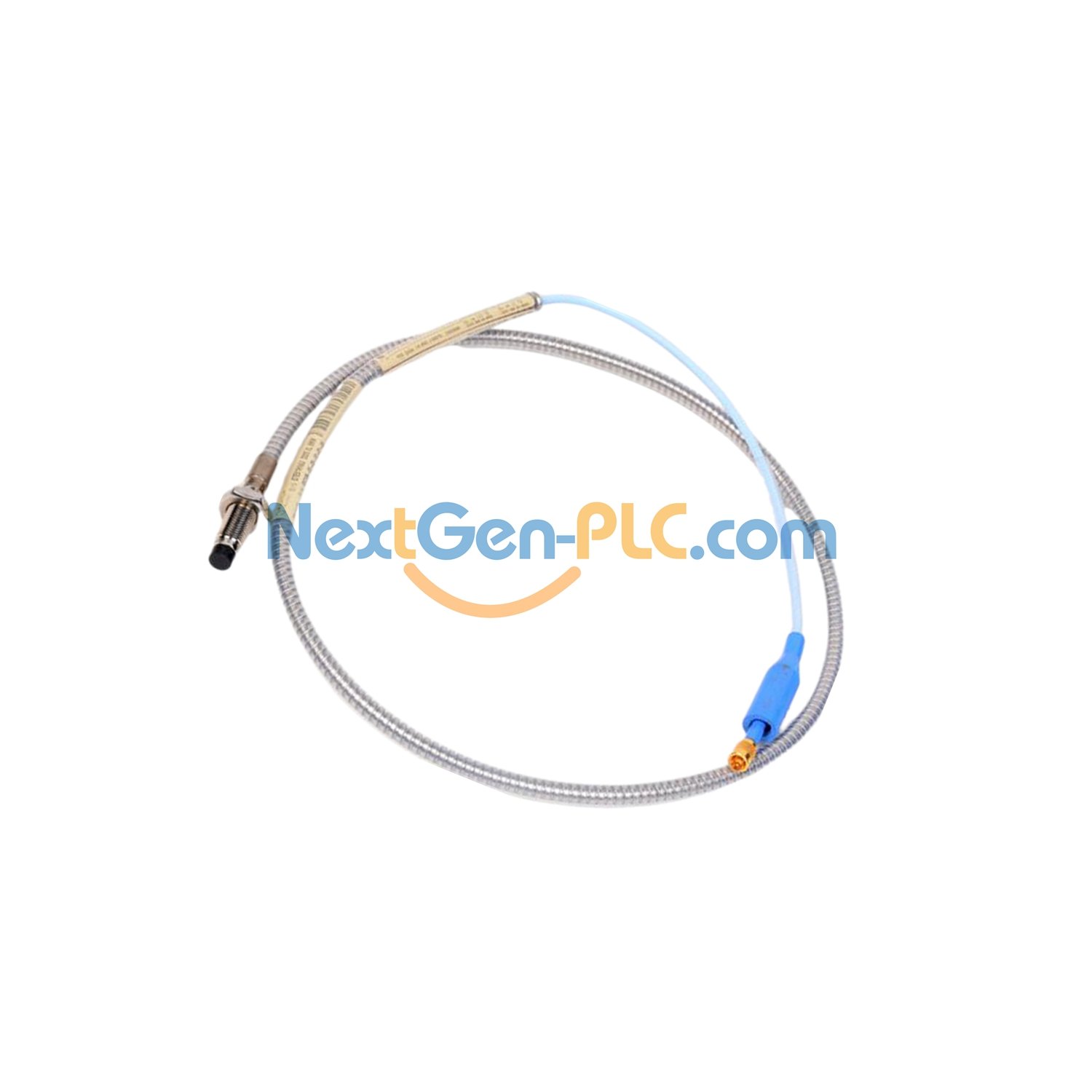

Bently Nevada 330172-10-24-05-02-00 Vibration Probe
5mm armored vibration sensor with 2.4″ stainless steel body and 1″ smooth section. Made in USA for industrial machine monitoring.
Key Features
- 5mm sensing diameter
- 2.4″ stainless steel case
- 1″ unthreaded section
- 0.5m armored cable
- ClickLoc connector
Technical Specifications
- Power: -17.5 to -26V DC
- Thread: 1/4-28 UNF
- Temp range: -35°C to +177°C
- Weight: 0.32kg
- Max thread depth: 0.375″
Model Number Explained
| Code | Description | Value |
|---|---|---|
| 330172 | Base Model | 5mm Armored Probe |
| 10 | Unthreaded Length | 1.0 inch |
| 24 | Case Length | 2.4 inches |
| 05 | Cable Length | 0.5 meters |
| 02 | Connector | Standard ClickLoc |
| 00 | Approvals | Not Required |
Installation Instructions
Drilling
- Use #3 drill bit or larger
- Tap with 1/4-28 UNF thread
Mounting
- Tighten to 45 in-lb (5.1 N·m)
- Do not exceed 65 in-lb (7.3 N·m)
- Max thread engagement: 0.375″
What’s Included
- 1 × 5mm vibration probe
- 0.5m armored cable
- ClickLoc connector
Download PDF file here:3300 5 mm Transducer System Datasheet – 172036
