330130-075-13-05 – Standard Extension Cable – Bently Nevada

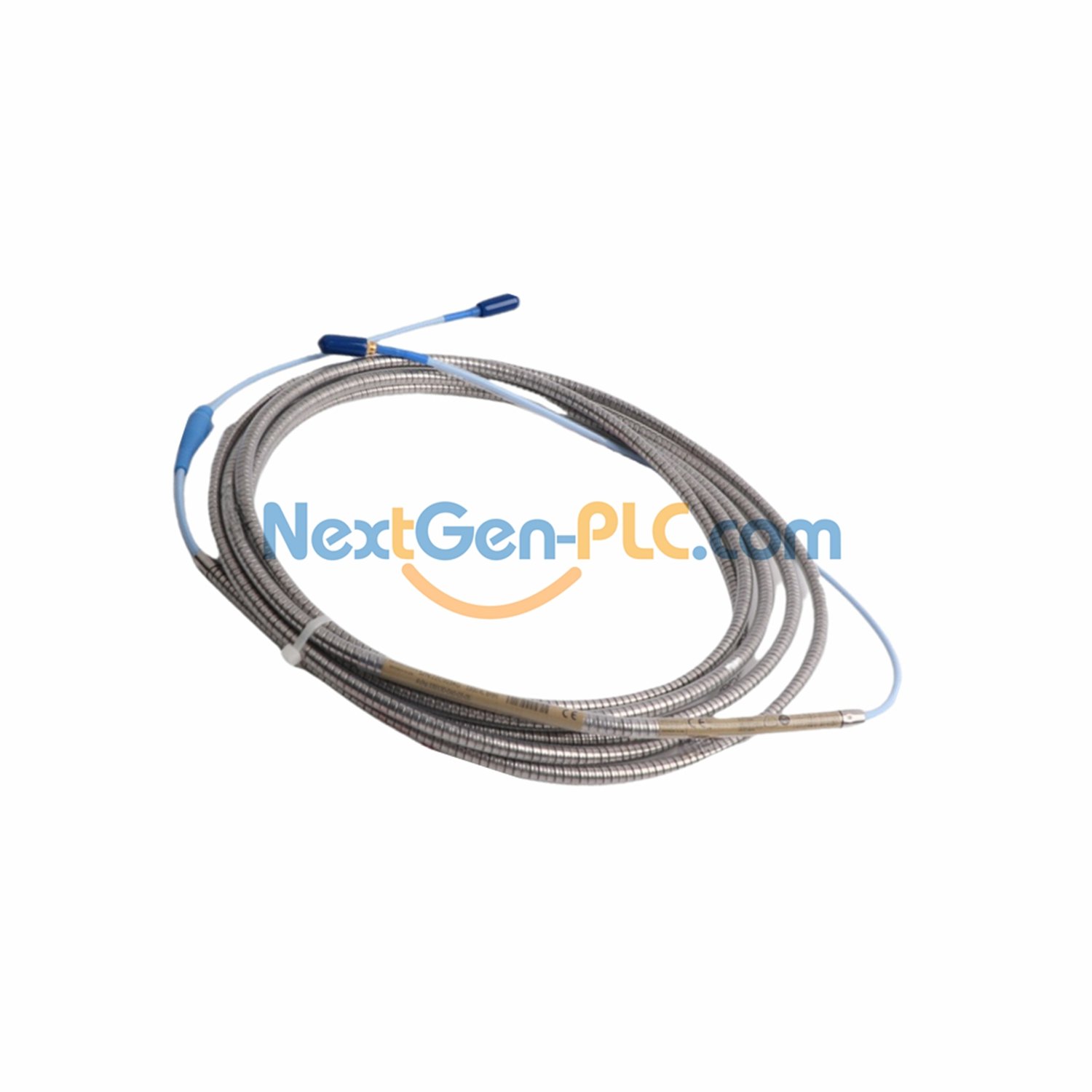

Bently Nevada 330130-075-13-05 Extension Cable – 7.5m Armored FluidLoc

What It Does

This armored extension cable works with Bently Nevada’s 3300-series proximity sensors. It uses FluidLoc design to block oil/liquid leaks and has tough, gold-plated connectors to last longer. Great for industrial setups needing stable signals.

Model Numbers Breakdown

330130: Base code for 3300 XL extension cables.
075: Cable length – 7.5 meters (24.6 feet).
13: Armored FluidLoc cable with a leak-proof connector protector.
05: Approved for CSA, ATEX, IECEx (safe for harsh areas).

Key Details

Brand: Bently Nevada
Model: 330130-075-13-05
Type: Armored Extension Cable
Length: 7.5m (24.6ft)
Weight: 0.618kg (armored) / 0.204kg (standard)
Capacitance: 69.9pF/m (21.3pF/ft) (typical)
DC Resistance:
Center: 1.65Ω ±0.25 (7.5m)
Outer: 0.49Ω ±0.10 (7.5m)
Power Needed: -17.5Vdc to -26Vdc (no barriers) / -23Vdc to -26Vdc (with barriers)
Output Resistance: 50Ω
Working Range: 2mm (80 mils) (works best 0.25mm to 2.3mm from target)
Temp: +18°C to +27°C (+64°F to +80°F)

Works With

3300-series 5mm proximity probes
3300 8mm proximity probes
3300 XL 8mm proximity probes

Install Tips

Use 0.2-1.5mm² (16-24 AWG) shielded triad cable.
Max wire length: 305m (1,000ft).
Skip silicone tape (included) if connections touch turbine oil – use the protector instead.

What’s Included

1x 7.5m armored 3300 XL extension cable
Silicone tape (optional for connectors)
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
