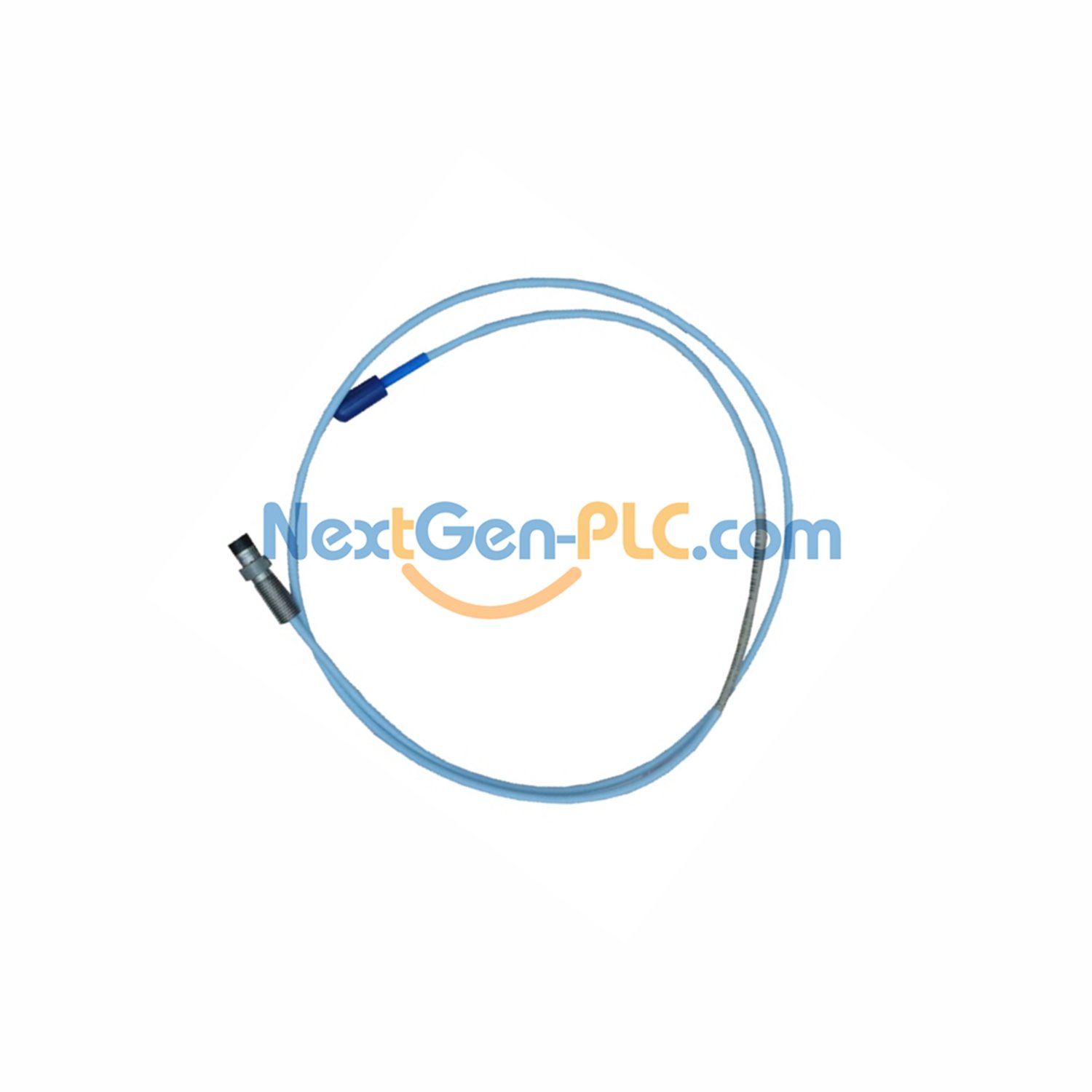

Bently Nevada 3300 XL 8 mm Proximity Probe | Model: 330103-00-16-10-02-05

Product Overview

A robust industrial sensor for vibration monitoring, designed with a durable PPS tip and stainless steel body. Certified for global safety, it performs reliably in harsh environments.

Model Suffix Breakdown

• 330103: Base 8 mm probe (M10×1 thread, unarmored)
• 00: Unthreaded length → 0 mm
• 16: Case length → 160 mm
• 10: Total length → 1.0 m (3.3 ft)
• 02: Connector → Miniature coaxial ClickLoc, standard cable
• 05: Approvals → CSA, ATEX, IECEx

Key Specifications

• Measurement range: 2 mm (80 mils) (0.25–2.3 mm / 10–90 mils)
• Recommended gap: -9 Vdc (~1.27 mm / 50 mils)
• DC resistance: 7.59 ± 0.50 Ω (1.0 m probe)
• Materials: PPS tip + AISI 303/304 stainless steel body
• Weight: 323 g/m (11.4 oz)
• Temperature range:
  • Standard: -52°C to +177°C (-62°F to +350°F)
  • Extended tip: -52°C to +218°C (-62°F to +425°F)
  • Extended cable/connector: -51°C to +260°C (-60°F to +500°F)
• Humidity resistance: <3% ASF change at 93% humidity (56 days max)

Installation Guide

• Thread: M10×1 (max 15 mm engagement)
• Wiring: 0.2–1.5 mm² (16–24 AWG) shielded triad cable; max 305 m (1,000 ft) to monitor
• Seal: Viton® O-ring (not pre-tested; contact Bently for custom tests)

Certifications

• Intrinsically safe (ia): Class I Zone 0; Class 1 Groups A-D, II E-G, III
• Nonincendive (nA/ec): Class I Zone 2; Class 1 Division 2 Groups A-D
• Additional approvals: CSA, ATEX, IECEx

Package Contents

• Probe body (160 mm case)
• Miniature coaxial ClickLoc connector (standard cable)
• User manual

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
